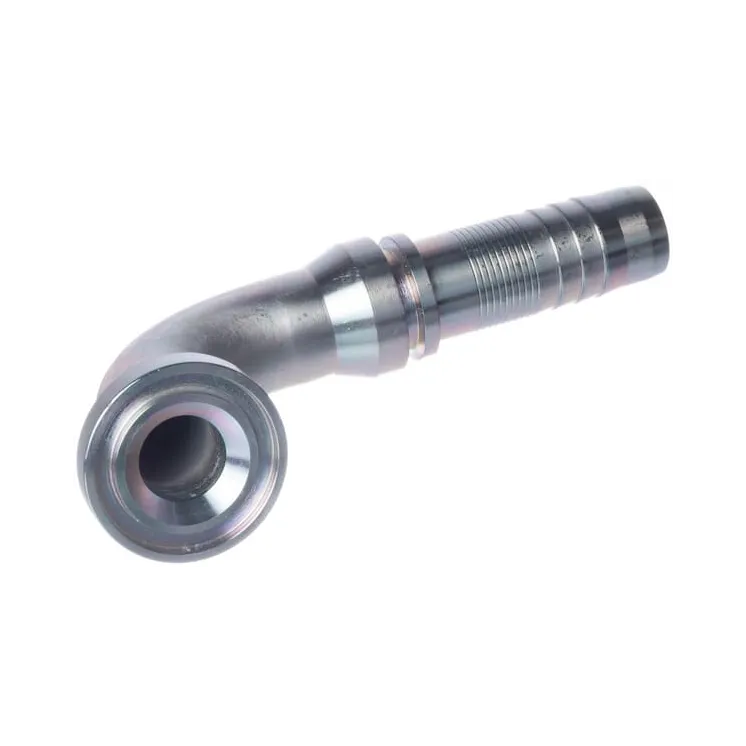

Insert NS-DN25 with flange 44.5 SFLNS251690

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€34.68
Tax included
On Request
Insert NS-DN25 with flange 44.5 SFLNS251690 Alfagomma
ON REQUEST

90010

Part number
SFLNS251690
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Angle
90 °
DConnection 2, centre to end distance
85 mm
Connection 2, diameter
1 Inch
Connection 2, diameter
25 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection centre to insert distance
87 mm
FDConnection no 1 diameter
44.5 mm
Connection no 1 type - male/female
Male
Connection no 1 type
Flange
Flange standard pressure series
3000
Max working pressure
345 BAR
Original number equivalent
H1343390-161600
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    SFLNS251690
