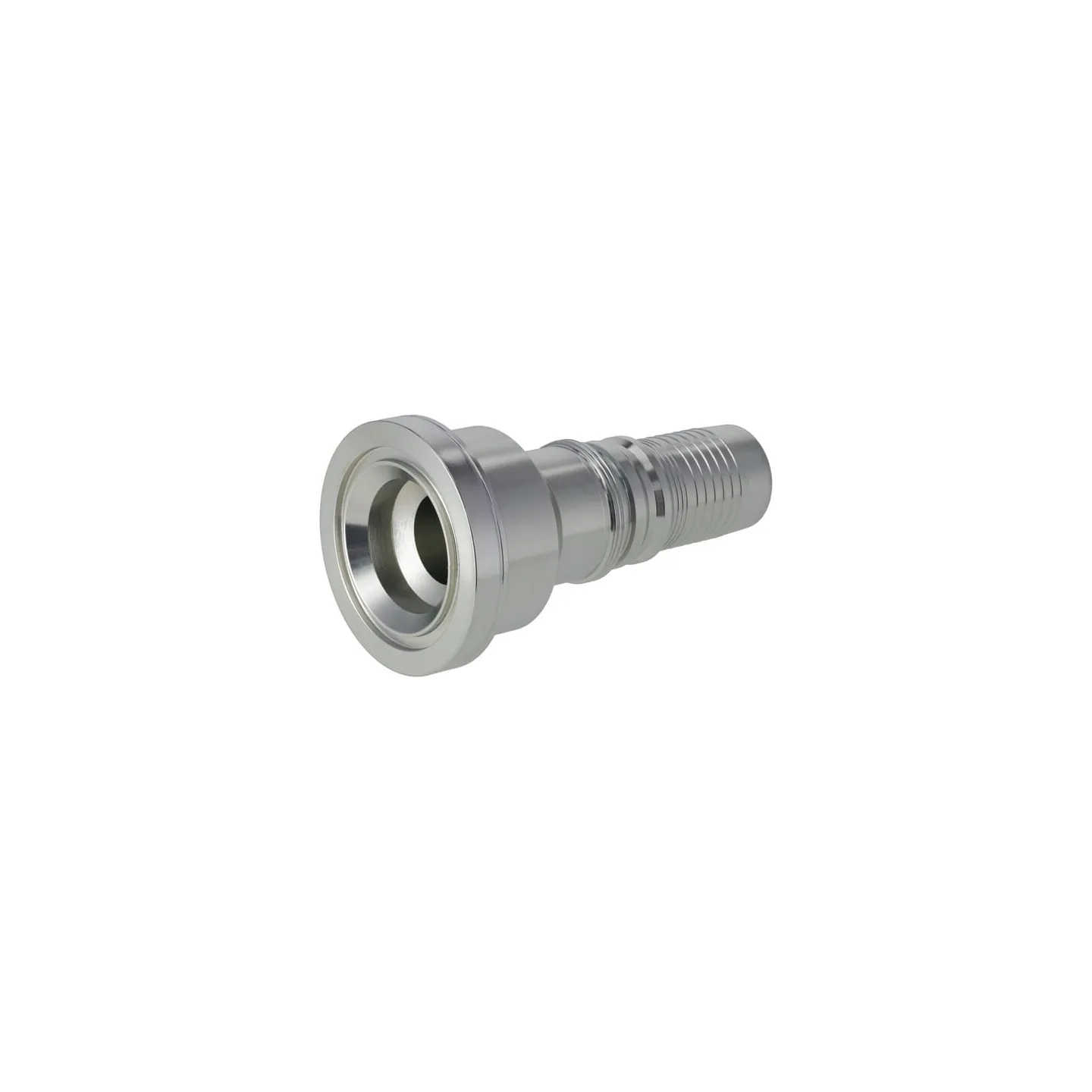

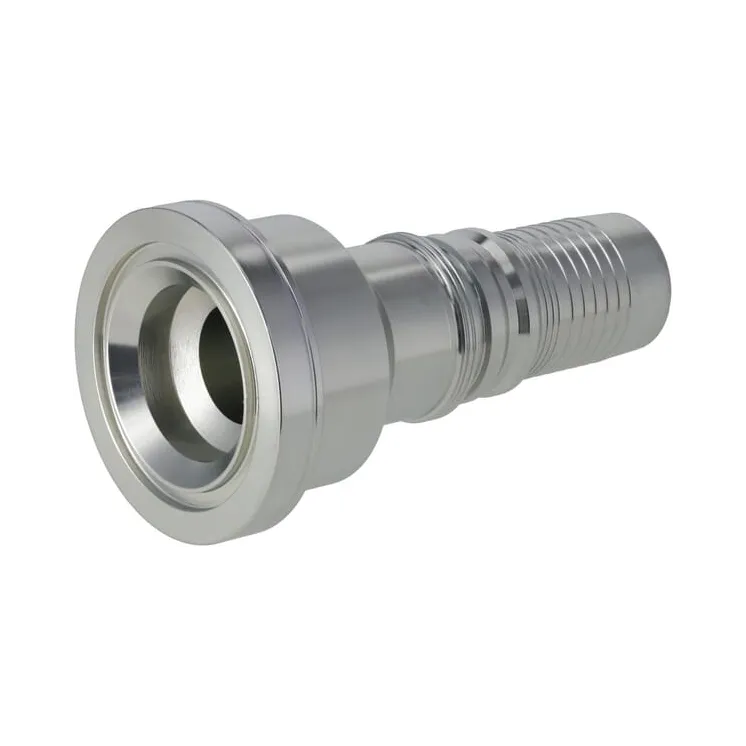

Swage coupling 4SH-DN40 with flange ø79,4mm SFSH4032G2

Name: Swage coupling 4SH-DN40 with flange ø79,4mm SFSH4032G2
Brand: Alfagomma
SKU: SFSH4032G2
Price: 65.15 EUR
Availability: InStock

Payment options

€65.15

Tax included

4-5 Working days

Swage coupling 4SH-DN40 with flange ø79,4mm SFSH4032G2 Alfagomma

IN WAREHOUSE

ID: 90038

Description

Part number	SFSH4032G2
EAN
Unit	Each
Pros	Press-fitting with heavy-duty anti-slip protection
Product details	Alfagomma Evolution G2 Anchoring by means of interlock system OVP-ring or O-ring seal Heavy duty machines with high operating and peak pressures Hydrostatic drives Series H17 Always consult the most up to date press tables, see downloads at the bottom of each web page
Benefits	Press-fitting with heavy-duty anti-slip protection
Includes	Insert Without OVP-ring or O-ring
Surface treatment	Zinc-plated White passivated
Connection 2, diameter	1-1/2 Inch
Connection 2, diameter	38 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 diameter	1-1/2 Inch
Connection no 1 diameter	38 mm
CConnection no 1 length	80.5 mm
Connection no 1 type code	SFS
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
Flange standard pressure series	6000
ISO standard	6162
Material	Steel
Pipe diameter	40 mm
Pipe diameter	1-1/2 Inch
Shape	Straight - 2 connection sides
