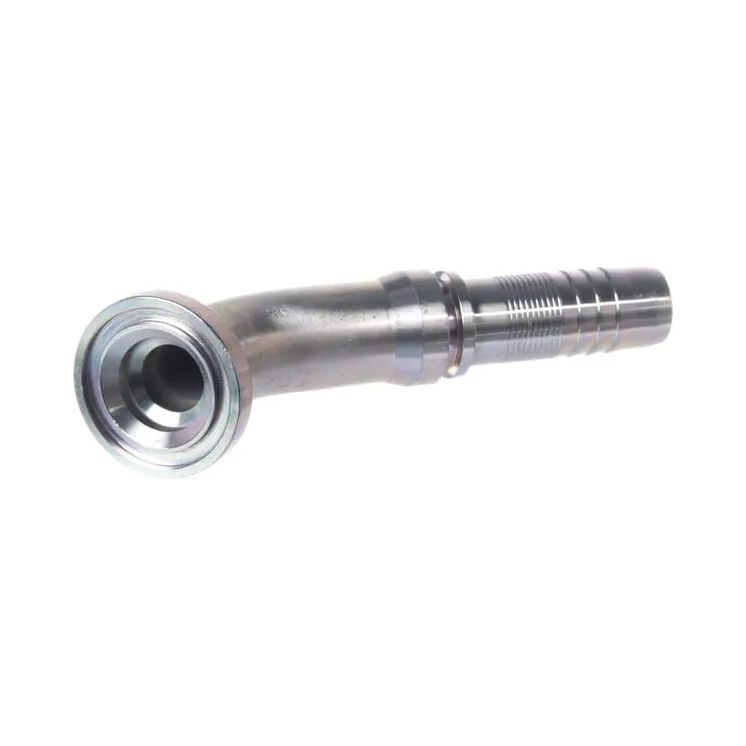

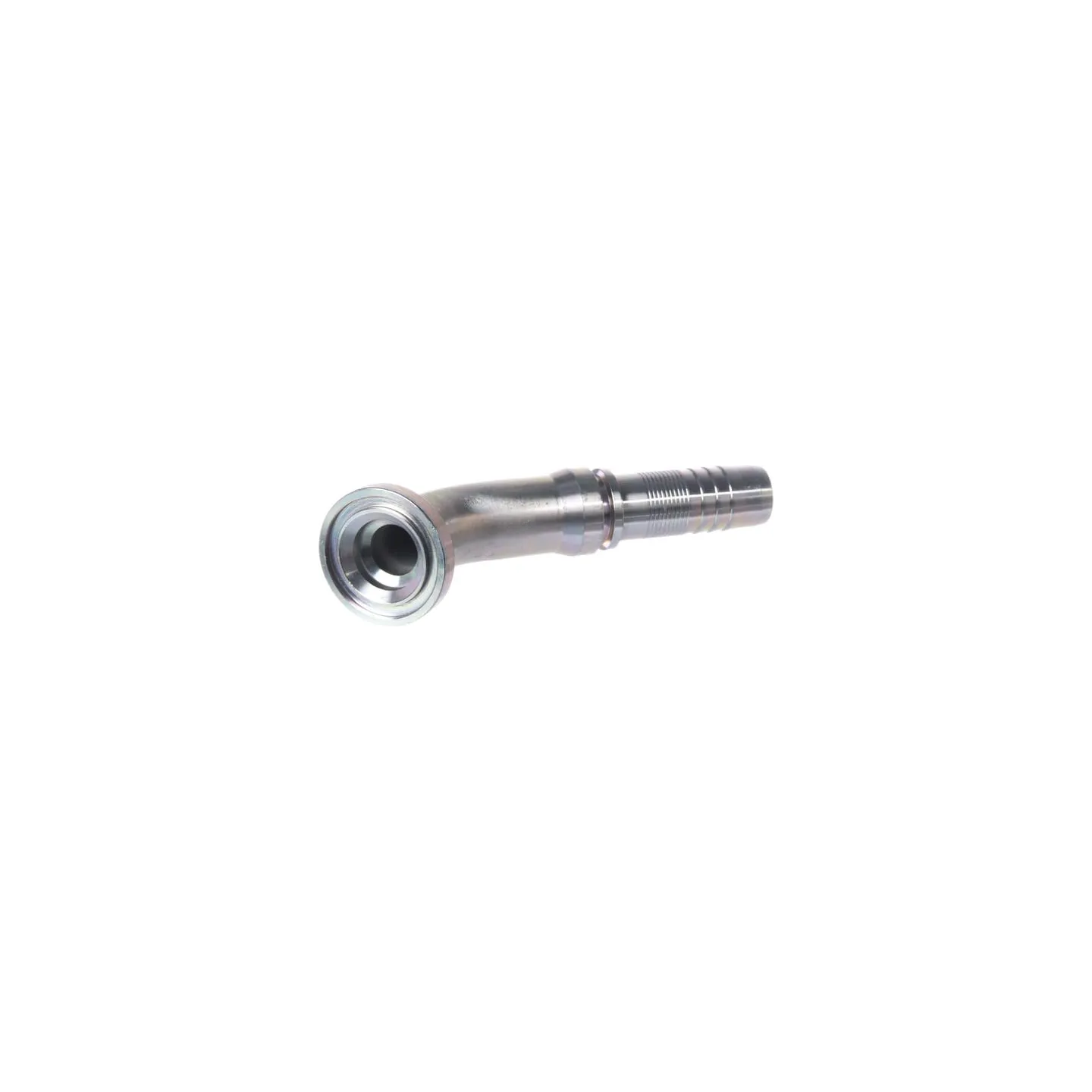

Insert NS-DN25 with flange 50.8 m SFLNS252045 Alfagomma
ON REQUEST

90046

Part number
SFLNS252045
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Angle
45 °
Connection 2, diameter
1 Inch
Connection 2, diameter
25 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
Connection no 1 center to end distance
88.9 mm
Connection no 1 diameter
1 Inch
DConnection no 1 length
32.5 mm
Connection no 1 type - male/female
Male
Connection no 1 type
Flange
FDFlange outside diameter
50.8 mm
Flange standard pressure series
3000
Max working pressure
345 BAR
Original number equivalent
H1343340-162000
Shape
Elbow - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    SFLNS252045
  • Condition
    New
