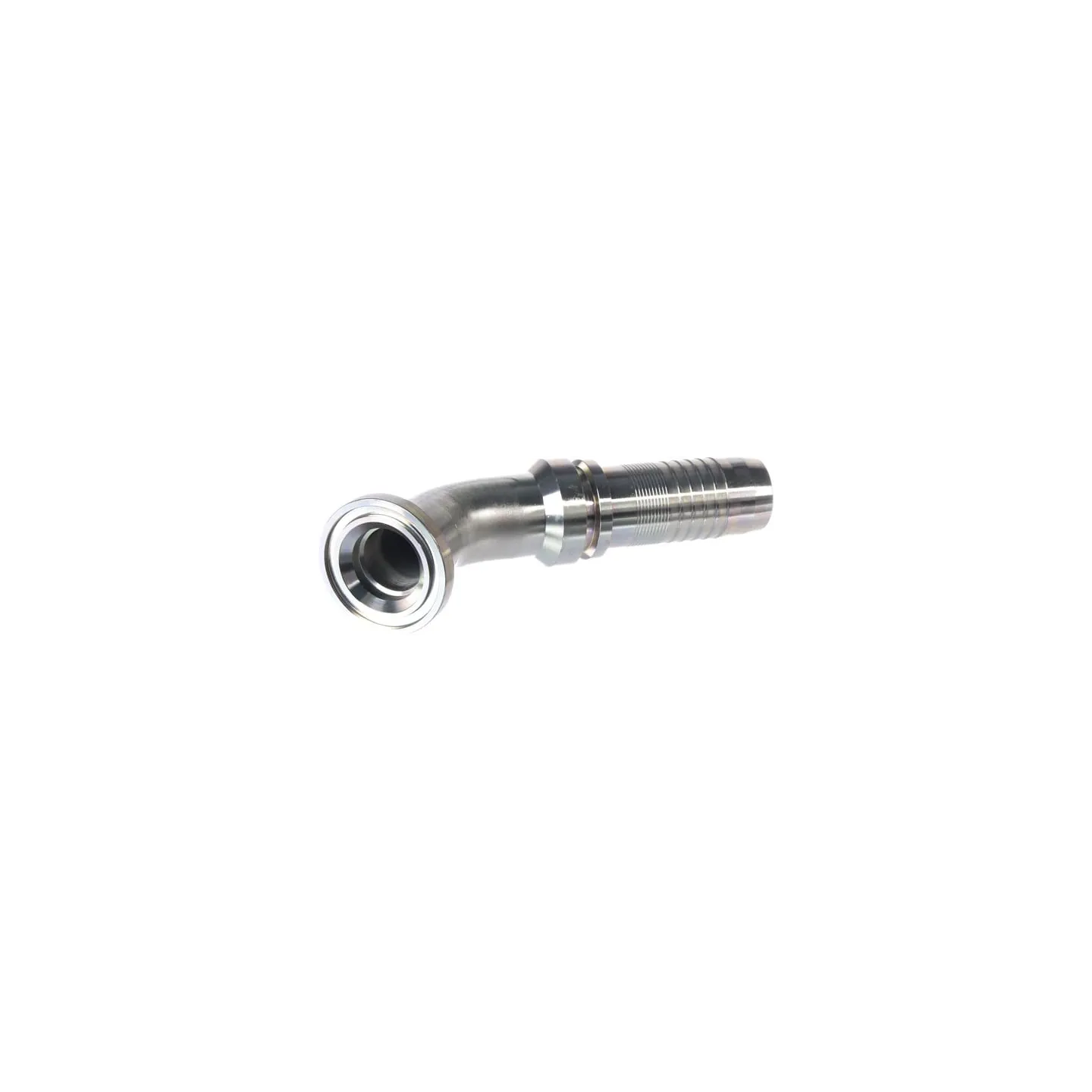

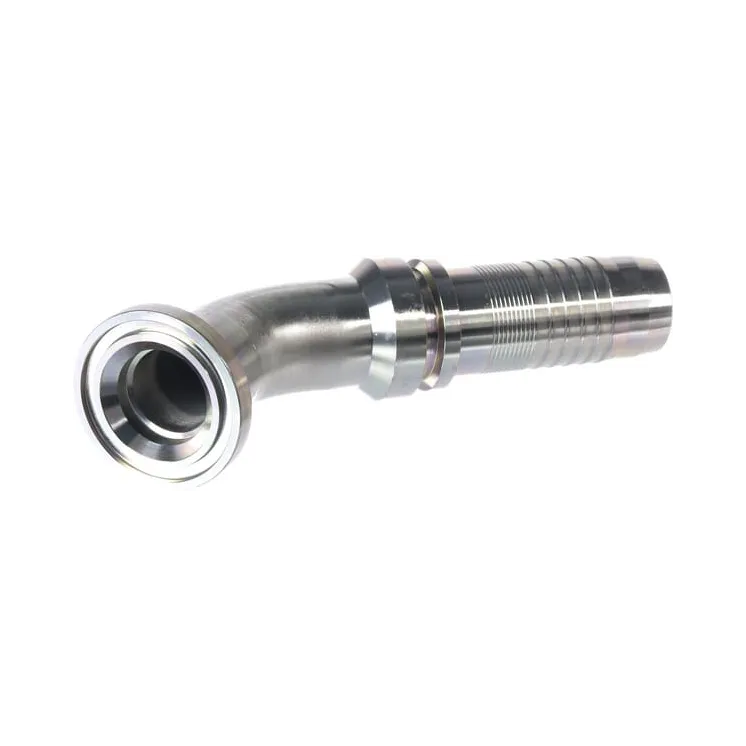

Insert NS-DN40 with flange 60.3 m SFLNS402445

Name: Insert NS-DN40 with flange 60.3 m SFLNS402445
Brand: Alfagomma
SKU: SFLNS402445
Price: 94.22 EUR
Availability: InStock

Payment options

€94.22

Tax included

4-5 Working days

Insert NS-DN40 with flange 60.3 m SFLNS402445 Alfagomma

IN WAREHOUSE

ID: 90047

Description

Part number	SFLNS402445
EAN
Unit	Each
Long description	Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros	Press fittings help ensure faster and easier hose assembly and help to save costs. Processing produces less dirt, smell and waste. No special tool needed to skive the hose.
Product details	The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses. With these press fittings, there is no need to skive the inner and outer casing.
Angle	45 °
Connection 2, diameter	1-1/2 Inch
Connection 2, diameter	40 mm
Connection 2, type	Hose end
Connection 2, type - male/female	Male
Connection no 1 center to end distance	99.8 mm
Connection no 1 diameter	1-1/2 Inch
DConnection no 1 length	43 mm
Connection no 1 type - male/female	Male
Connection no 1 type	Flange
FDFlange outside diameter	60.3 mm
Flange standard pressure series	3000
Max working pressure	345 BAR
Original number equivalent	H1343340-242400
Shape	Elbow - 2 connection sides
