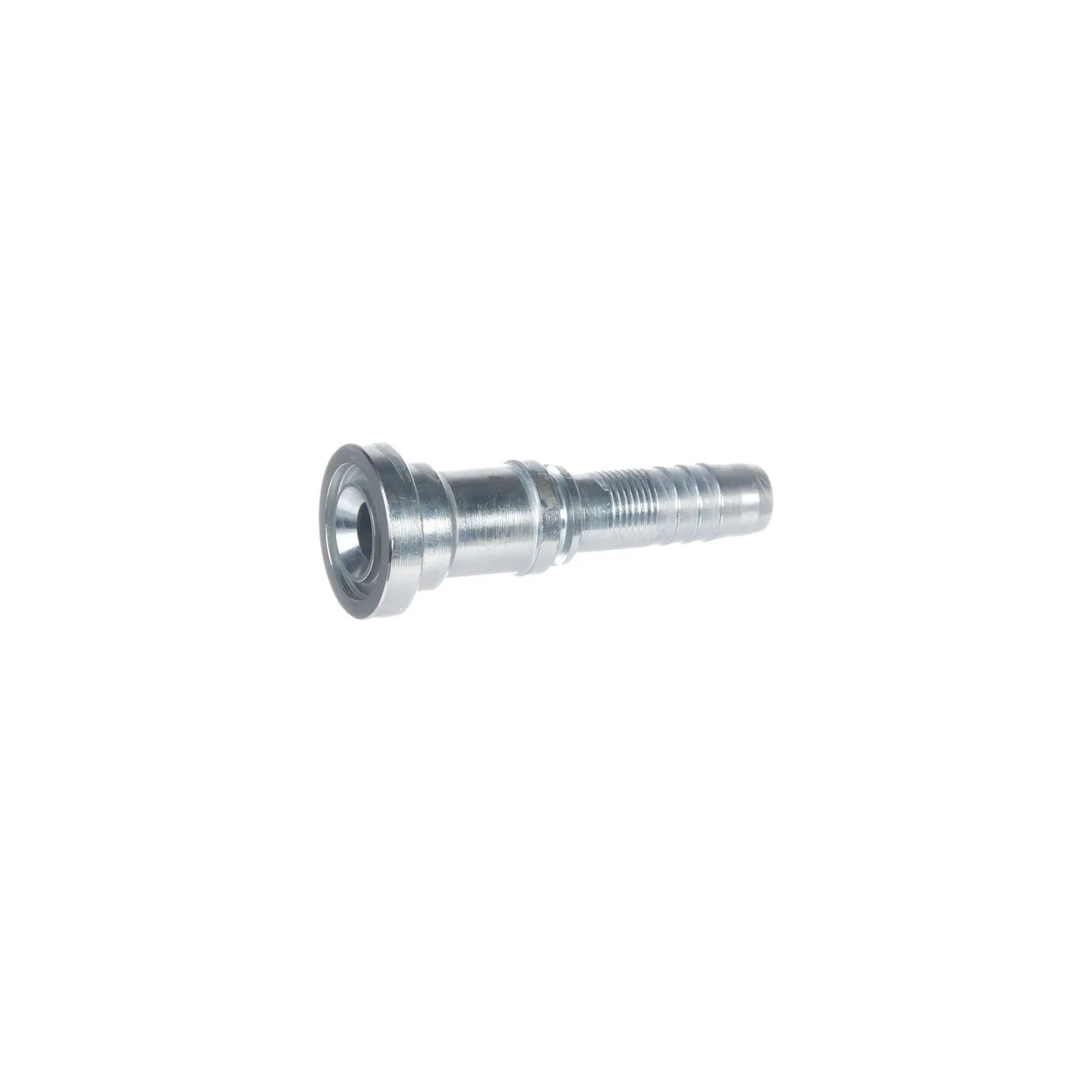

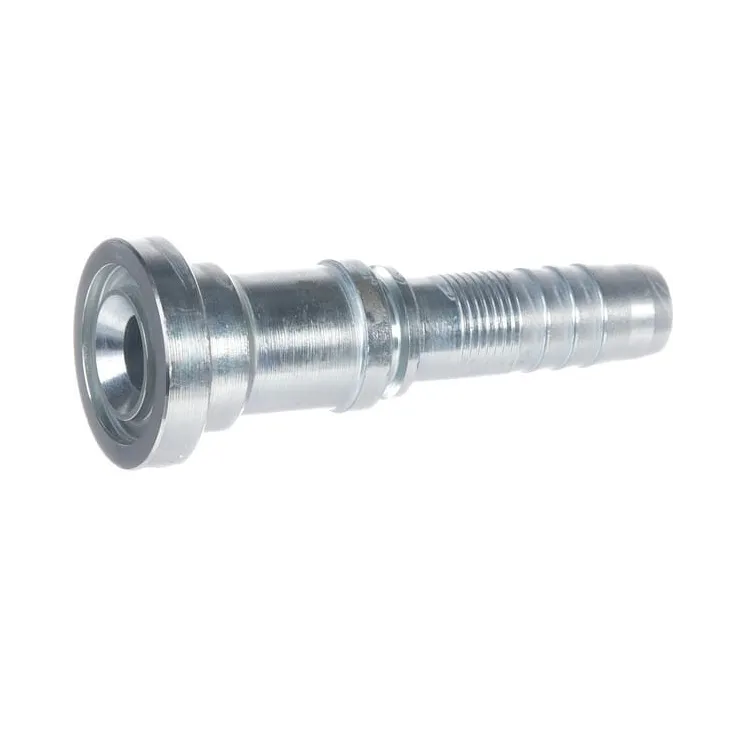

Insert NS-DN20 with flange 41.3 SFSNS2012 Alfagomma
search
  • Insert NS-DN20 with flange 41.3 SFSNS2012 Alfagomma

Insert NS-DN20 with flange 41.3 SFSNS2012

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€17.28
Tax included
4-5 Working days
Insert NS-DN20 with flange 41.3 SFSNS2012 Alfagomma
IN WAREHOUSE

90065

Part number
SFSNS2012
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Connection 2, diameter
3/4 Inch
Connection 2, diameter
20 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection no 1 center to end distance
53.5 mm
Connection no 1 diameter
3/4 Inch
Connection no 1 type - male/female
Male
Connection no 1 type
Flange
FDFlange outside diameter
41.3 mm
Flange standard pressure series
6000
Max working pressure
415 BAR
Shape
Straight - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    SFSNS2012
  • In stock
    4 Items
  • Condition
    New
