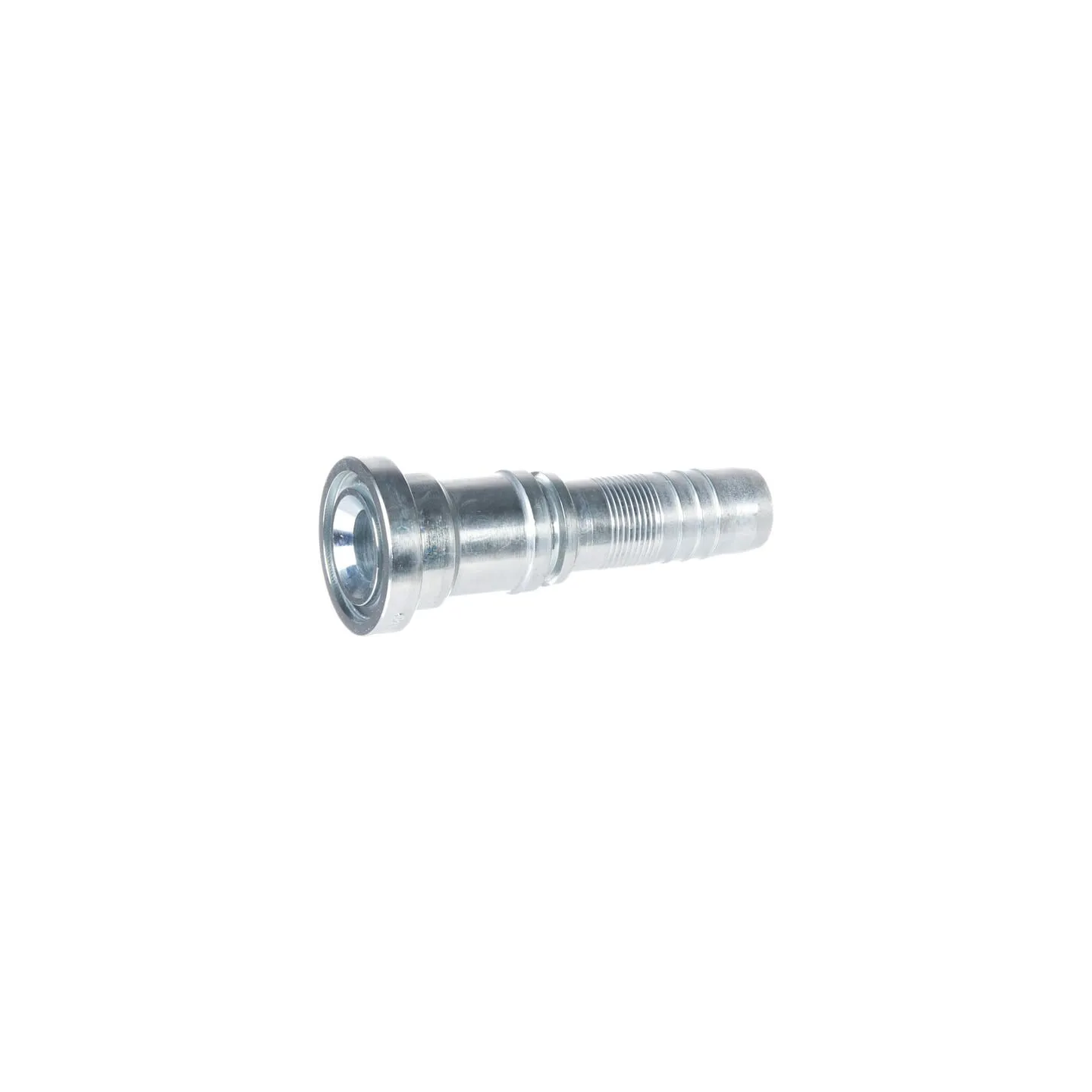

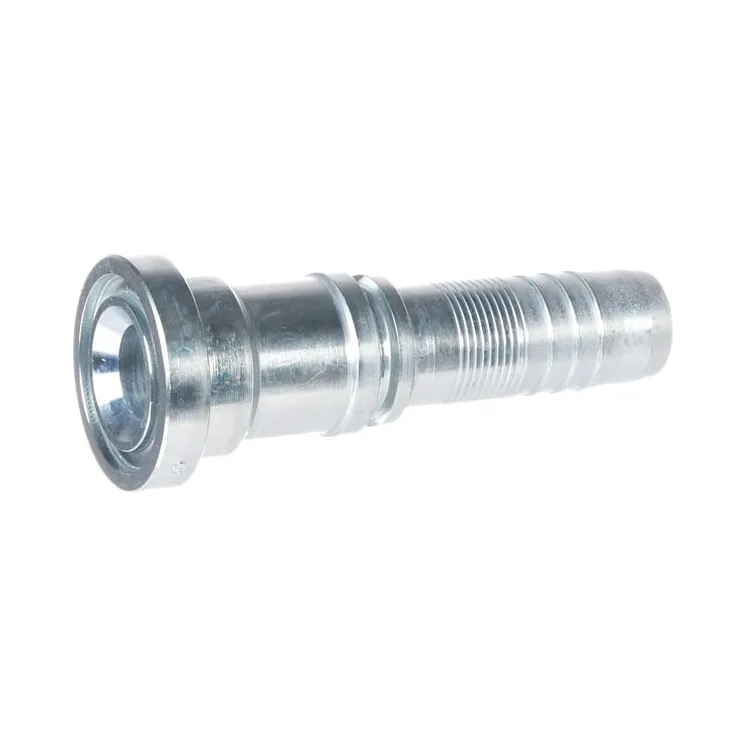

Insert NS-DN25 with flange 47.6 SFSNS2516 Alfagomma
search
  • Insert NS-DN25 with flange 47.6 SFSNS2516 Alfagomma

Insert NS-DN25 with flange 47.6 SFSNS2516

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€25.66
Tax included
On Request
Insert NS-DN25 with flange 47.6 SFSNS2516 Alfagomma
ON REQUEST

90066

Part number
SFSNS2516
EAN
Unit
Each
Long description
Alfagomma No-Skive press fittings (type 'NS') are designed for use in combination with Alfabiotech high-pressure hoses.
Pros
  • Press fittings help ensure faster and easier hose assembly and help to save costs.
  • Processing produces less dirt, smell and waste.
  • No special tool needed to skive the hose.
Product details
  • The Alfagomma No-Skive press fitting is used in combination with Alfabiotech high-pressure hoses.
  • With these press fittings, there is no need to skive the inner and outer casing.
Connection 2, diameter
1 Inch
Connection 2, diameter
25 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection no 1 center to end distance
58.5 mm
Connection no 1 diameter
1 Inch
Connection no 1 type - male/female
Male
Connection no 1 type
Flange
FDFlange outside diameter
47.6 mm
Flange standard pressure series
6000
Max working pressure
415 BAR
Shape
Straight - 2 connection sides
  • Brand
    Alfagomma
  • Reference
    SFSNS2516
  • Condition
    New
