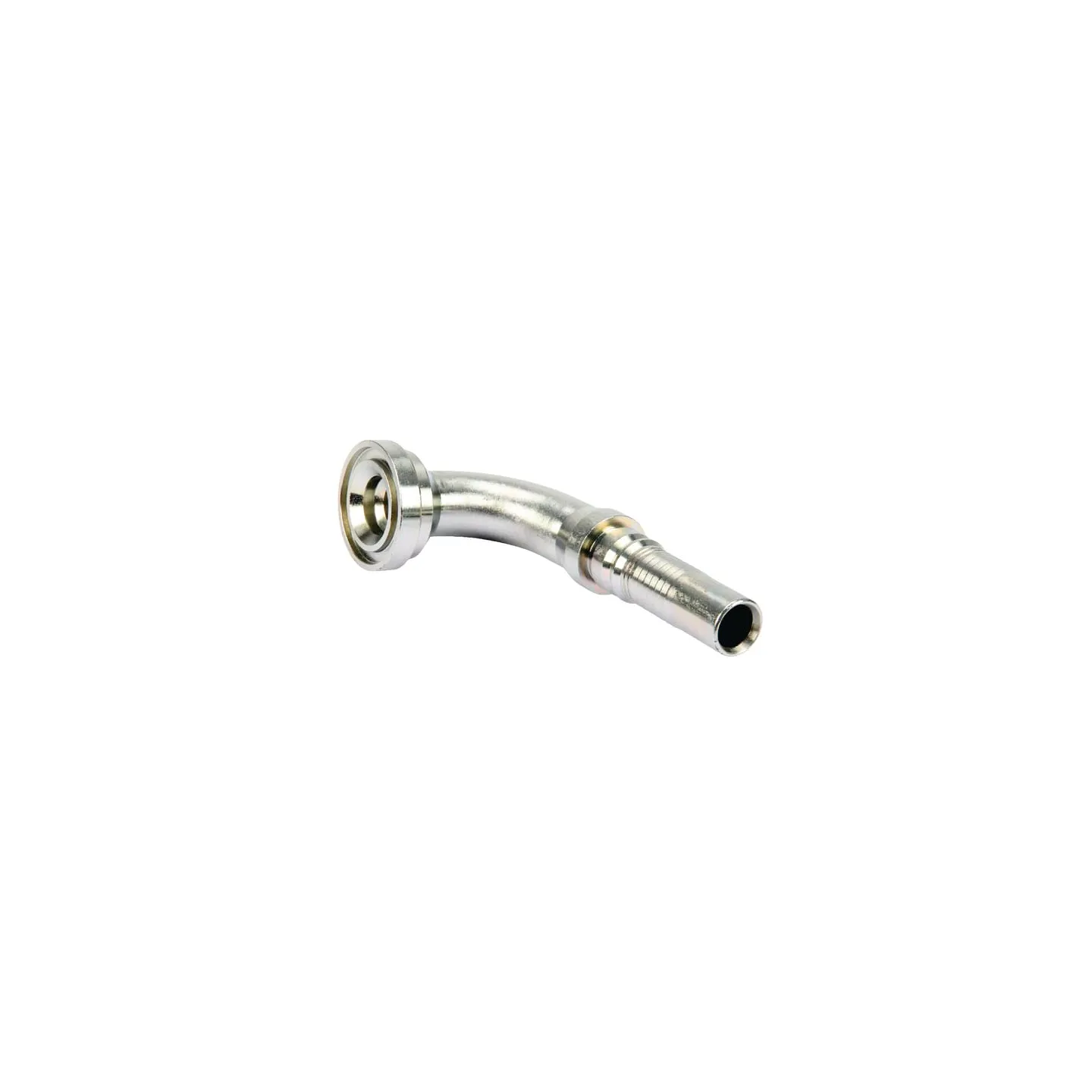

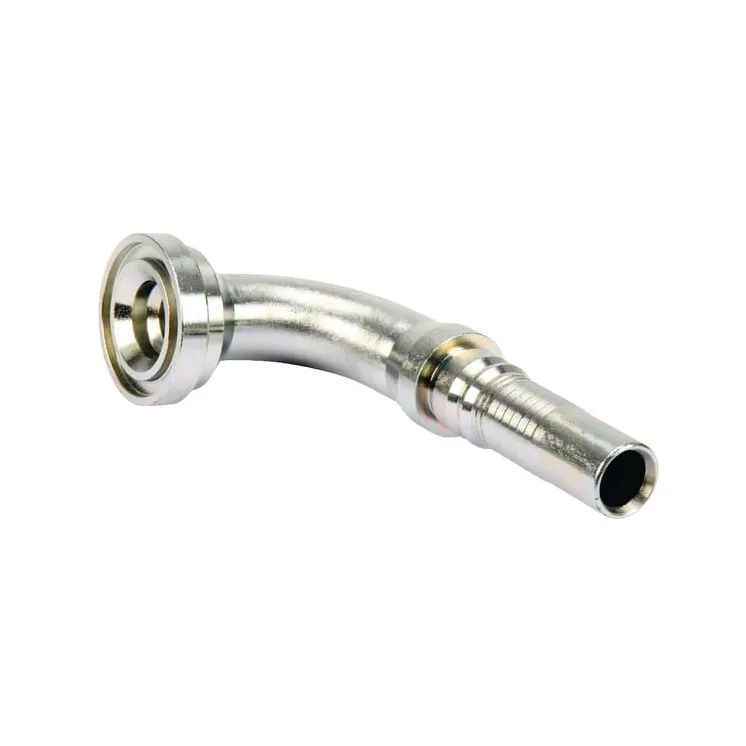

Swage coupling 4SH-DN20 with flange ø41,3mm 90° SFSH201290G2 Alfagomma
search
  • Swage coupling 4SH-DN20 with flange ø41,3mm 90° SFSH201290G2 Alfagomma

Swage coupling 4SH-DN20 with flange ø41,3mm 90° SFSH201290G2

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€24.64
Tax included
4-5 Working days
Swage coupling 4SH-DN20 with flange ø41,3mm 90° SFSH201290G2 Alfagomma
IN WAREHOUSE

90076

  • Brand
    Alfagomma
  • Reference
    SFSH201290G2
  • In stock
    5 Items
  • Condition
    New
Security policy
100% Secure payments
Delivery policy
Insured worldwide delivery
Return policy
30 days easy return

Comments (0)

No customer reviews for the moment.
Part number
SFSH201290G2
EAN
Unit
Each
Pros
Press-fitting with heavy-duty anti-slip protection
Product details
  • Alfagomma Evolution G2
  • Anchoring by means of interlock system
  • OVP-ring or O-ring seal
  • Heavy duty machines with high operating and peak pressures
  • Hydrostatic drives
  • Series H17
  • Always consult the most up to date press tables, see downloads at the bottom of each web page
Benefits
Press-fitting with heavy-duty anti-slip protection
Includes
  • Insert
  • Without OVP-ring or O-ring
Surface treatment
  • Zinc-plated
  • White passivated
Angle
90 °
HConnection 2, centre to end distance
64 mm
Connection 2, diameter
3/4 Inch
Connection 2, diameter
19 mm
Connection 2, length
64 mm
Connection 2, type
Hose end
Connection 2, type - male/female
Male
CConnection centre to insert distance
61.2 mm
Connection no 1 diameter
3/4 Inch
DConnection no 1 diameter
20 mm
Connection no 1 length
61.2 mm
Connection no 1 type code
SFS
Connection no 1 type - male/female
Male
Connection no 1 type
Flange
Flange outside diameter
41.3 mm
Flange standard pressure series
6000
ISO standard
6162
Material
Steel
Pipe diameter
20 mm
Pipe diameter
3/4 Inch
Shape
Elbow - 2 connection sides
