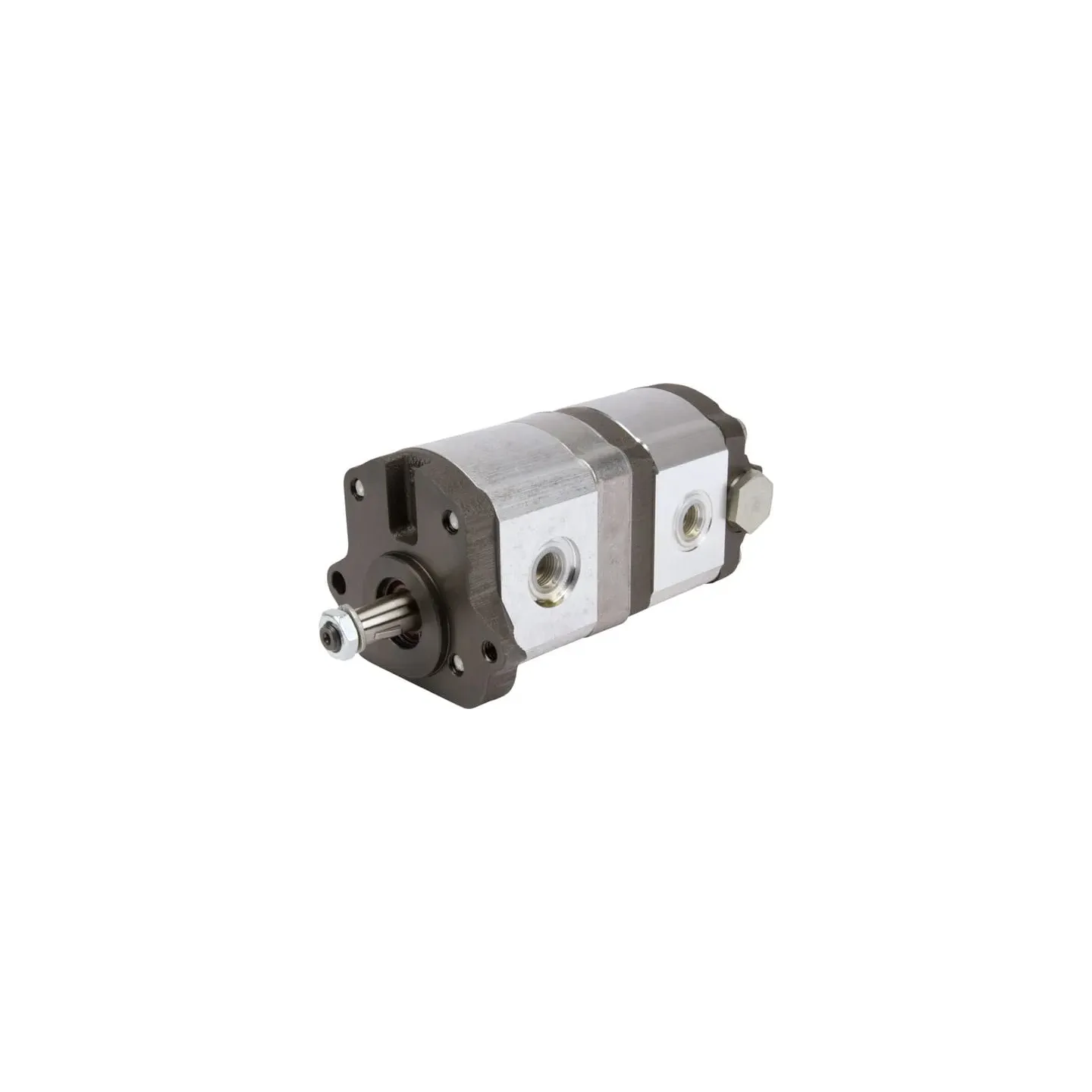

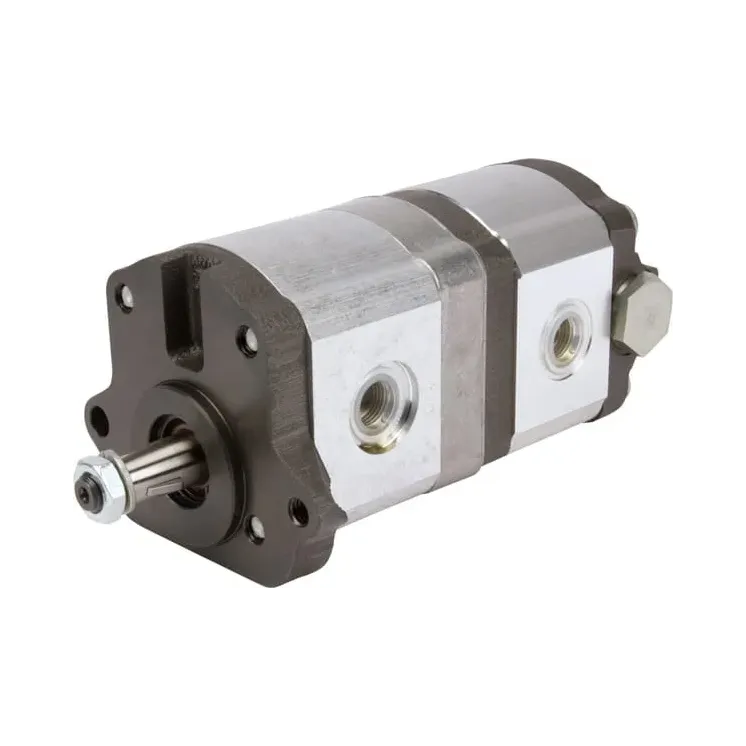

Gear pump AZPFF-10-010/007LHX50XXKX-S0215 0510465343
search
  • Gear pump AZPFF-10-010/007LHX50XXKX-S0215 0510465343

Gear pump AZPFF-10-010/007LHX50XXKX-S0215 0510465343

Payment options
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
€651.77
Tax included

7113

Part number
0510465343
EAN
Unit
Each
Flange type norm
German
Flange code
n/a
Number of mounting holes
4
Shaft type
Tapered
Shaft cone size code
1:8
Displacement
  • 10 cm³/rev
  • 7 cm³/rev
Sealing type
n/a
Max. continous working pressure
  • 250 BAR
  • 250 BAR
Prefered rotation direction
Counter-clockwise (CCW)
Main port thread type
Metric
Main port thread diameter
M18
Main port thread pitch
1.50 mm
Pressure port thread type
Metric
Pressure port thread diameter
M18
Pressure port thread pitch
1.50 mm
Port position
Side
Housing material
Aluminium
Flange and back cover material
Steel
Pressure port bolts circle diameter
40 mm
Mounting diameter
52 mm
Original number equivalent
3534387M91
  • Brand
  • Reference
    0510465343
