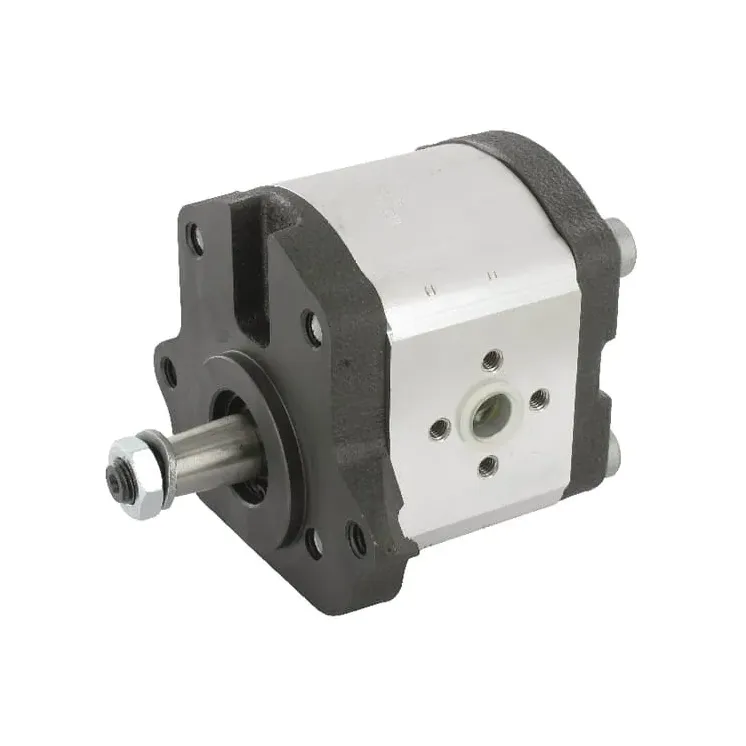

| Part number | 0510525339 | |
|---|---|---|
| EAN | ||
| Unit | Each | |
| Flange type norm | n/a | |
| Flange code | n/a | |
| Shaft type | Tapered | |
| Shaft cone size code | 1:8 | |
| Displacement | 11 cm³/rev | |
| Sealing type | Standard | |
| Max. continous working pressure | 250 BAR | |
| Max intermittend working pressure | 280 BAR | |
| Max pressure peak | 300 BAR | |
| Max rotation speed | 3000 r/min | |
| Min rotation speed | 1200 r/min | |
| Prefered rotation direction | Counter-clockwise (CCW) | |
| Port position | Side | |
| Housing material | Aluminium | |
| Flange and back cover material | Steel | |
| Pressure port bolts circle diameter | 30.2 mm | |
| Suction port bolts circle diameter | 40 mm | |
| Suitable for machine/vehicle brand |
| |
| Mounting diameter | 52.34 mm | |
| Original number equivalent |
|
