| Part number | 40647271 | |
|---|---|---|
| EAN | 8026834082434 | |
| Unit | Each | |

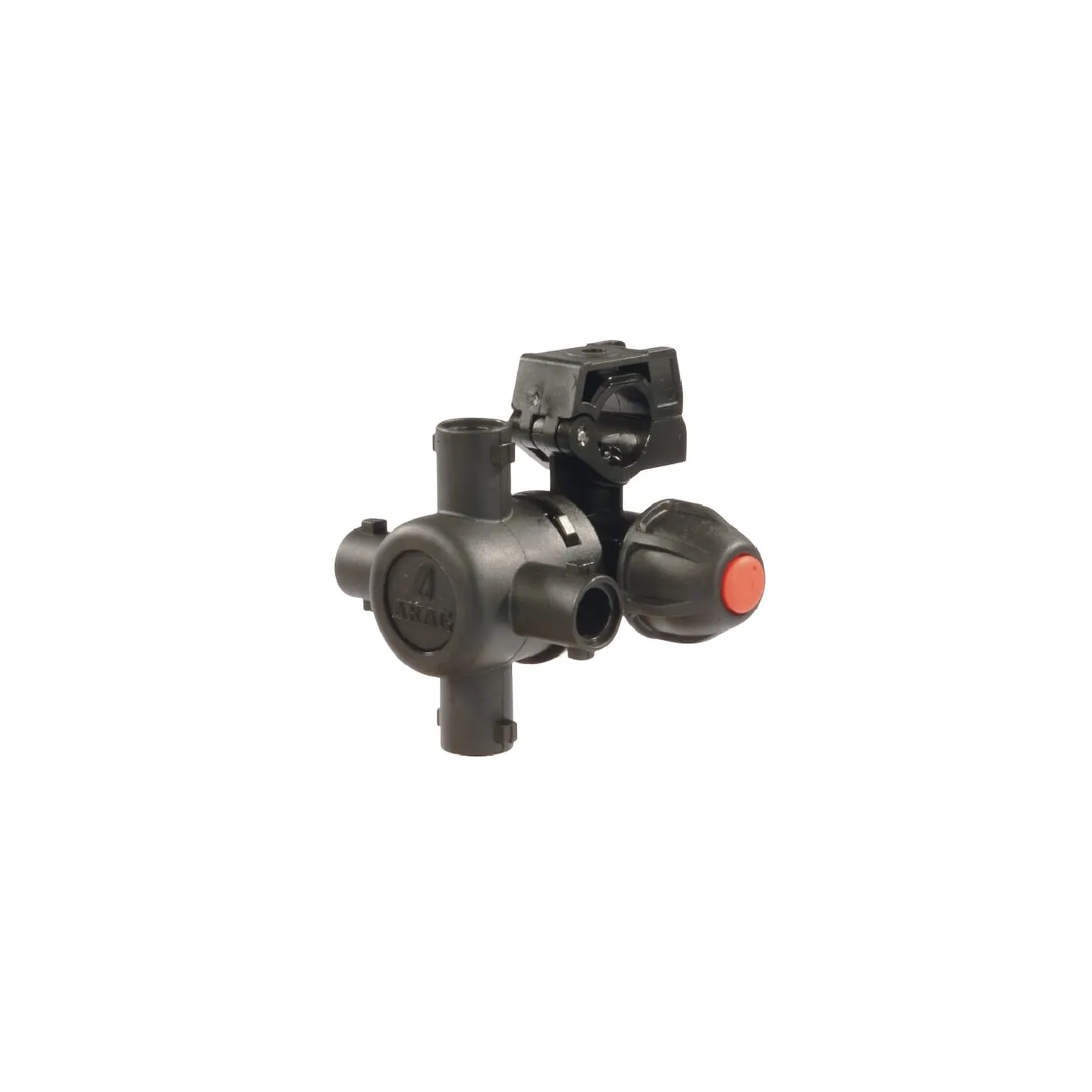

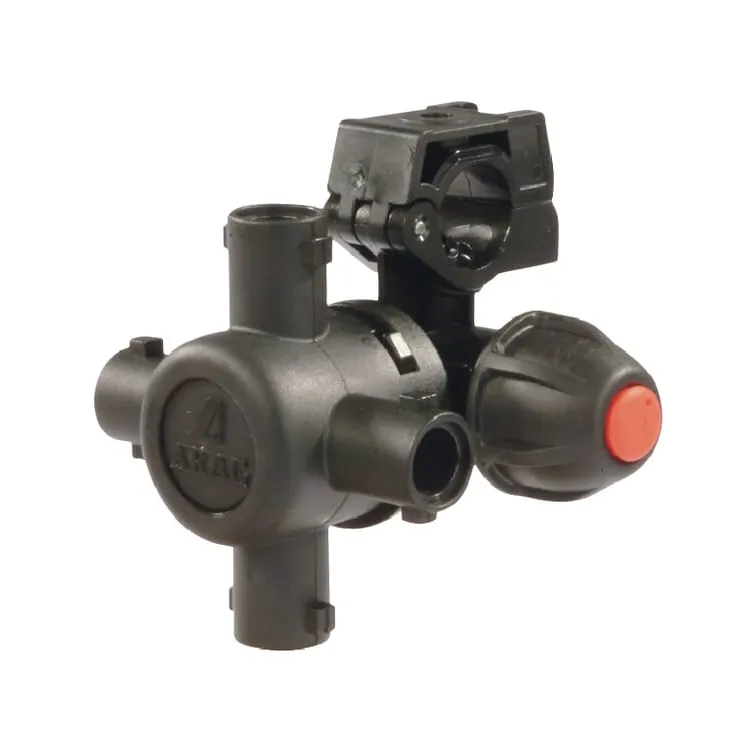

| Long description | Arag tube nozzle holder assembly with 4 nozzle holders and anti-drip valve | |
| Connection type | Tube clamp | |
| Number of nozzle connections | 4 | |
| Max working pressure | 20 BAR | |
| DTube diameter | 20 mm | |
| FTube connection bore diameter | 10 mm | |
| Nozzle mounting type | Bayonet | |
| Housing material | Polypropylene | |
| Membrane material | Ethylene propylene diene monomer [EPDM] | |
| Spray control type | Manual spring | |
| Opening pressure | 0.5 BAR | |
| Total height | 89 mm | |
| CCentre to top distance | 53.5 mm | |
| ATube centre to nozzle tip distance | 35 |
