| Part number | 4064257 | |
|---|---|---|
| EAN | 8026834082137 | |
| Unit | Each | |

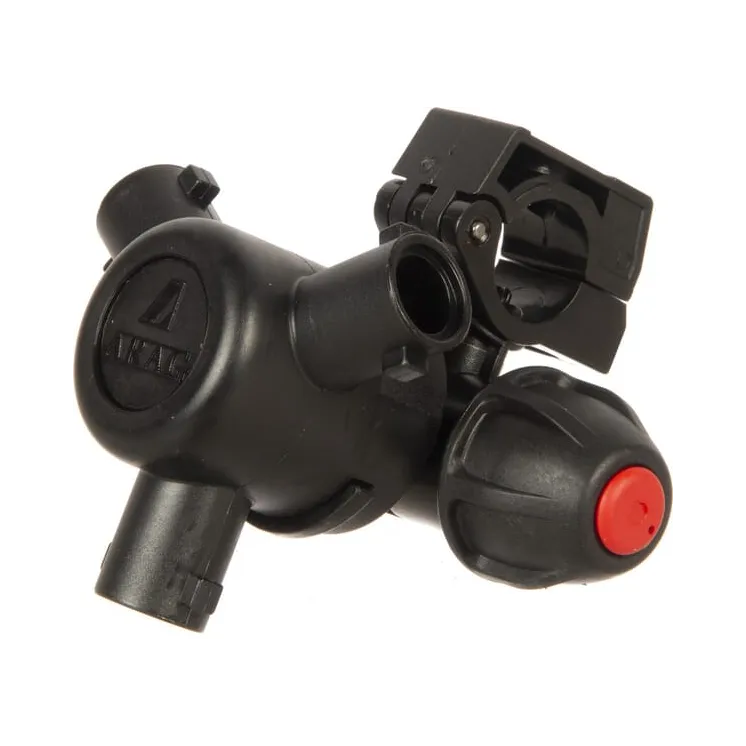

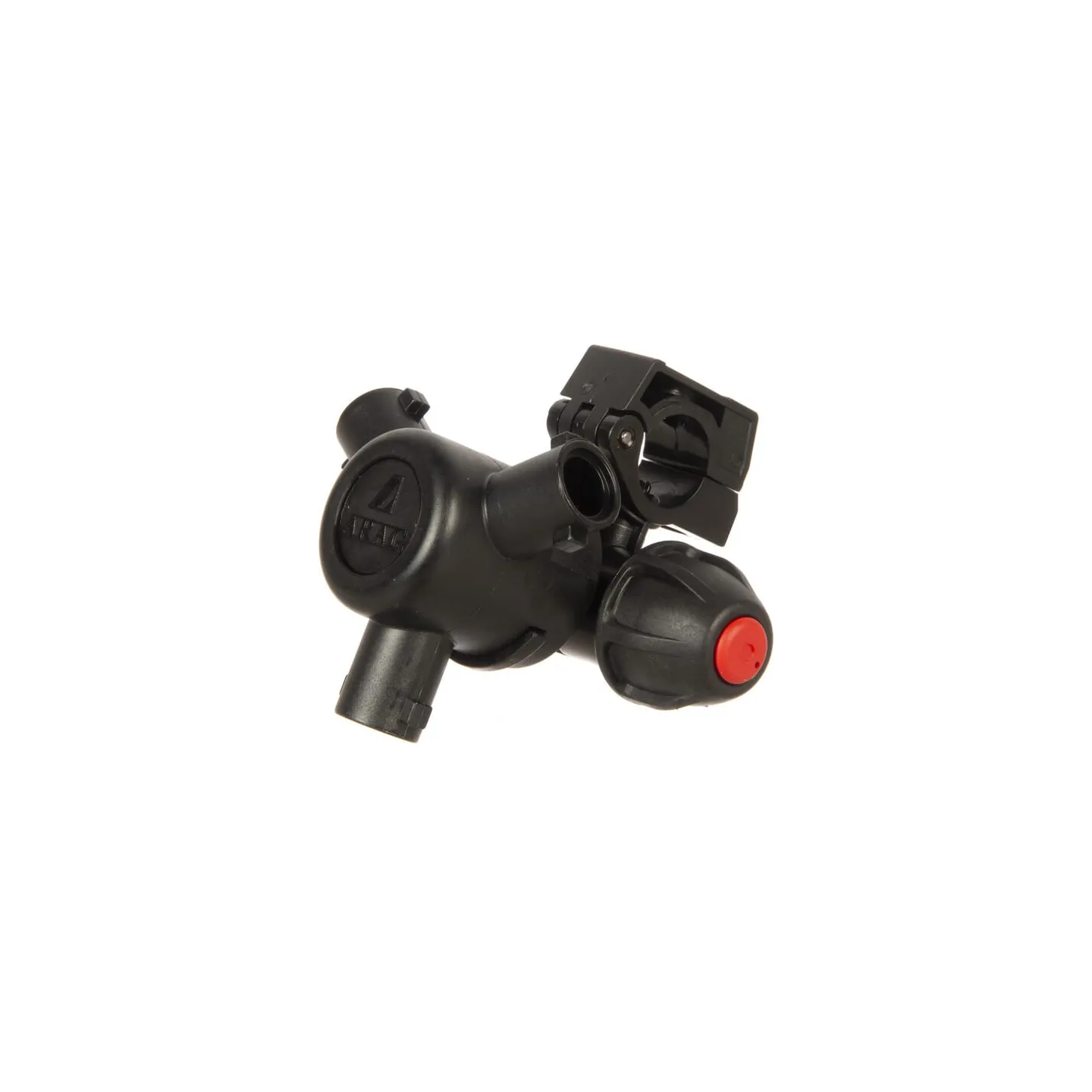

| Long description | Arag tube nozzle holder assembly with 3 nozzle holders and anti-drip valve (series 4064) | |
| Product details |
| |
| Connection type | Tube clamp | |
| Number of nozzle connections | 3 | |
| Max working pressure | 20 BAR | |
| DTube diameter | 26.4 mm | |
| DTube diameter | 3/4 Inch | |
| FTube connection bore diameter | 10 mm | |
| Nozzle mounting type | Bayonet | |
| Housing material | Polypropylene | |
| Membrane material | Ethylene propylene diene monomer [EPDM] | |
| Spray control type | Manual spring | |
| Opening pressure | 0.5 BAR | |
| Total height | 91.5 mm | |
| CCentre to top distance | 62 mm | |
| ATube centre to nozzle tip distance | 39.5 |
