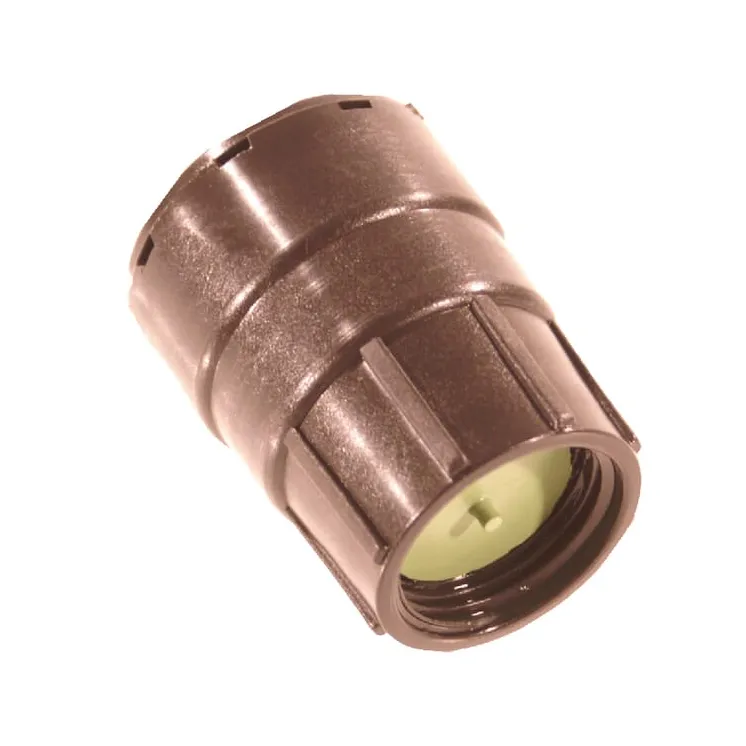

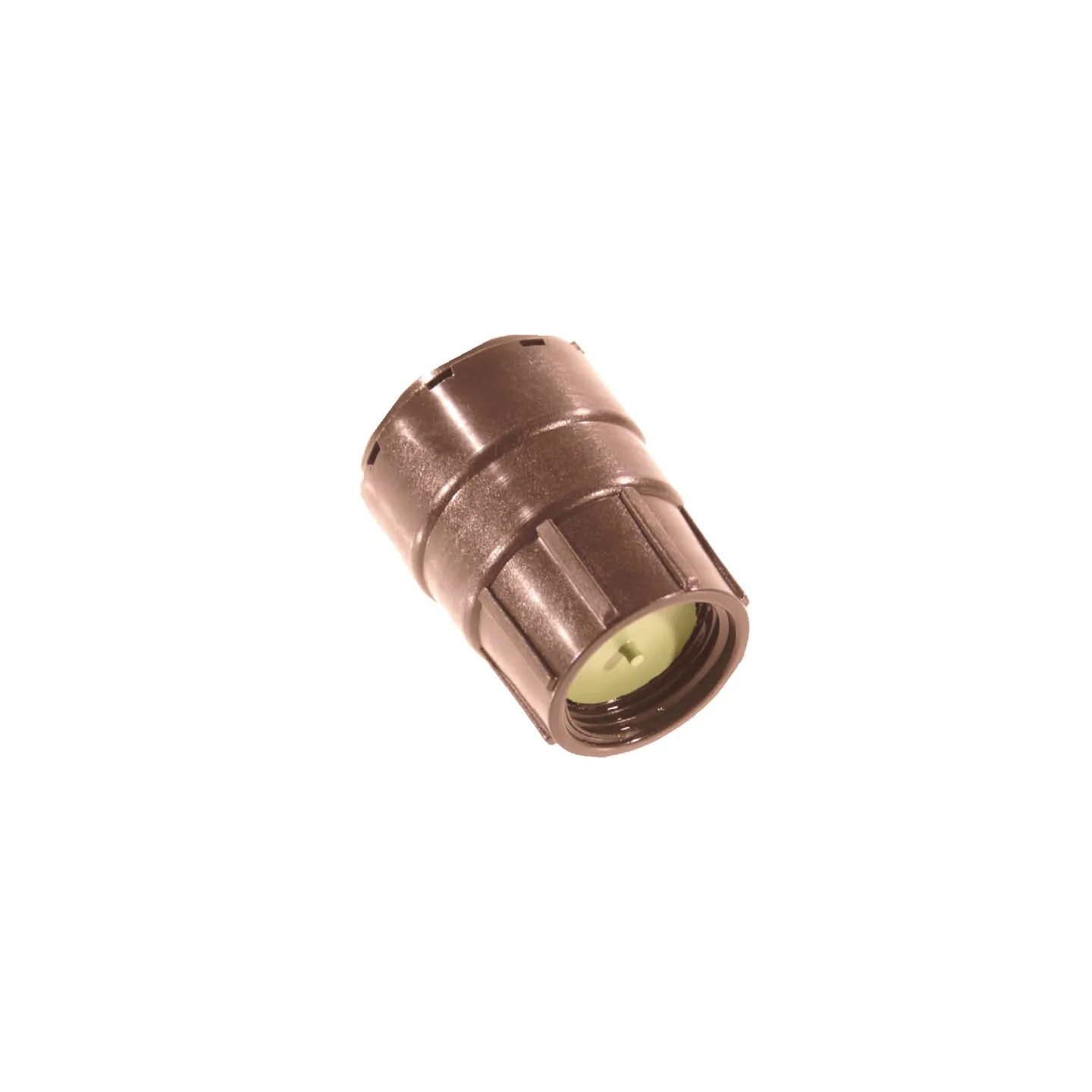

Plūsmas pārtraukšanas gaisa vārsts Viton 1/8 424510

Name: Plūsmas pārtraukšanas gaisa vārsts Viton 1/8 424510
Brand: Arag
SKU: 424510
Price: 26.67 EUR
Availability: InStock

Apmaksas iespējas

26,67 €

AR PVN

4-5 Darba dienas

Plūsmas pārtraukšanas gaisa vārsts Viton 1/8 424510 Arag F620147

IR NOLIKTAVĀ

ID: 18005

Apraksts

Part number	424510
EAN	8026834088399
Unit	Each
Application range	Air-operated closing valve Suitable for all nozzle holders with anti-drip protection
Properties	The housing is made from fibreglass-reinforced polypropylene Viton® seals Stainless steel springs NC (normally closed)
Technical info	Liquid pressure: max. 8 bar Max. operating pressure: 3.8 bar Air consumption: 0.0069 l/cycle (0.0146 CFM)
Shape	Straight - 2 connection sides
Connection no 1 type	Thread
Connection no 1 type - male/female	Female
Connection no 1 thread diameter	1/8 Inch
Connection 2, type	Thread
Min. working pressure	3.8 BAR
Max working pressure	8 BAR
Seal material	Viton
