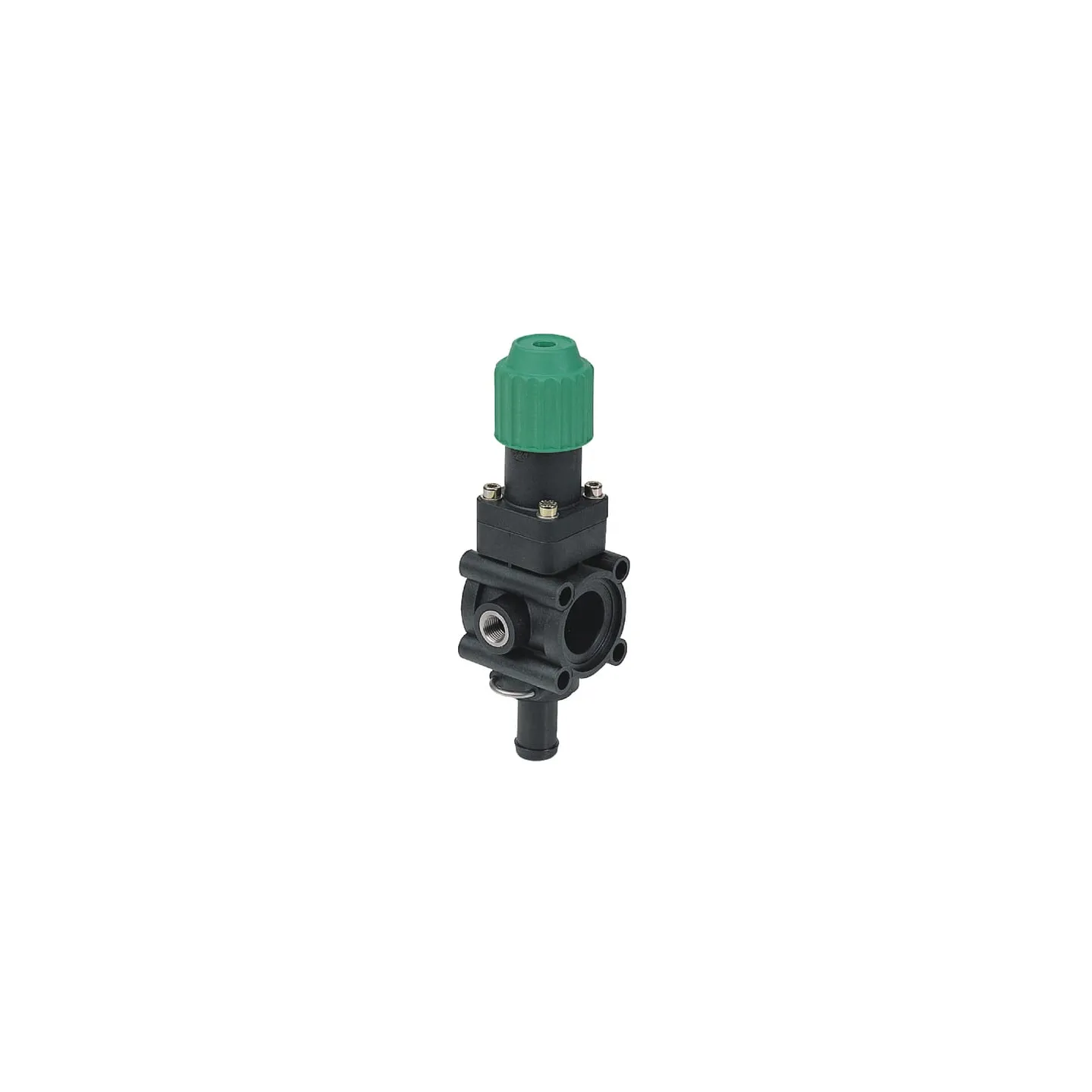

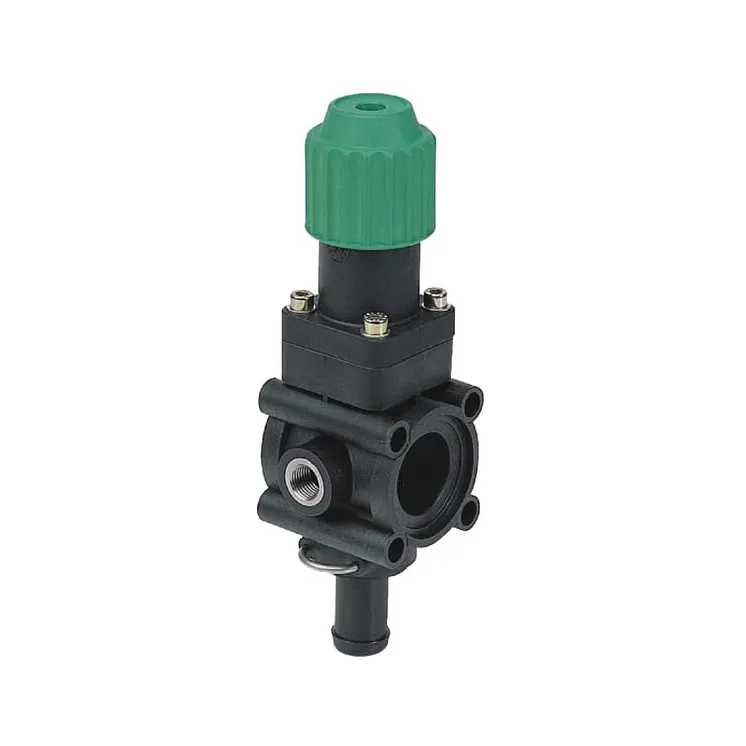

Spiediena atvieglojuma vārsts 20-bar 463080

Name: Spiediena atvieglojuma vārsts 20-bar 463080
Brand: Arag
SKU: 463080
Price: 67.53 EUR
Availability: BackOrder

Apmaksas iespējas

67,53 €

AR PVN

Pēc pieprasījuma

Spiediena atvieglojuma vārsts 20-bar 463080 Arag

Uz pasūtījumu

ID: 18121

Apraksts

Part number	463080
EAN	8026834112803
Unit	Each
Application range	Pressure relief valve: discharges the available liquid surplus when the programmed maximum pressure is reached Suitable for screwed fittings When using fittings in modular form, use an adapter (463/ T5 or 464/ T5)
Properties	Housing made from fibreglass-reinforced nylon Inner parts made from Delrin® and Inox steel AISI 303 Viton® seals Are equipped with hose nipples for the process. Further connections can be found under "easylink" P214315
Flow	max. 160l/min at 3 bar
Pressure max.	20 BAR
Hose End (mm)	19 mm
Pressure range	10-40 BAR
