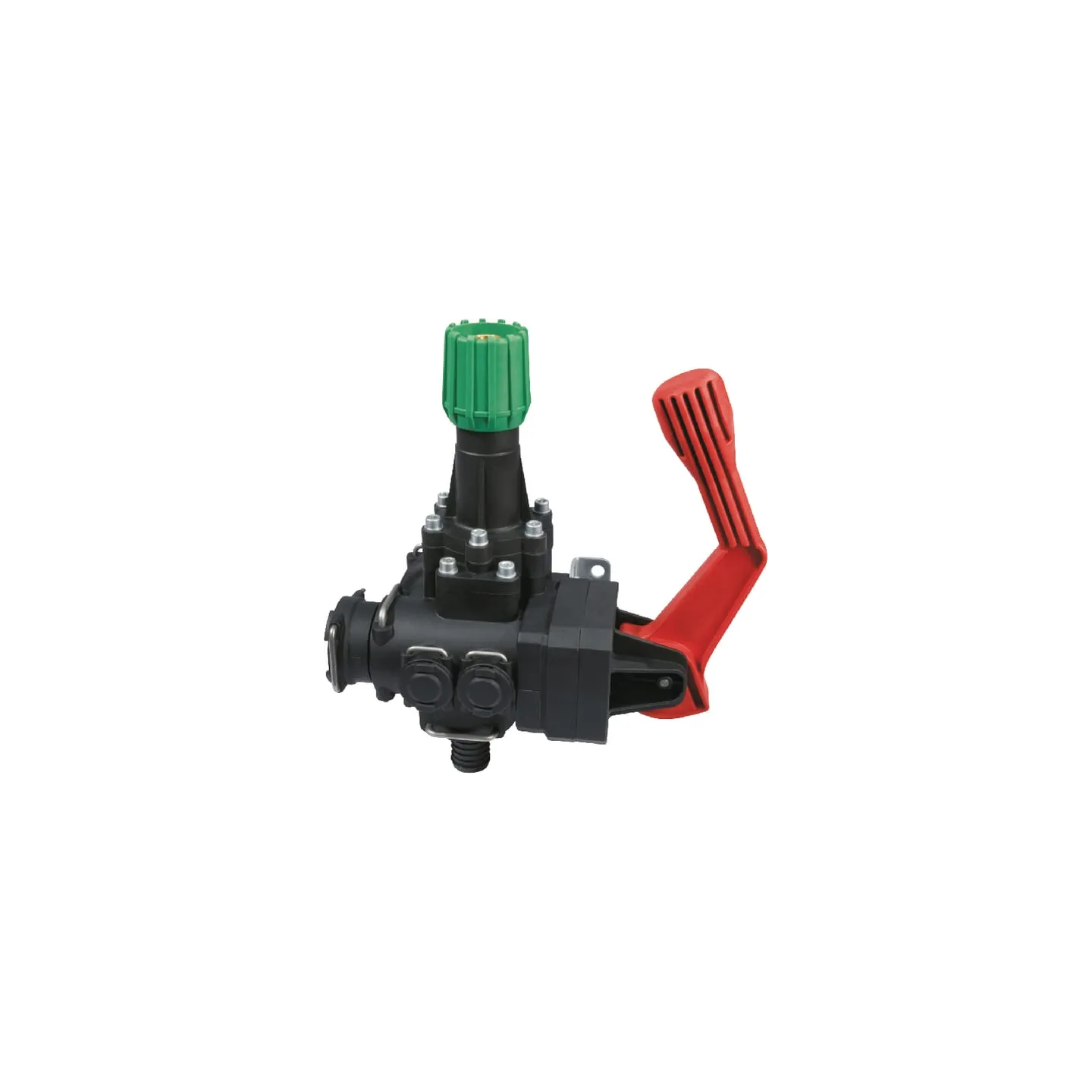

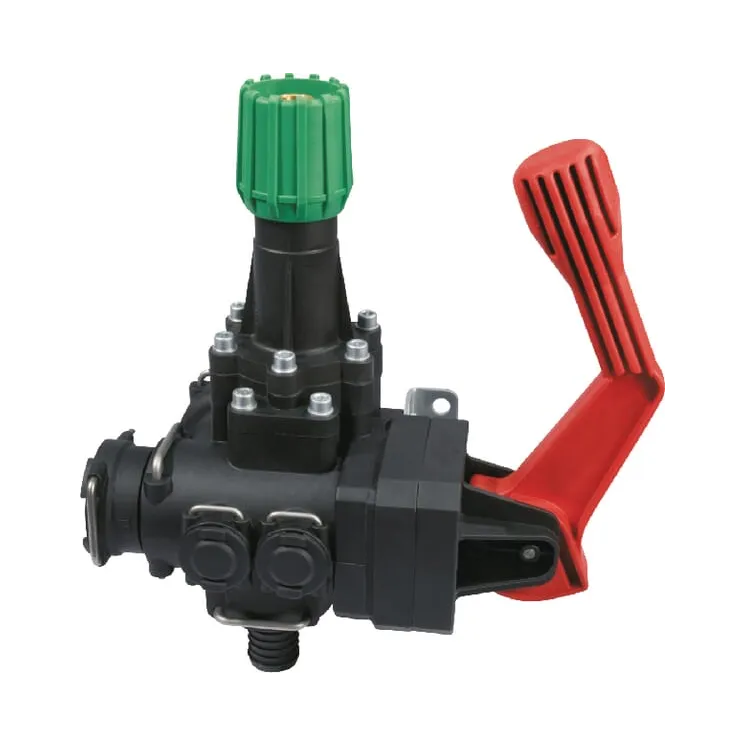

Galvenais vārsts T5F 46420250

Name: Galvenais vārsts T5F 46420250
Brand: Arag
SKU: 46420250
Price: 269.18 EUR
Availability: InStock

Apmaksas iespējas

269,18 €

AR PVN

4-5 Darba dienas

Galvenais vārsts T5F 46420250 Arag

IR NOLIKTAVĀ

ID: 18202

Apraksts

Part number	46420250
EAN	8026834338470
Unit	Each
Application range	Main shift valve: Regulates the opening and closing of the main control valve and thus the supply of liquid through the system (valve open: liquid flows to the circuit in use; valve closed: liquid flows to the tank) Pressure relief valve: Allows excess liquid to escape when it reaches the programmed maximum pressure (the valve is manually adjustable) For fittings in modular construction
Properties	Housing made from fibreglass-reinforced nylon Inner parts made from Delrin® and Inox steel AISI 303 Viton® seals Are equipped with hose nipples for the process
Flow	max. 200l/min a 3 bar
Consists of	Composed of manually operated main switch valve with adjustable maximum-pressure valve
P max. (bar)	20 BAR
Max. flow (Main control valve)	200 l/min
T	T5 °
Hose end Ø intake (Main control valve)	25 mm
Hose Ø bypass (Main control valve)	35 mm
