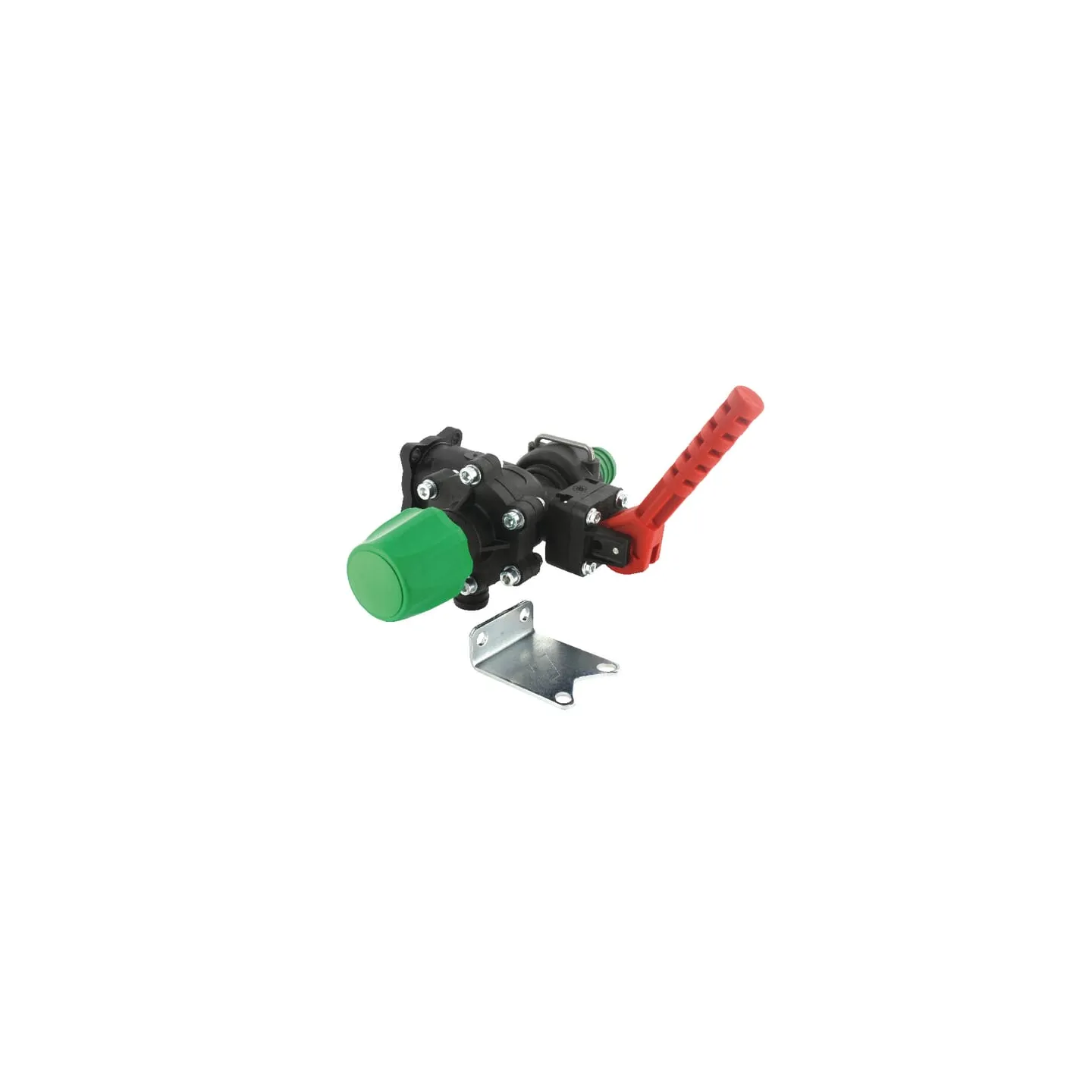

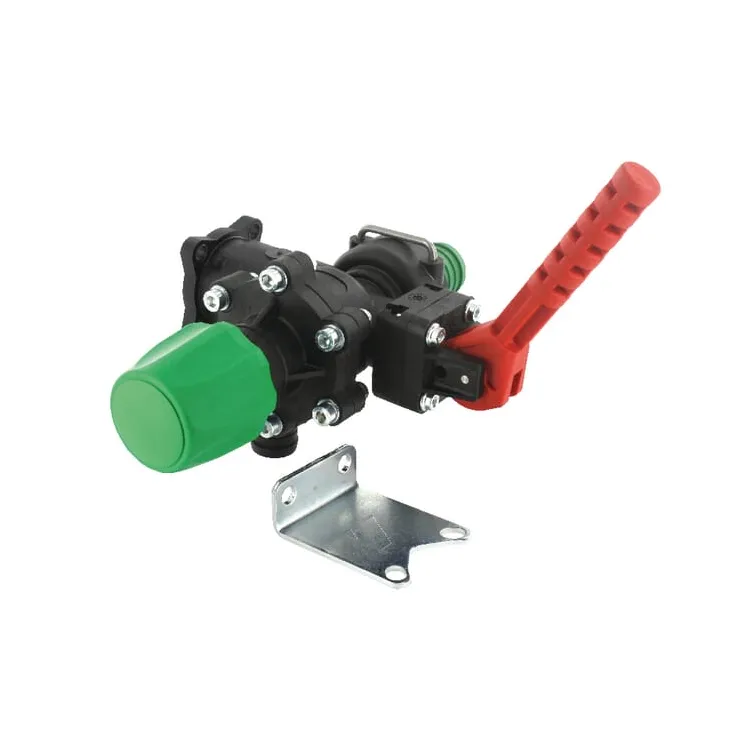

Galvenais vadības vārsts ar regulējamu spiediena atvieglojuma vārstu 471202

Name: Galvenais vadības vārsts ar regulējamu spiediena atvieglojuma vārstu 471202
Brand: Arag
SKU: 471202
Price: 154.02 EUR
Availability: InStock

Apmaksas iespējas

154,02 €

AR PVN

4-5 Darba dienas

Galvenais vadības vārsts ar regulējamu spiediena atvieglojuma vārstu 471202 Arag

IR NOLIKTAVĀ

ID: 18258

Apraksts

Part number	471202
EAN	8026834142107
Unit	Each
Application range	Main switch valve: controls the opening/closing of the main control valve and consequently the discharging of the liquid via the system. (Open valve: the liquid is delivered to the operating circuit; closed valve: the liquid is delivered to the tank) Pressure relief valve: Releases the available liquid surplus when the programmed maximum pressure is reached. The valve can be adjusted manually Suitable for screwed fittings When using fittings in modular form, use an adapter (463/ T5)
Properties	Housing made from fibreglass-reinforced nylon Inner parts made from Delrin® and Inox steel AISI 303 Viton® seals Are equipped with hose nipples for the process. Further connections can be found under "easylink" P217817
Consists of	Composed of manually operated main switch valve with adjustable maximum-pressure valve
Hose connection	IN: 25mm; BY-PASS: 30mm mm
Flow max.	150 l/min
Working pressure max.	20 BAR
