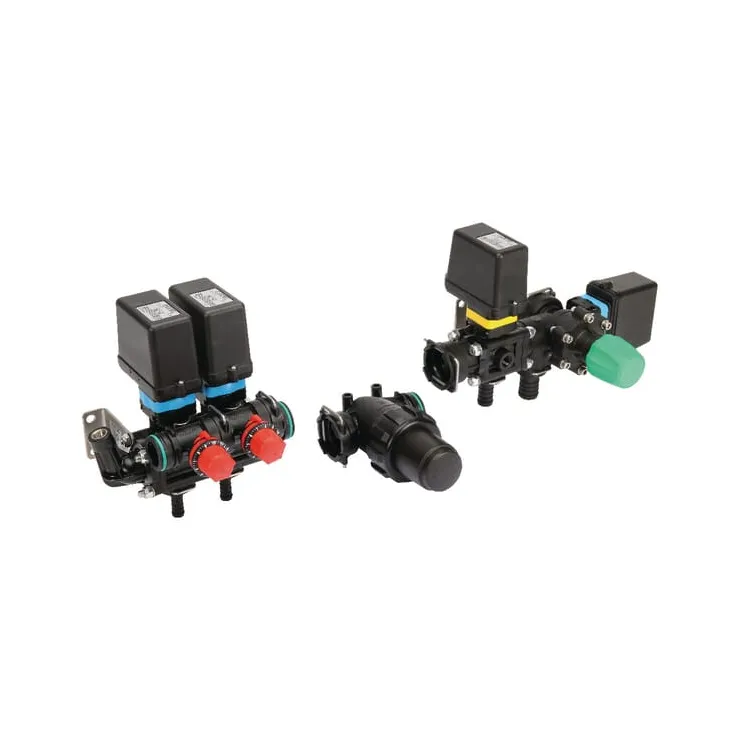

Standarta savienojums 2TB 120/20 bar 4715202E1SKIT

Name: Standarta savienojums 2TB 120/20 bar 4715202E1SKIT
Brand: Arag
SKU: 4715202E1SKIT
Price: 664.63 EUR
Availability: InStock

Apmaksas iespējas

664,63 €

AR PVN

4-5 Darba dienas

Standarta savienojums 2TB 120/20 bar 4715202E1SKIT Arag 4715202E1S KIT4715202E1SKIT

IR NOLIKTAVĀ

ID: 18261

Apraksts

Part number	4715202E1SKIT
EAN
Unit	Set
Details	Modular design
Application range	For crop sprayers
Properties	Housing made from fibreglass-reinforced nylon Inner parts made from Delrin® and Inox steel AISI 303 Viton® seals Are equipped with hose nipples for inlet and a by-pass. Further connections can be found under "easylink" P214315 (series 463) and P358607 (series 473) Resettable internal fuse
Benefits	Easy installation and replacement of components with fork connectors
Designed for	+Besteht aus einzelnen Modulen
Type	2 sections
Consists of	Main switch valve with pressure-relief valve Proportional pressure regulating valve Pressure filter 2 section valves with constant-pressure collector, without female part on the pressure side; these can be found under "easylink" P222878 Connection for pressure gauge or pressure transducer
P max. (bar)	20 BAR
Numbers of valves	2
Components	471520E50; 32220M3; 46301251
Flow rate	120 l/min
