Spiediena atvieglojuma vārsts 40 bar 463082

Name: Spiediena atvieglojuma vārsts 40 bar 463082
Brand: Arag
SKU: 463082
Price: 65.06 EUR
Availability: InStock

Apmaksas iespējas

65,06 €

AR PVN

4-5 Darba dienas

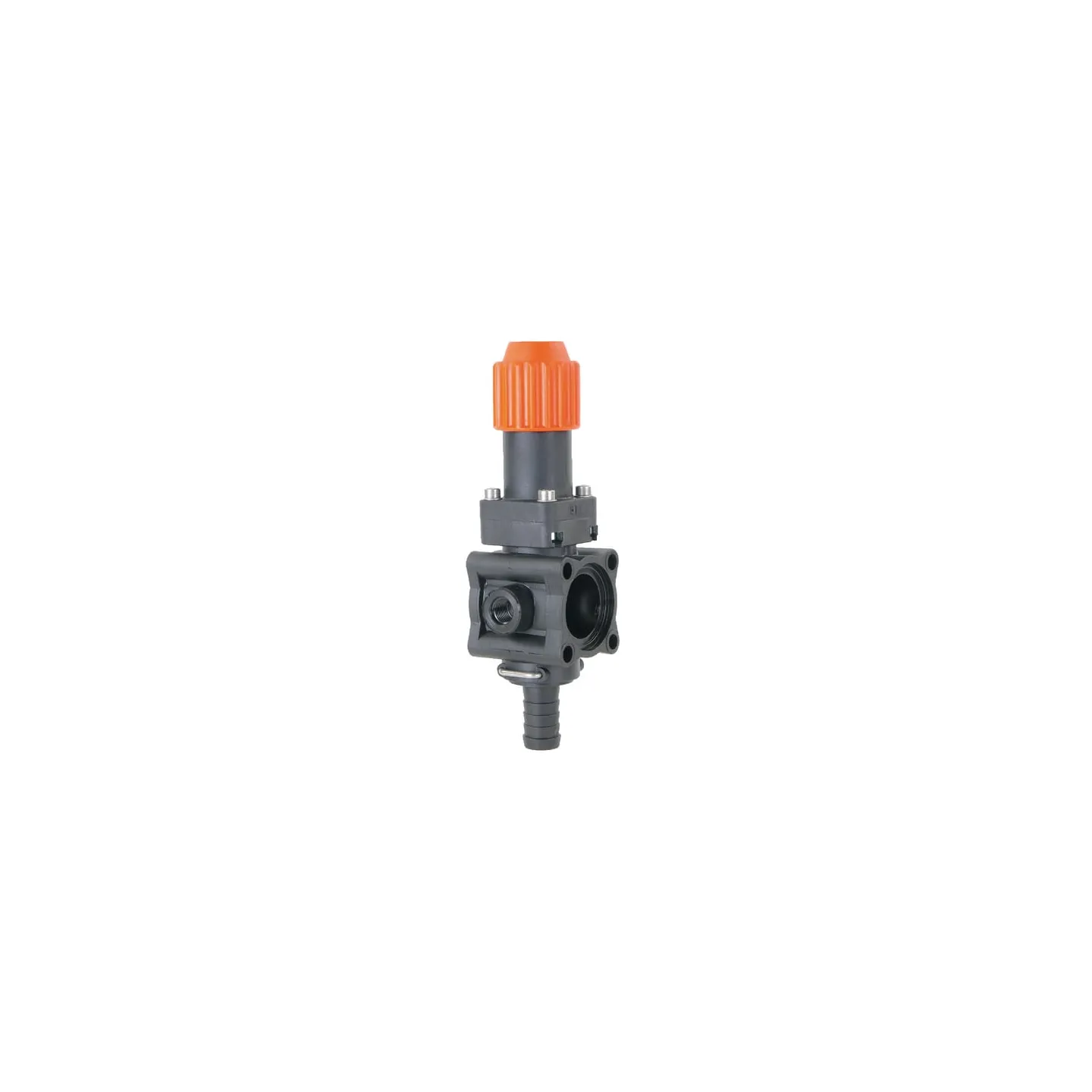

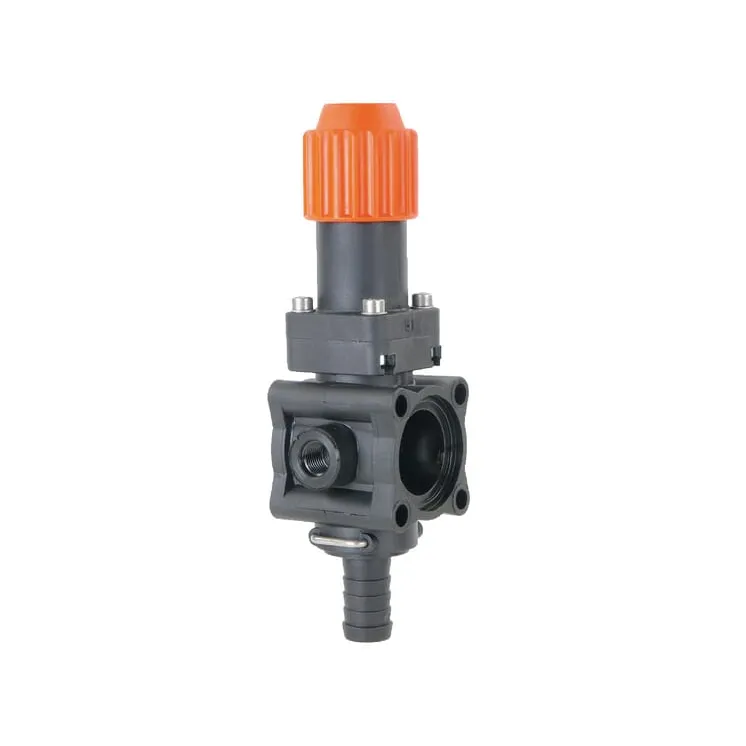

Spiediena atvieglojuma vārsts 40 bar 463082 Arag

IR NOLIKTAVĀ

ID: 18325

Apraksts

Part number	463082
EAN	8026834113244
Unit	Each
Application range	Pressure relief valve: discharges the available liquid surplus when the programmed maximum pressure is reached Suitable for screwed fittings When using fittings in modular form, use an adapter (463/ T5 or 464/ T5)
Properties	Housing made from fibreglass-reinforced nylon Inner parts made from Delrin® and Inox steel AISI 303 Viton® seals Are equipped with hose nipples for the process. Further connections can be found under "easylink" P214315
Flow	max. 160l/min at 3 bar
Pressure max.	40 BAR
Hose End (mm)	19 mm
Pressure range	10-40 BAR
