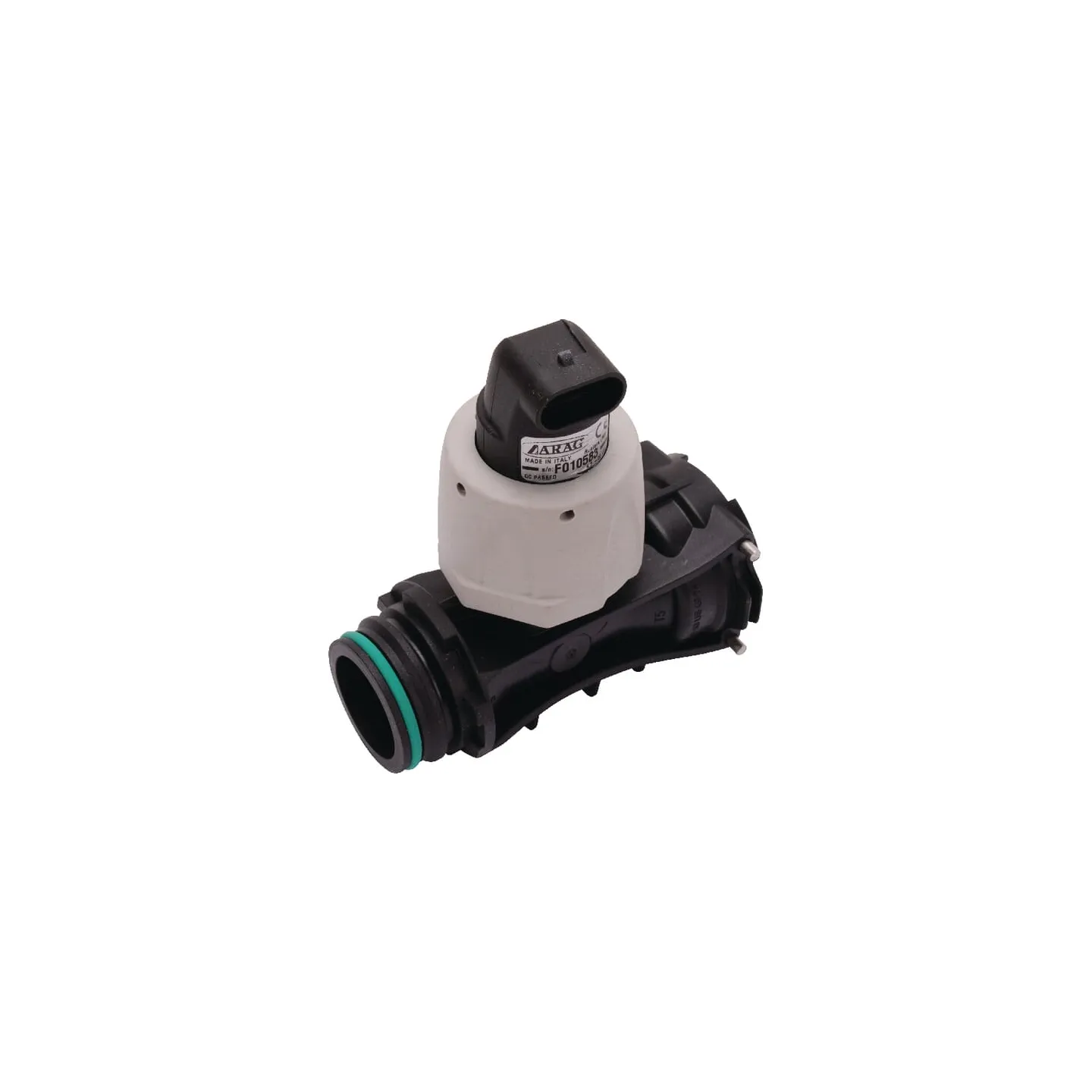

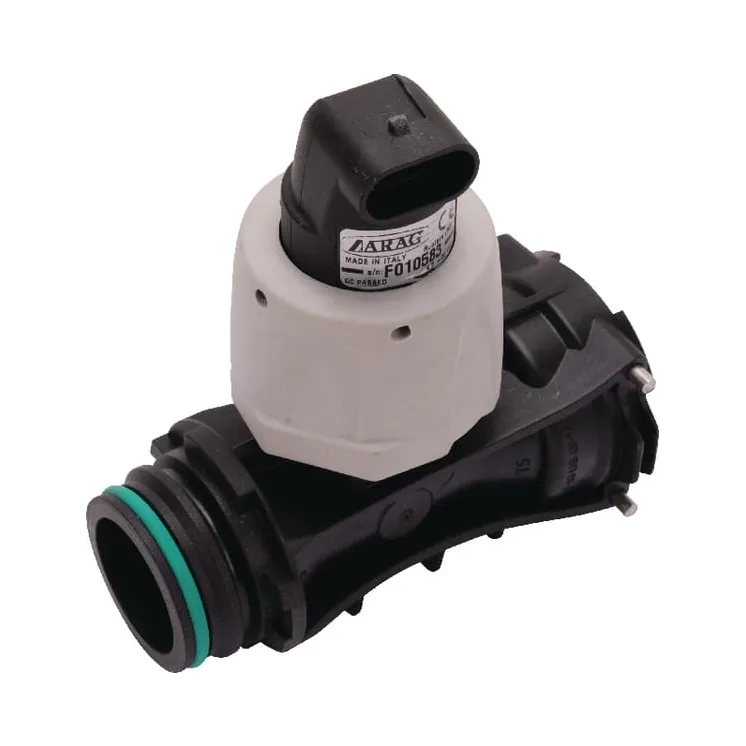

Plūsmas mērītājs 10-200 T5 M/F 4626415

Name: Plūsmas mērītājs 10-200 T5 M/F 4626415
Brand: Arag
SKU: 4626415
Price: 298.77 EUR
Availability: InStock

Apmaksas iespējas

298,77 €

AR PVN

4-5 Darba dienas

Plūsmas mērītājs 10-200 T5 M/F 4626415 Arag

IR NOLIKTAVĀ

ID: 18381

Apraksts

Part number	4626415
EAN	8026834338012
Unit	Each
Details	WOLF paddle flowmeter Hi-precision and good price/performance ratio
Application range	Different flow rates available, see item for details
Properties	T5 male/female fork connector for direct connection to control units Operating status LED Sapphire paddle pin to minimize rotational friction and maximize sensitivity and accuracy Paddle assembly equipped with ‘TWIST’ system for either cleaning or replacing operations without the need of any tools Fully sealed and watertight electronic sensor Tipical error: 1% of the full scale Power supply: 4 to 26 Vdc Max. consumption: 25 mA 0-12 Vdc pulse output with frequency proportional to rate Parts in contact with the fluid are made of fiberglass and Delrin® reinforced Nylon
Working pressure max.	20 BAR
Measure range	10 - 200 l/min
T	T5 F/M °
