Plūsmas mērītājs Orion 10-200 l/min 46211A40000

Name: Plūsmas mērītājs Orion 10-200 l/min 46211A40000
Brand: Arag
SKU: 46211A40000
Price: 577.88 EUR
Availability: InStock

Apmaksas iespējas

577,88 €

AR PVN

4-5 Darba dienas

Plūsmas mērītājs Orion 10-200 l/min 46211A40000 Arag 4621AA40000

IR NOLIKTAVĀ

ID: 18427

Apraksts

Part number	46211A40000
EAN	8026834400115
Unit	Each

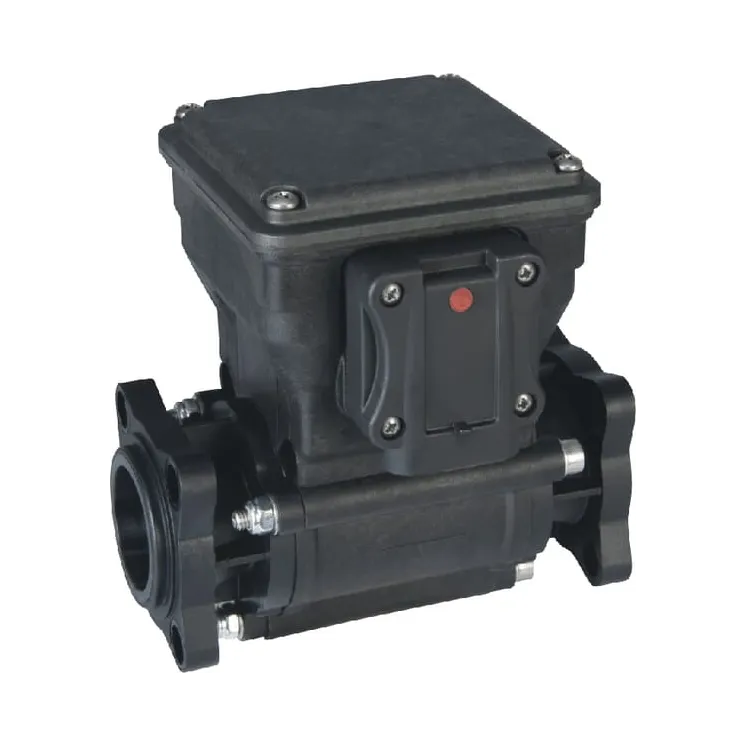

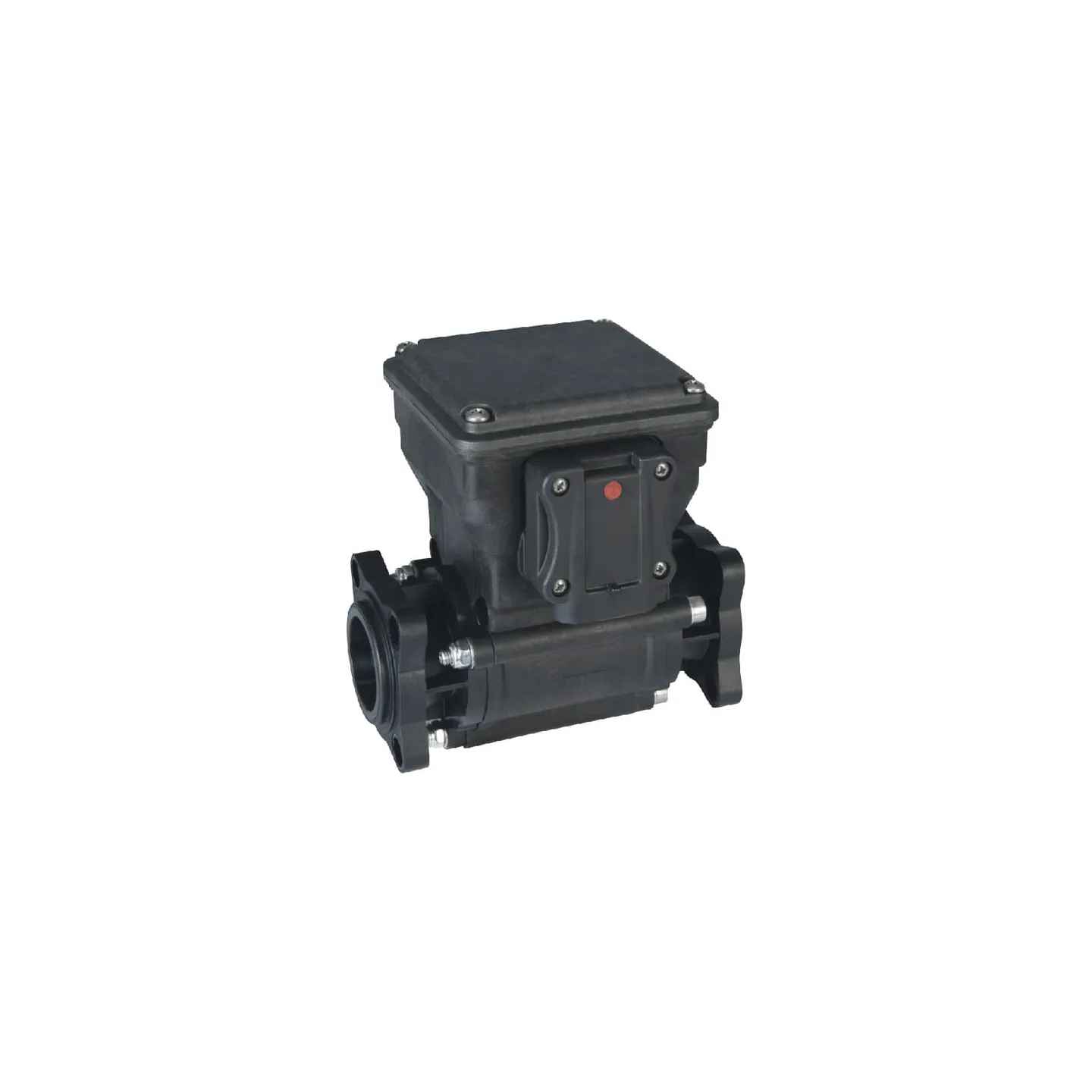

Product details	Arag - Orion electro-magnetic flow meters No mechanical moving parts inside the pipe Performances independent from fluid density and viscosity can be used in combination with ARAG sprayer manifolds Accuracy 0.5% to 1% (full flow) Low sensitivity to turbulence High precision Low maintennance Characteristics: Working pressure: up to 40 bar Pulse output 0-12Vdc Max consumption: 300 mA Output only by flowing fluid Parts in contact with fluid made of polypropylene and Stainless Steel 316
Working pressure max.	40 BAR
Measure range	10 - 200 l/min
Inner Ø (mm)	18.5 mm
Max. temp (°C)	50 °C
Note	LED light shows operating status
Size	463 / 863 Inch
