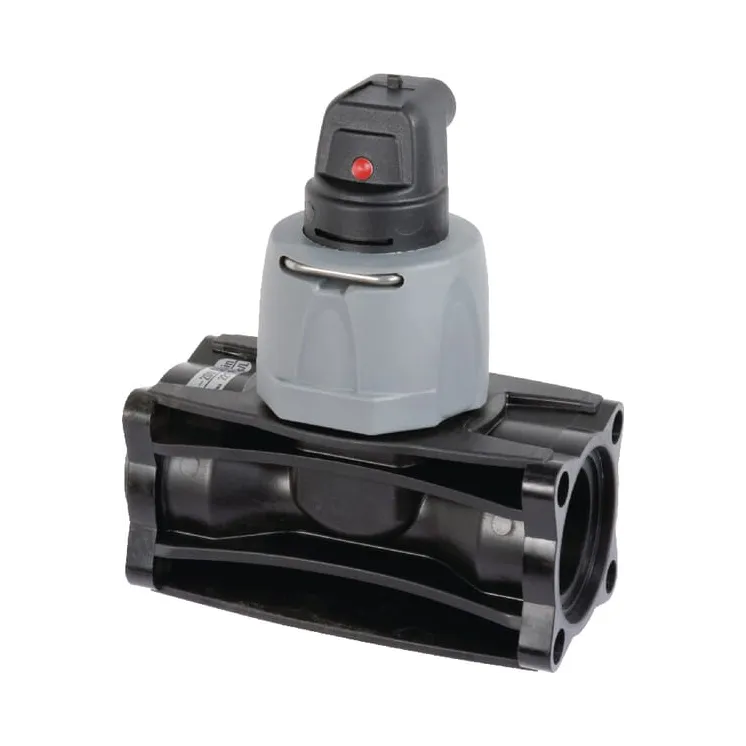

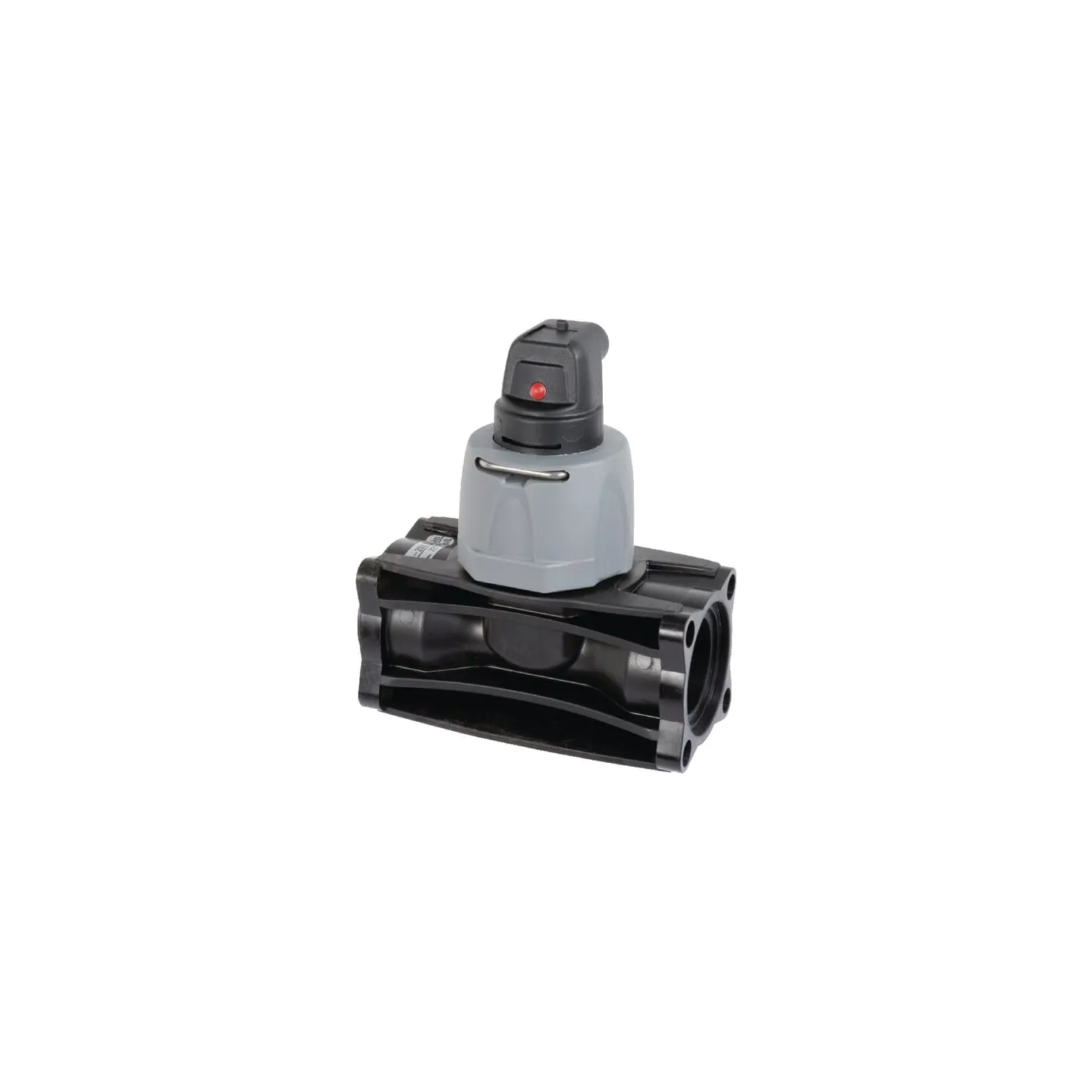

Wolf plūsmas mērītājs 5/100 L 46263A0

Name: Wolf plūsmas mērītājs 5/100 L 46263A0
Brand: Arag
SKU: 46263A0
Price: 295.68 EUR
Availability: InStock

Apmaksas iespējas

295,68 €

AR PVN

4-5 Darba dienas

Wolf plūsmas mērītājs 5/100 L 46263A0 Arag

IR NOLIKTAVĀ

ID: 18625

Apraksts

Part number	46263A0
EAN	8026834317079
Unit	Each
Details	WOLF paddle flowmeter Hi-precision and good price/performance ratio
Application range	Different flow rates available, see item for details
Properties	Flanged for 463 valve connection Operating status LED Sapphire paddle pin to minimize rotational friction and maximize sensitivity and accuracy Paddle assembly equipped with ‘TWIST’ system for either cleaning or replacing operations without the need of any tools Fully sealed and watertight electronic sensor Tipical error: 1% of the full scale Power supply: 4 to 26 Vdc Max. consumption: 25 mA 0-12 Vdc pulse output with frequency proportional to rate Parts in contact with the fluid are made of fiberglass and Delrin® reinforced Nylon
Working pressure max.	40 BAR
Measure range	5 - 100 l/min
T	463 °
