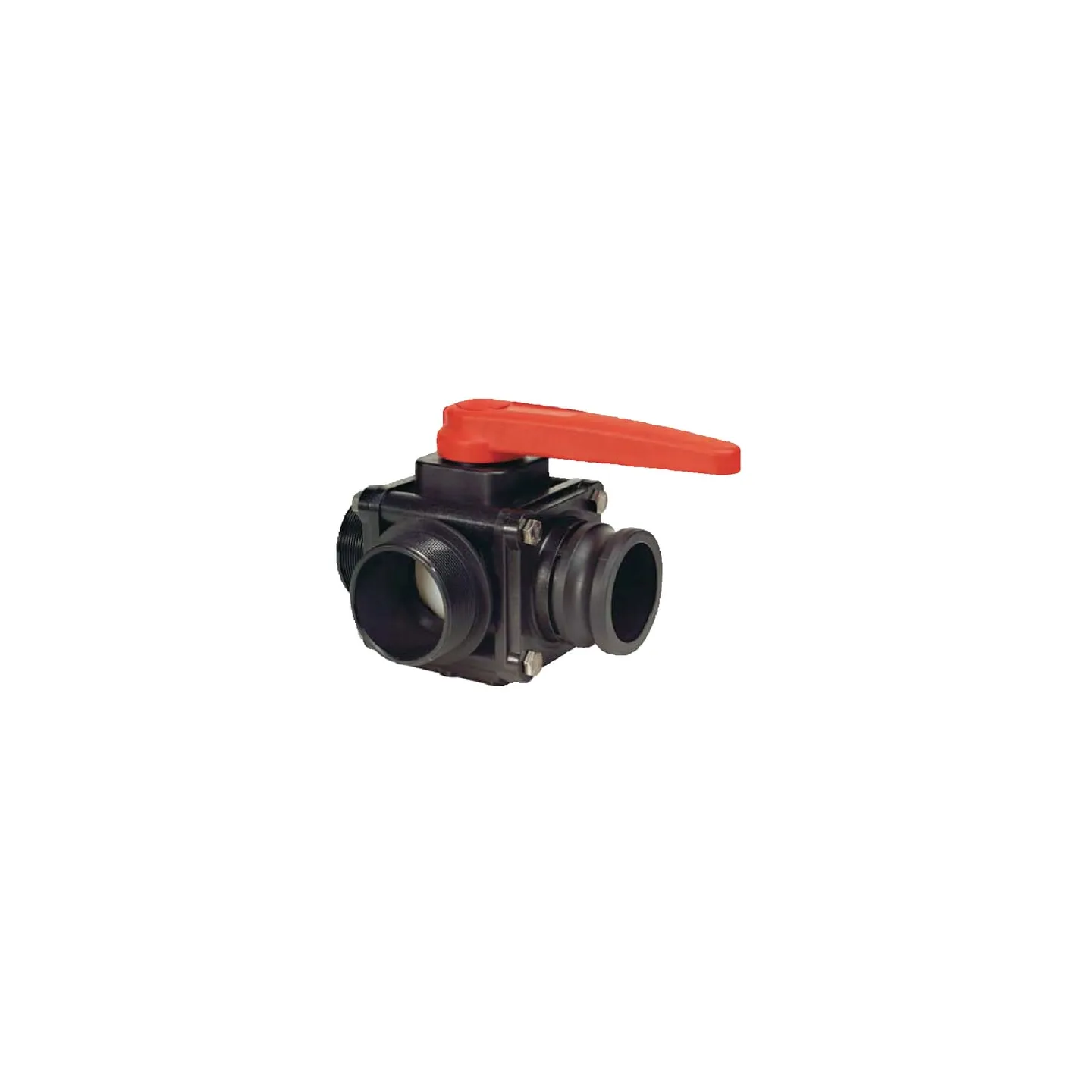

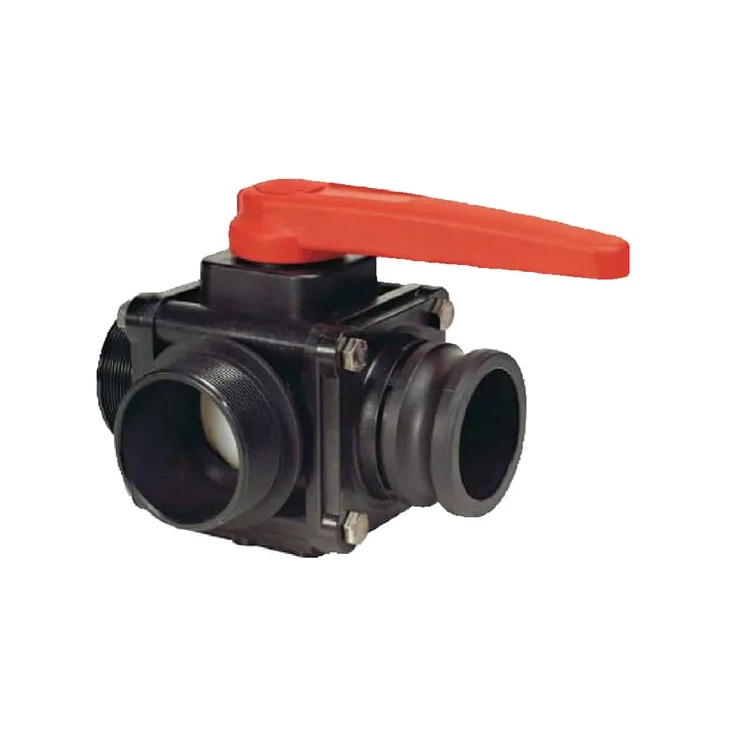

Bumbu vārsts 3-ceļi 3 M 453017H99

Name: Bumbu vārsts 3-ceļi 3 M 453017H99
Brand: Arag
SKU: 453017H99
Price: 158.49 EUR
Availability: BackOrder

Apmaksas iespējas

158,49 €

AR PVN

Pēc pieprasījuma

Bumbu vārsts 3-ceļi 3 M 453017H99 Arag

Uz pasūtījumu

ID: 18639

Apraksts

Part number	453017H99
EAN	8026834091450
Unit	Each
Properties	The housing is made from fibreglass-reinforced polypropylene Teflon® seal seats Screws and bolts made from stainless steel Ball made from fibreglass-reinforced polypropylene Seals made from EPDM
Technical info	Lever 90° adjustable The handle is rounded off for safe and comfortable handling The "F" and "M" abbreviations in the properties are female (internal screw thread) and male (external screw thread) respectively Connections: 2 threads and a CAMLOCK male part
Number of positions	3
Number of ports	3
Type	Manual valve
Max working pressure	8 BAR
Connection type	Quick coupling system Camlock
Connection thread diameter	3 Inch
LConnection thread length	35 mm
DNNominal inner diameter	65 mm
Ball material	Polypropylene
ATotal length	252 mm
Housing width	127 mm
