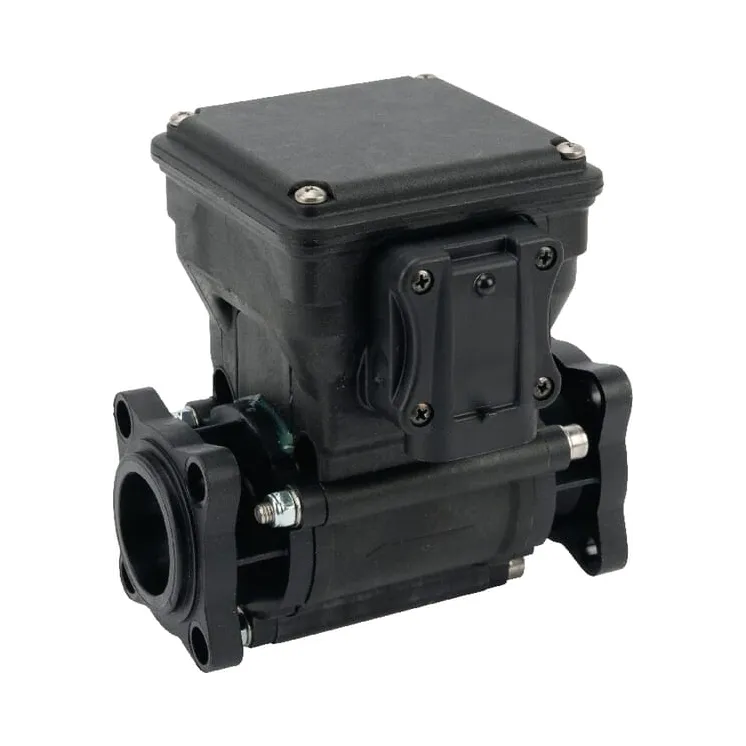

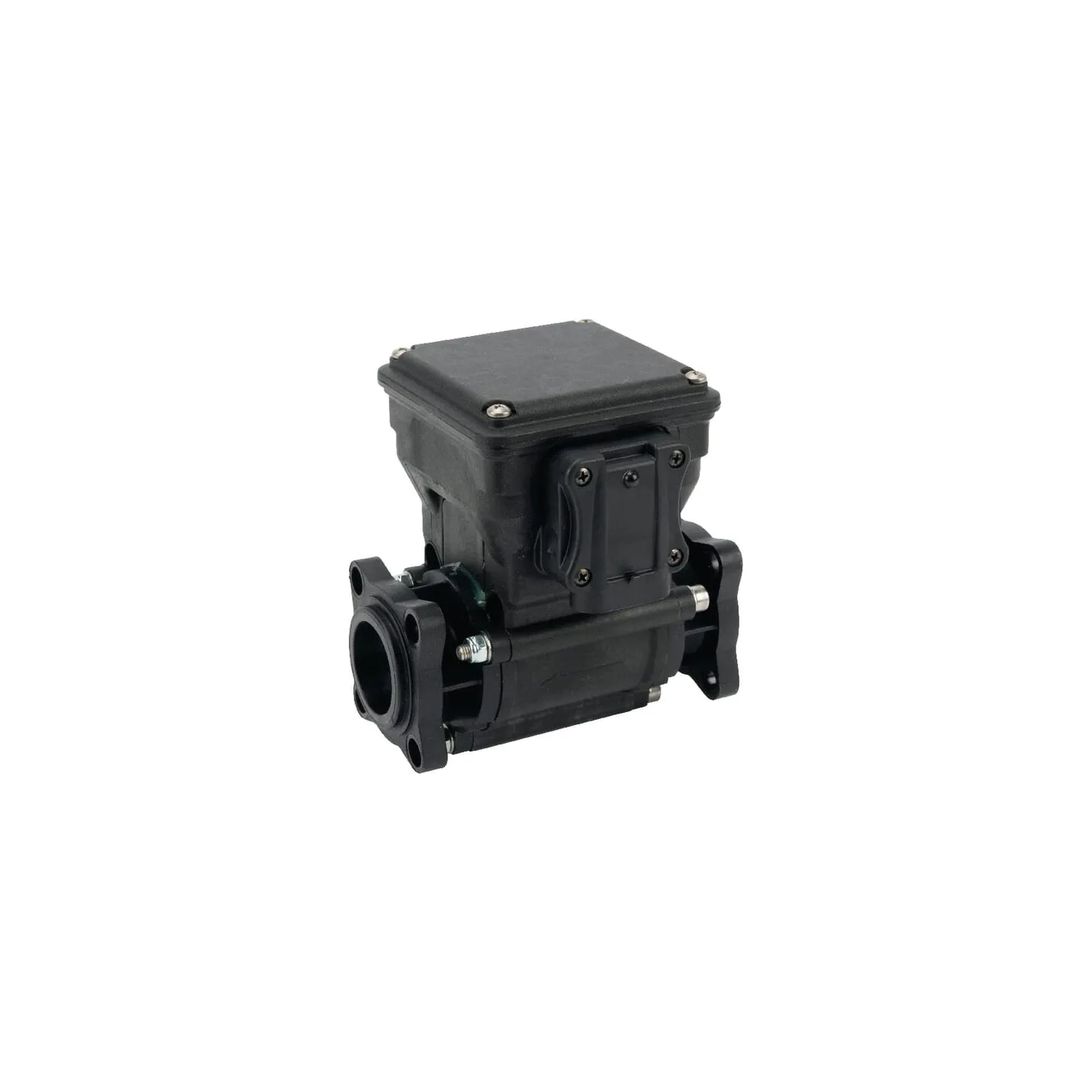

Orion plūsmas mērītājs 1-20 l/min 46211A10000

Name: Orion plūsmas mērītājs 1-20 l/min 46211A10000
Brand: Arag
SKU: 46211A10000
Price: 657.76 EUR
Availability: InStock

Apmaksas iespējas

657,76 €

AR PVN

4-5 Darba dienas

Orion plūsmas mērītājs 1-20 l/min 46211A10000 Arag 4621AA10000

IR NOLIKTAVĀ

ID: 18648

Apraksts

Part number	46211A10000
EAN	8026834400009
Unit	Each
Product details	Arag - Orion electro-magnetic flow meters No mechanical moving parts inside the pipe Performances independent from fluid density and viscosity can be used in combination with ARAG sprayer manifolds Accuracy 0.5% to 1% (full flow) Low sensitivity to turbulence High precision Low maintennance Characteristics: Working pressure: up to 40 bar Pulse output 0-12Vdc Max consumption: 300 mA Output only by flowing fluid Parts in contact with fluid made of polypropylene and Stainless Steel 316
Working pressure max.	40 BAR
Measure range	1 - 20 l/min
Inner Ø (mm)	7 mm
Max. temp (°C)	50 °C
