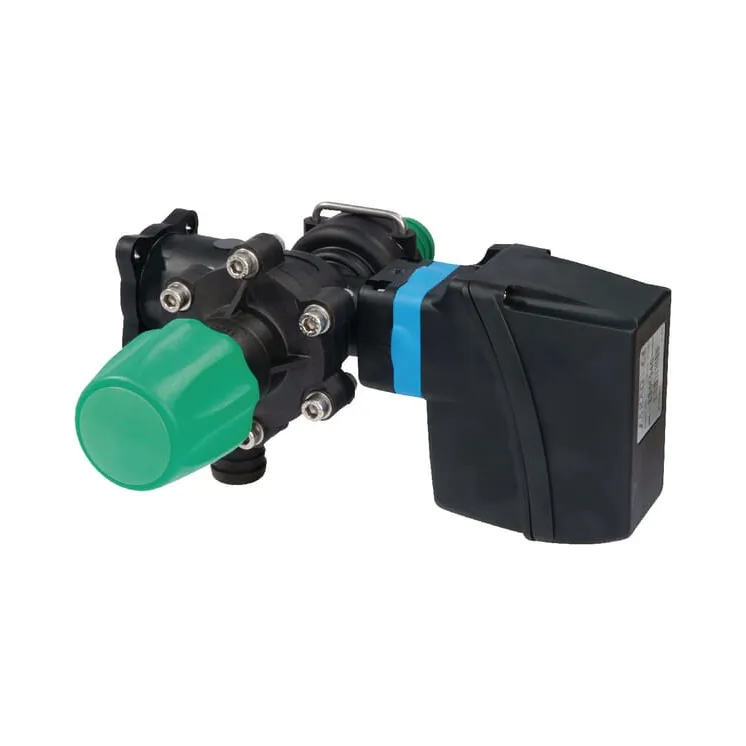

Galvenais elektriskais slēdža vārsts 8710502

Name: Galvenais elektriskais slēdža vārsts 8710502
Brand: Arag
SKU: 8710502
Price: 245.18 EUR
Availability: BackOrder

Apmaksas iespējas

245,18 €

AR PVN

Pēc pieprasījuma

Galvenais elektriskais slēdža vārsts 8710502 Arag 471502

Uz pasūtījumu

ID: 18801

Apraksts

Part number	8710502
EAN	8026834325852
Unit	Each
Application range	Gear motor: controls the opening/closing of the main control valve and consequently the discharging of the liquid via the system. (Open valve: the liquid is delivered to the operating circuit; closed valve: the liquid is delivered to the tank) Pressure relief valve: Releases the available liquid surplus when the programmed maximum pressure is reached. The valve can be adjusted manually Suitable for screwed fittings When using fittings in modular form, use an adapter (463/ T5 or 464/ T5)
Properties	Housing made from fibreglass-reinforced nylon Inner parts made from Delrin® and Inox steel AISI 303 Viton® seals Are equipped with hose nipples for the process. Further connections can be found under "easylink" P214373 (series 464) and P217817 (series 471)
Consists of	Composed of an electrical main switch valve (with gear motor) with adjustable pressure-relief valve
P max. (bar)	20 BAR
Connection	863
Flow max.	150 l/min
max. Flow	150 l/min
Power consumption	0.5 A
Voltage	12 V
Hose Ø input	25 mm
Hose Ø bypass	30 mm
Response time	0.6 s
