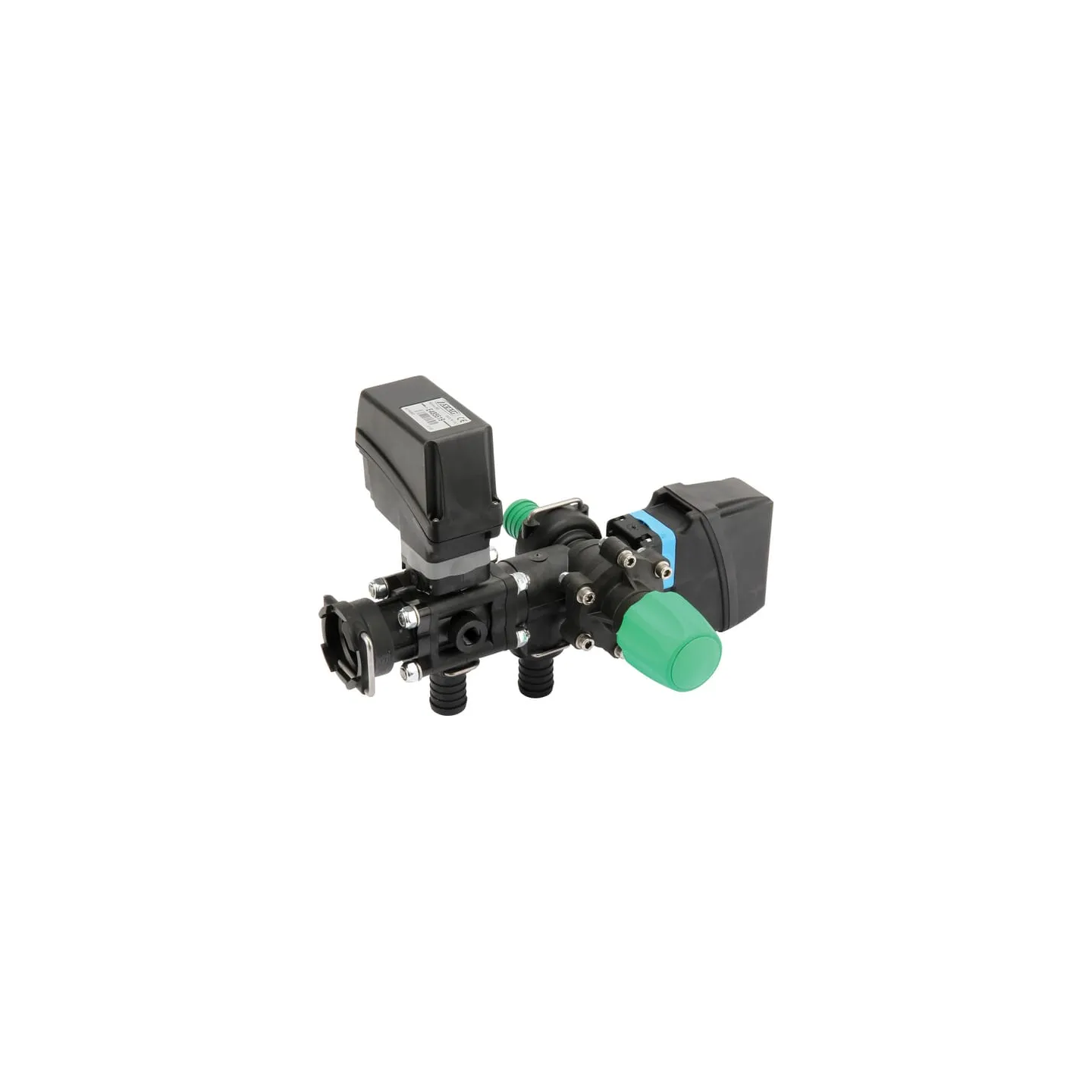

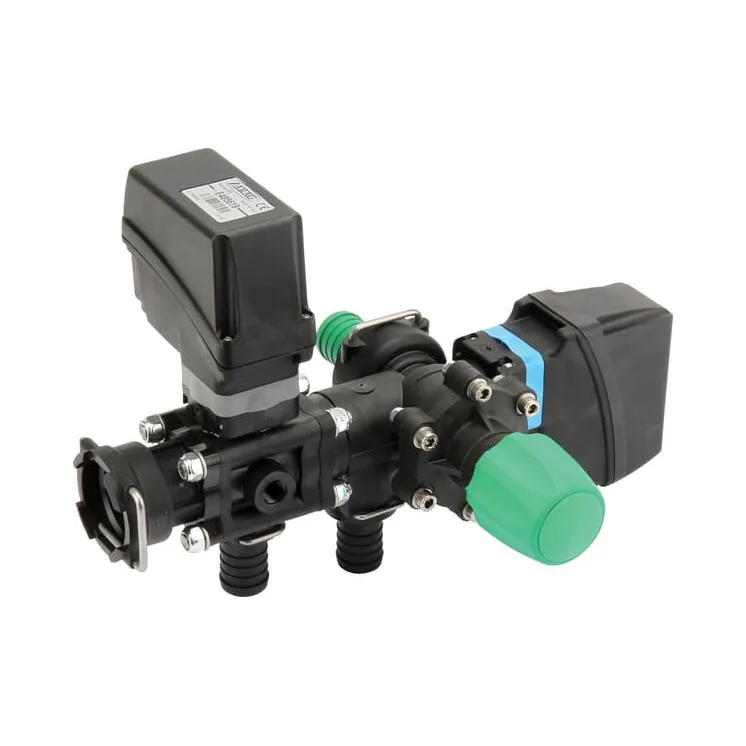

Galvenā vārstu vienība T5F 024S 871520R50

Name: Galvenā vārstu vienība T5F 024S 871520R50
Brand: Arag
SKU: 871520R50
Price: 346.25 EUR
Availability: BackOrder

Apmaksas iespējas

346,25 €

AR PVN

Pēc pieprasījuma

Galvenā vārstu vienība T5F 024S 871520R50 Arag 471520R50

Uz pasūtījumu

ID: 18802

Apraksts

Part number	871520R50
EAN	8026834331099
Unit	Each
Technical info	Comprising main valve 871 502 (with 25 mm hose connection 473 001.A25; 35 mm- 471 202.A45) and proportional control valve serie 863; with 19 mm hose connection 463 001.A19.
Designed for	Bravo / Delta
Flow max.	150 (3 bar) l/min
P max. (bar)	20 BAR
Components	8710502; 8630024S
Voltage	12 V
Hose Ø bypass (Main control valve)	30 mm
Hose Ø bypass (Proportional valve)	25 mm
Hose end Ø intake (Main control valve)	25 mm
Max. flow (Main control valve)	150 l/min
Max. flow (Proportional valve)	150 l/min
Response time (Main control valve)	0.6 s
Response time (Proportional valve)	7 s
T	T5 °
Power consumption	1 A
