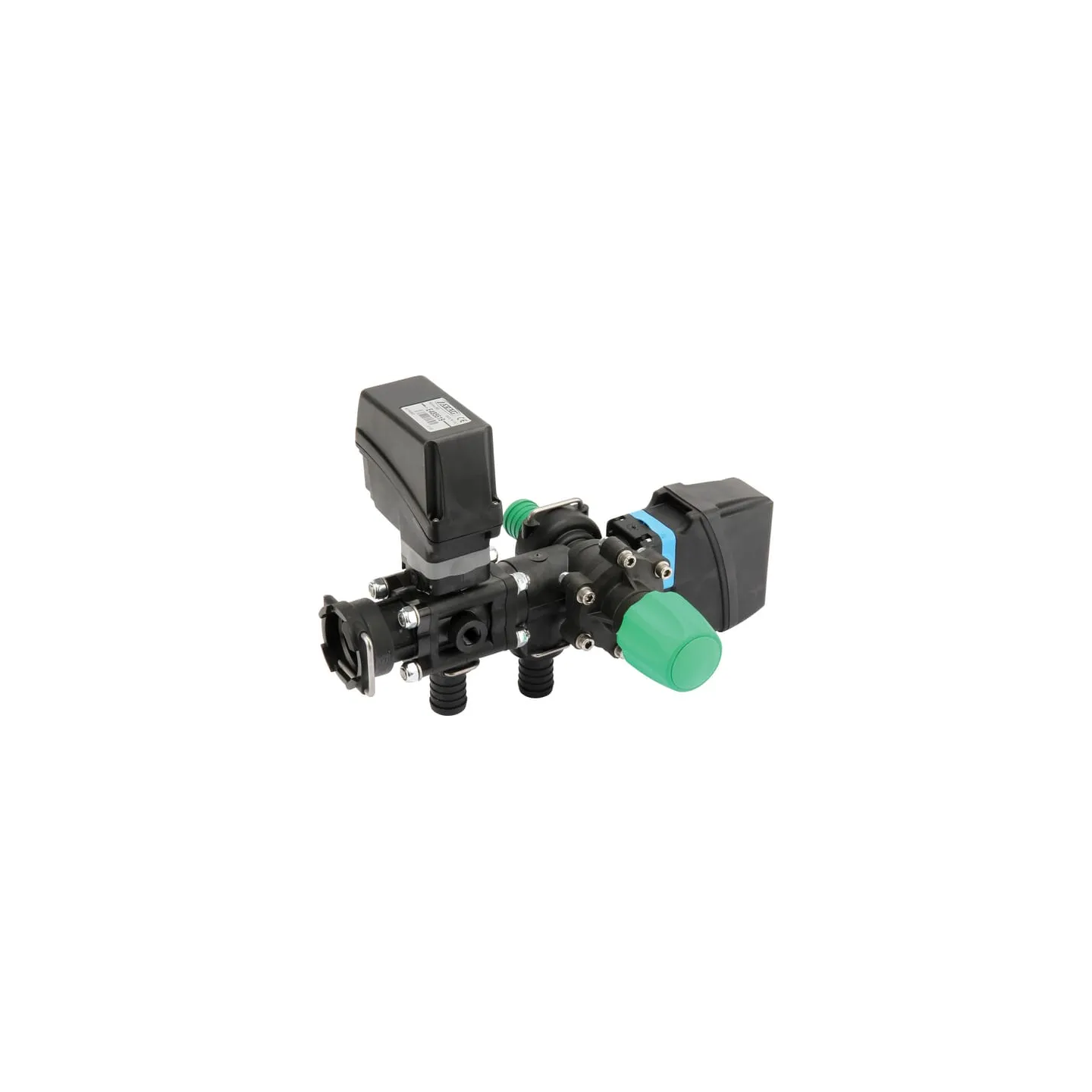

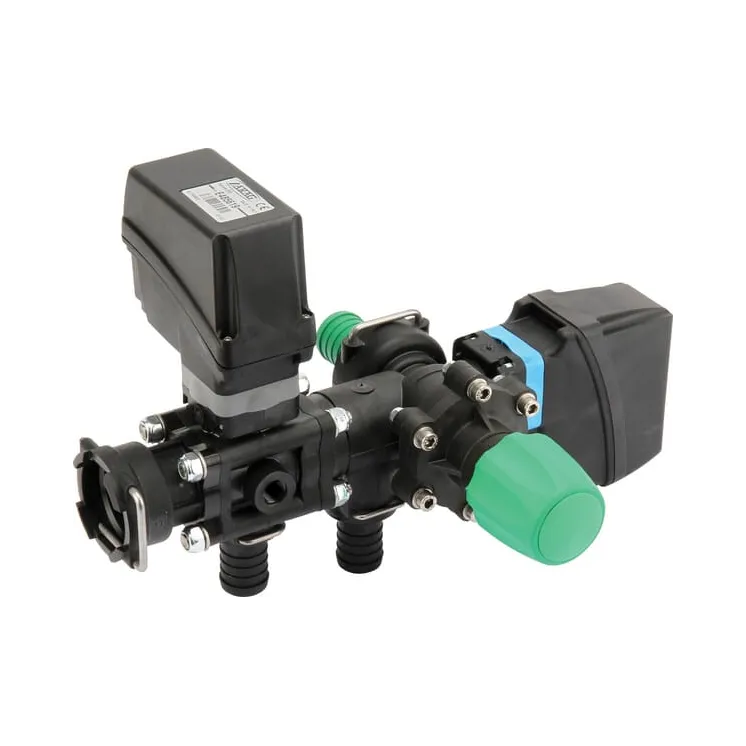

Galvenais vārsts ar vārstu 871520P50

Name: Galvenais vārsts ar vārstu 871520P50
Brand: Arag
SKU: 871520P50
Price: 340.05 EUR
Availability: InStock

Apmaksas iespējas

340,05 €

AR PVN

4-5 Darba dienas

Galvenais vārsts ar vārstu 871520P50 Arag 471520P50

IR NOLIKTAVĀ

ID: 18816

Apraksts

Part number	871520P50
EAN	8026834331082
Unit	Each
Technical info	Comprising main valve 871 502 (with 25 mm hose connection 473 001.A25; 35 mm- 471 202.A45) and proportional control valve serie 863; with 19 mm hose connection 463 001.A19.
Designed for	Bravo / Delta
Flow max.	100 (3 bar) l/min
P max. (bar)	20 BAR
Components	8710502; 8630020S
Voltage	12 V
Hose Ø bypass (Main control valve)	30 mm
Hose Ø bypass (Proportional valve)	19 mm
Hose end Ø intake (Main control valve)	25 mm
Max. flow (Main control valve)	150 l/min
Max. flow (Proportional valve)	100 l/min
Response time (Main control valve)	0.6 s
Response time (Proportional valve)	7 s
T	T5 °
Power consumption	1 A
