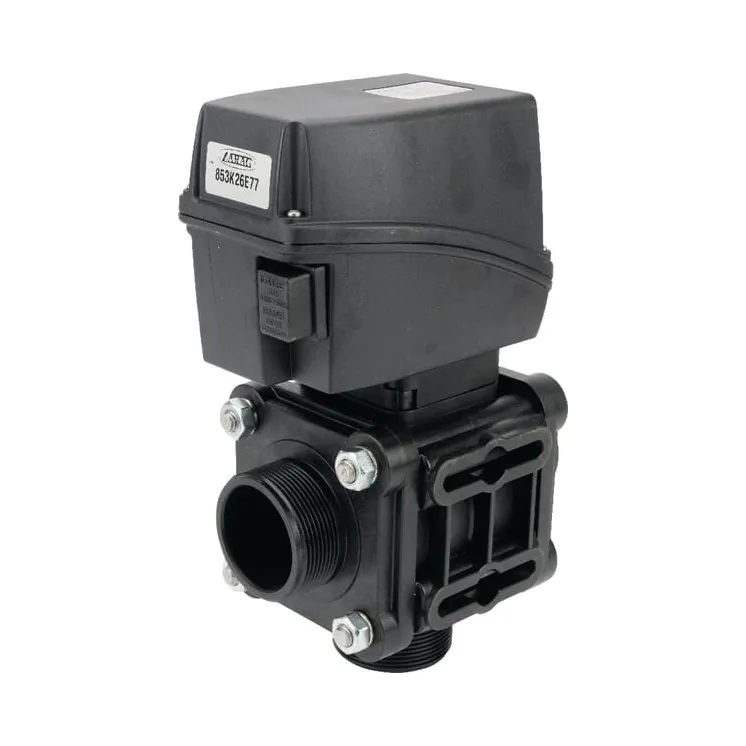

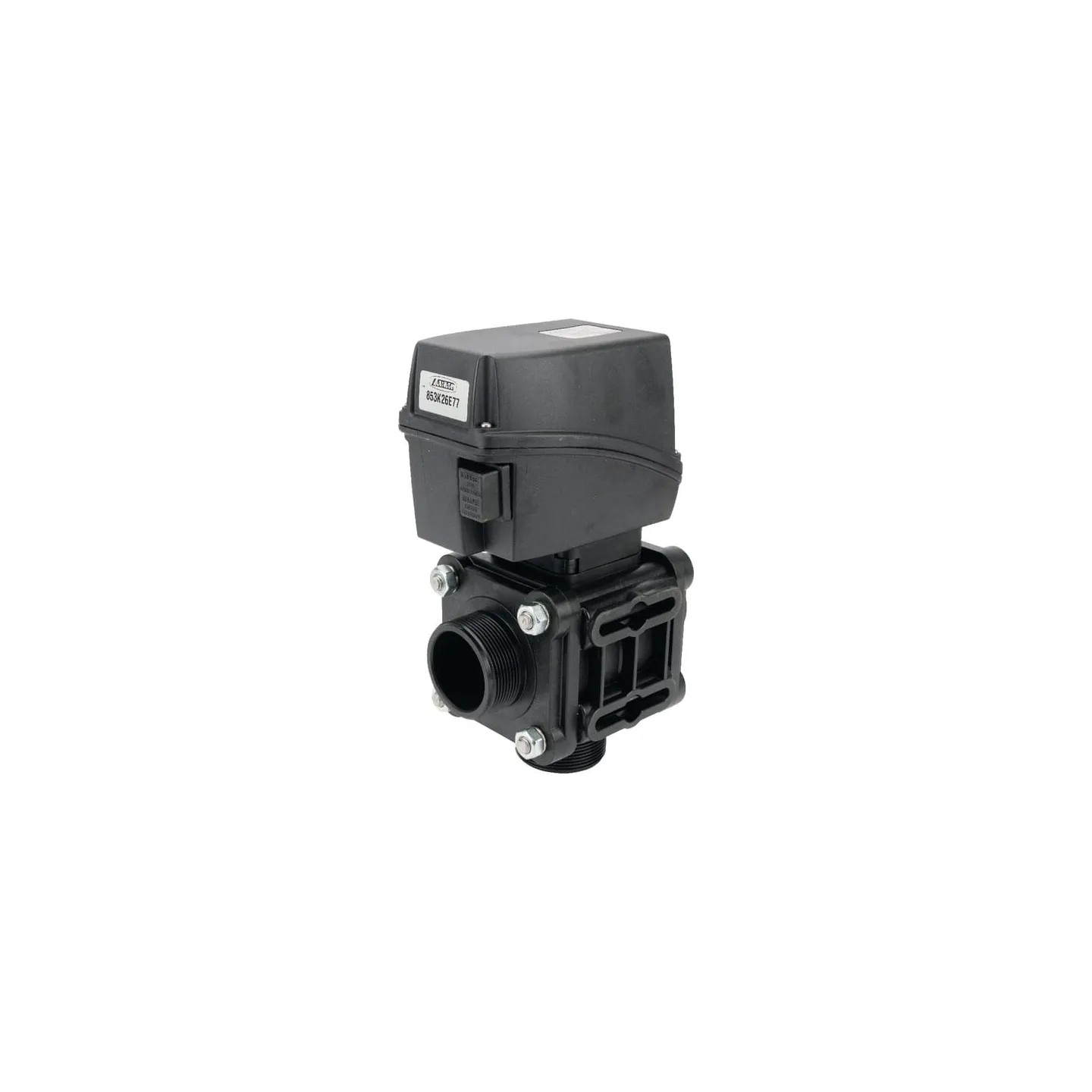

Elektriskais 3-virzienu lodveida vārsts 2 M 853K26E77

Name: Elektriskais 3-virzienu lodveida vārsts 2 M 853K26E77
Brand: Arag
SKU: 853K26E77
Price: 581.72 EUR
Availability: BackOrder

Apmaksas iespējas

581,72 €

AR PVN

Pēc pieprasījuma

Elektriskais 3-virzienu lodveida vārsts 2 M 853K26E77 Arag 453726E77T 853726E77

Uz pasūtījumu

ID: 18843

Apraksts

Produkta detaļas

Datu lapa

Apmaksa
100% Droši maksājumi

Piegāde
Ātri piegādes risinājumi

Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.

Part number	853K26E77
EAN	8026834396470
Unit	Each
Properties	Ball positioning seats made from Teflon Internal O-rings made from viton Clamping devices for flange mounting made from stainless steel, protected by the valve housing
Technical info	The abbreviation "A" in the item number means: female thread on both sides; "E" means male thread on both sides NO: normally open The valves are designed for the 3-wire function (++-), a supply with 12Vdc: As long as the controller is fed, the valve rotates and moves into position, in which it interrupts the power consumption independently. If the power supply is interrupted, the gear motor brings the ball back to its original position The valves are also compatible with the 2-wire controllers: where the opening/closing movement by reversing the supply polarity is achieved with a double diverter
Ball material	Stainless steel 316
Voltage	12V/ 3 A V
Response time	4.6 s
CHeight from top to center	210 mm
FThread	2" M Inch
BHeight from bottom to center	61 mm
DLength fitting to centre line	85 mm
LLength nipple	27 mm
ALength pass through	174 mm
Max. working pressure	8 BAR
DNNominal diameter	50 mm
XWidth pass through	57 mm
YWidth suction fitting	60 mm
