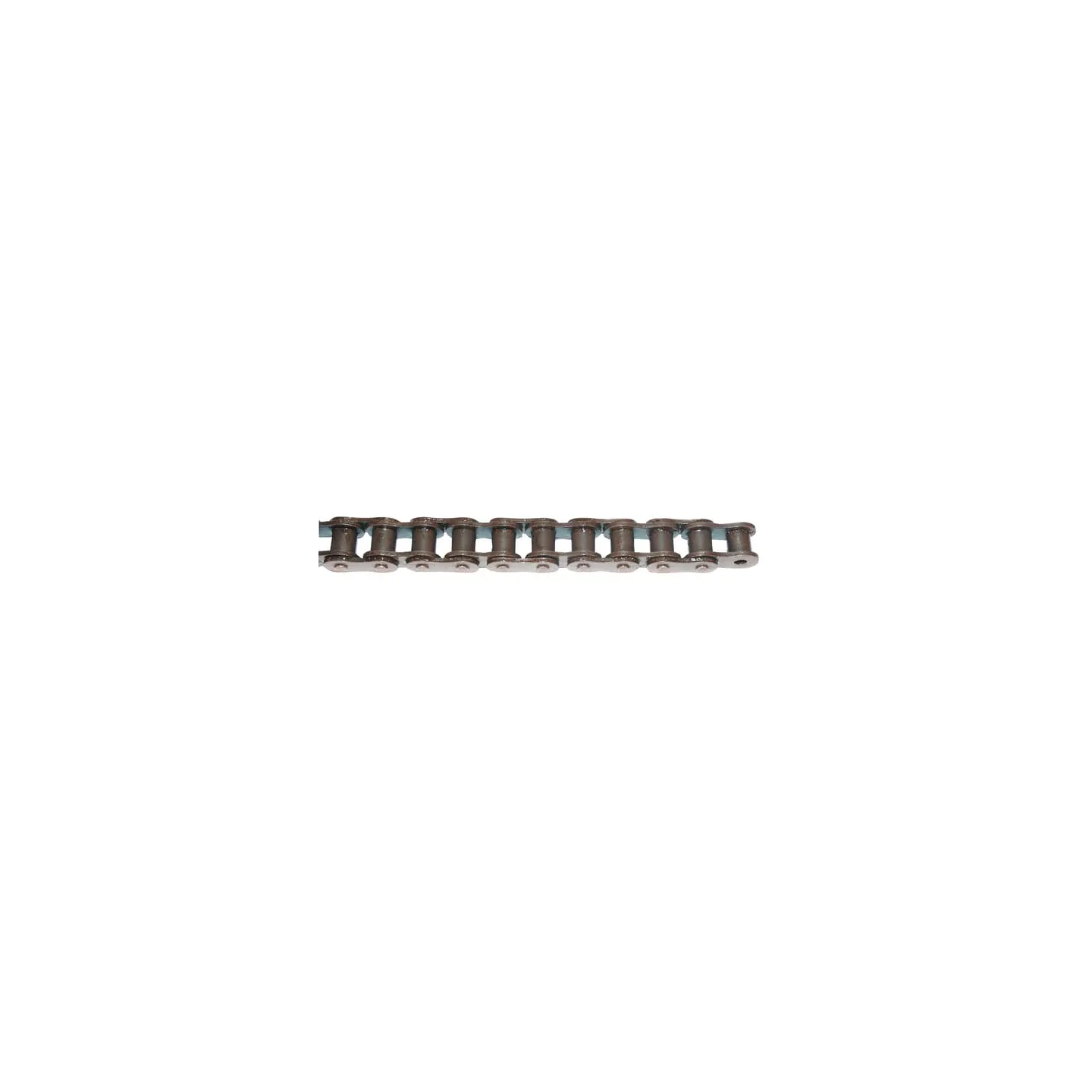

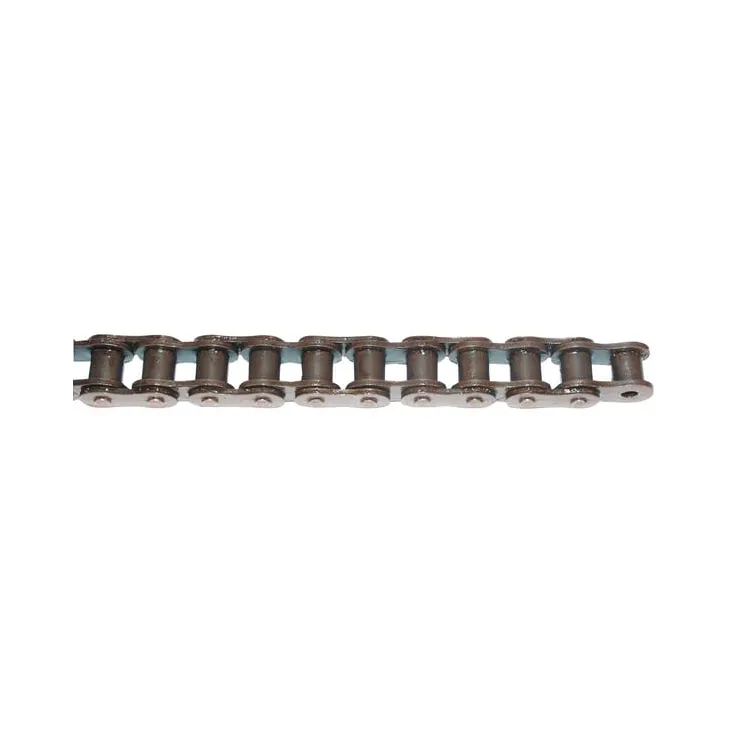

Rullīšu ķēde 06B1 06B1GPP005

Name: Rullīšu ķēde 06B1 06B1GPP005
Brand: GoPart
SKU: 06B1GPP005
Price: 8.25 EUR
Availability: InStock

Apmaksas iespējas

8,25 €

AR PVN

4-5 Darba dienas

Rullīšu ķēde 06B1 06B1GPP005 gopart 06B1GP 06B1N 06B1SP 8020K1006

IR NOLIKTAVĀ

ID: 28039

Apraksts

Part number	06B1GPP005
EAN	8719774919884
Unit	Metre
Qty. Rounding	5
Long description	Roller chains gopart DIN 8187 simplex
Application range	Drive chain for chain power transmissions Chain conveyors
Properties	Good price/performance ratio
Technical info	Chain available in 5-m lengths
pPitch	9.525 mm
Pitch	3/8 Inch
b1Width inside	5.72 mm
Width inside	7/32 Inch
b2Width inner link	8.53 mm
Width outside	13.5 mm
d2Pin diameter	3.28 mm
d1Roller diameter	6.35 mm
gHeight	8.3 mm
Size code ISO	06 B-1
Min. breaking load according to standard	9000 N
DIN standard	8187
Type	Simplex
Product category	Roller chain
