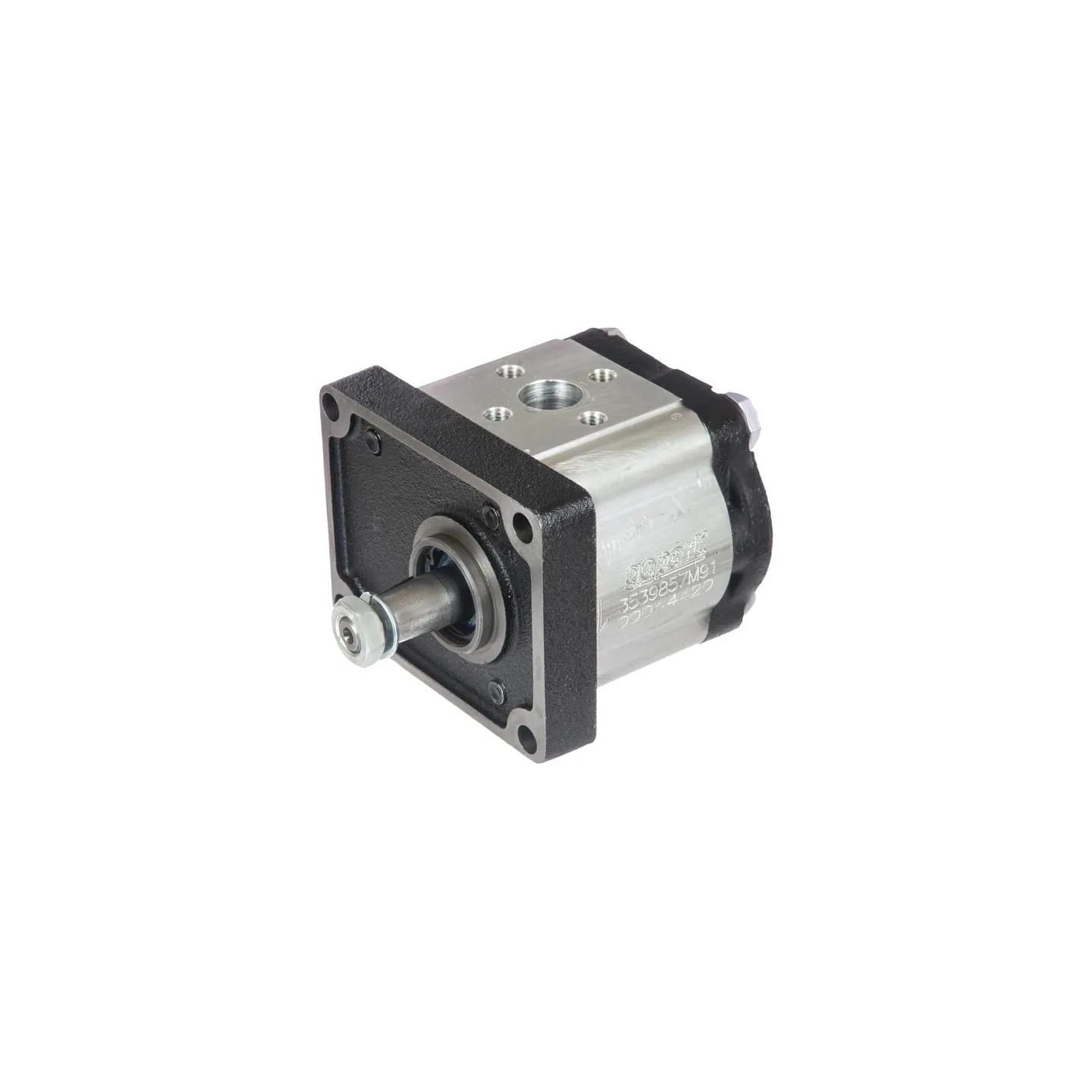

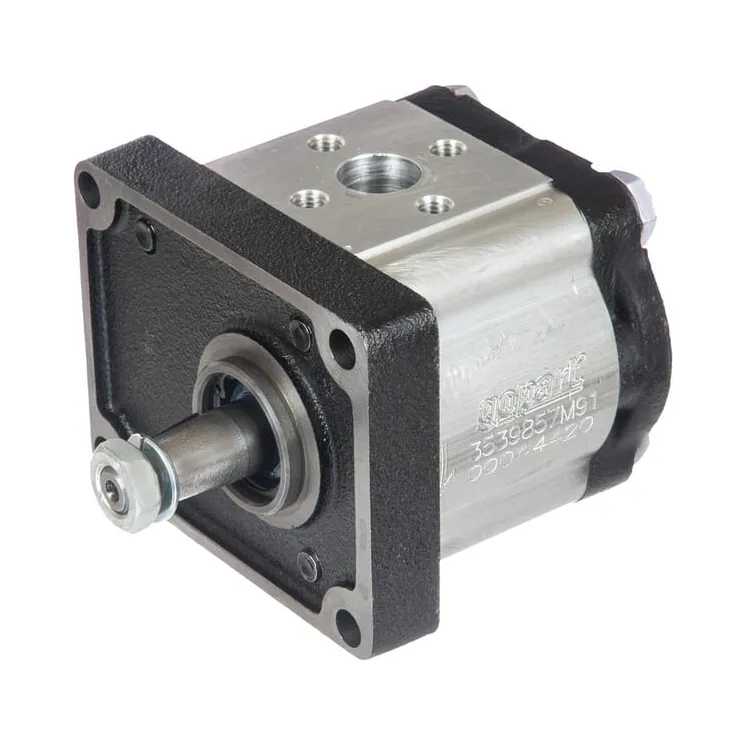

Hidrauliskais sūknis 11,3 ccm 3539857M91N

Name: Hidrauliskais sūknis 11,3 ccm 3539857M91N
Brand: GoPart
SKU: 3539857M91N
Price: 128.5 EUR
Availability: InStock

Apmaksas iespējas

128,50 €

AR PVN

4-5 Darba dienas

Hidrauliskais sūknis 11,3 ccm 3539857M91N gopart 3539857M91

IR NOLIKTAVĀ

ID: 29034

Apraksts

Part number	3539857M91N
EAN	8719493317015
Unit	Each
Flange type norm	European
Number of mounting holes	4
Shaft type	Tapered
Shaft thread diameter	M12
Shaft thread pitch	1.50 mm
Shaft cone size code	1:8
Displacement	11.3 cmÂ³/rev
Sealing type	Standard
Max. continous working pressure	250 BAR
Max intermittend working pressure	280 BAR
Max pressure peak	300 BAR
Max rotation speed	3000 r/min
Min rotation speed	650 r/min
Prefered rotation direction	Clockwise (CW)
Main port size code	1G08
Pressure port size code	2G12
Port position	Side
Housing length	107.4 mm
Connection port to flange distance	48.5 mm
Pressure port bolts circle diameter	30 mm
Suction port bolts circle diameter	40 mm
