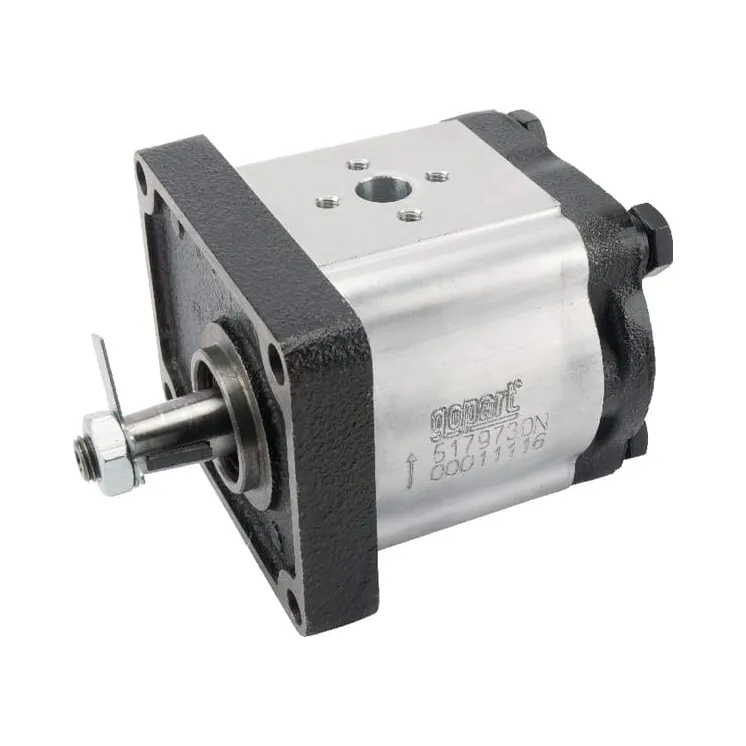

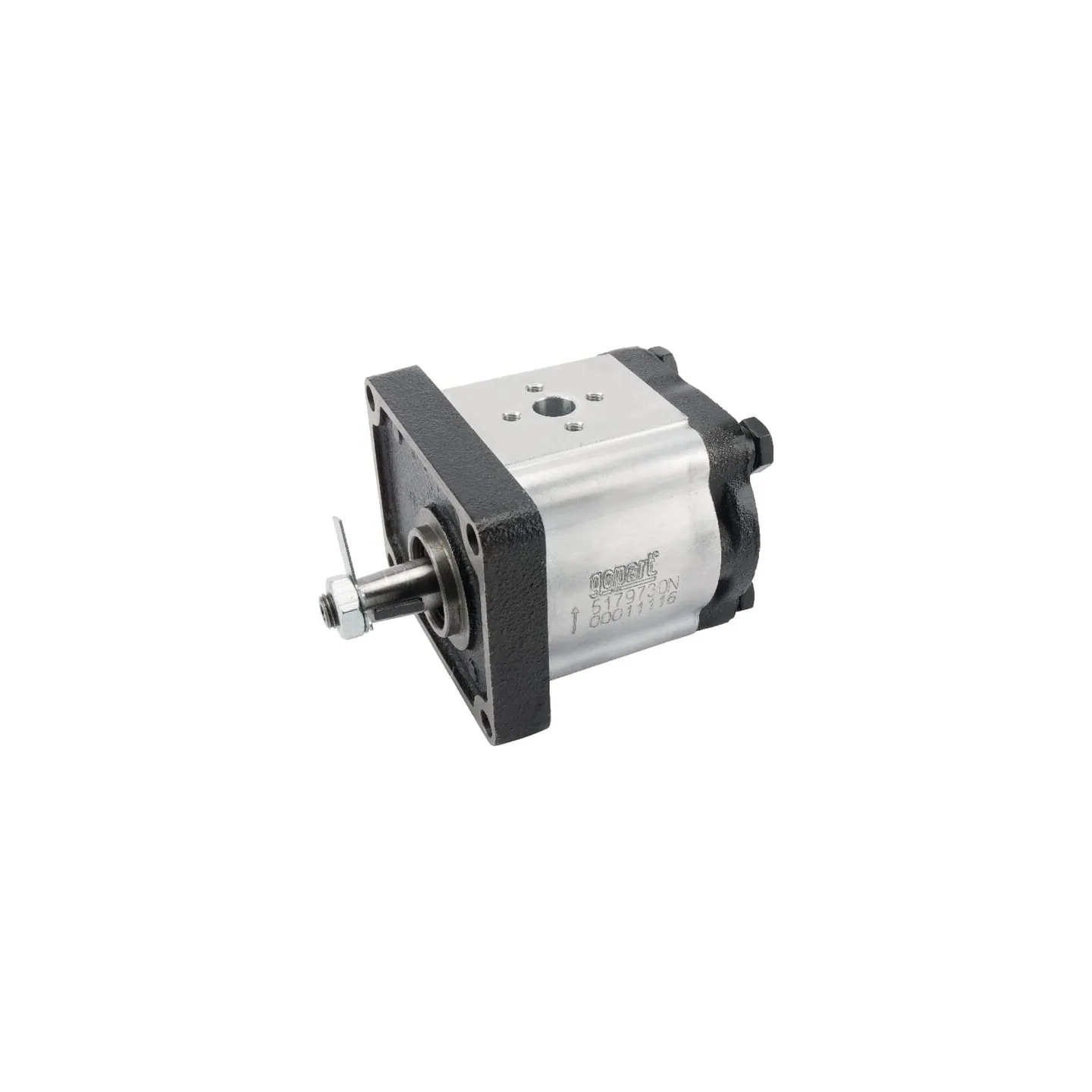

Hidrauliskais sūknis 11,2 cc 3539857M91S

Name: Hidrauliskais sūknis 11,2 cc 3539857M91S
Brand: GoPart
SKU: 3539857M91S
Price: 102.37 EUR
Availability: BackOrder

Apmaksas iespējas

102,37 €

AR PVN

Pēc pieprasījuma

Hidrauliskais sūknis 11,2 cc 3539857M91S gopart

Uz pasūtījumu

ID: 29036

Apraksts

Part number	3539857M91S
EAN	8719493095500
Unit	Each
Flange type norm	European
Number of mounting holes	4
Shaft type	Tapered
Shaft thread diameter	M12
Shaft thread pitch	1.50 mm
Shaft cone size code	1:8
Displacement	11.3 cmÂ³/rev
Sealing type	Standard
Max. continous working pressure	250 BAR
Max intermittend working pressure	280 BAR
Max pressure peak	300 BAR
Max rotation speed	3000 r/min
Min rotation speed	650 r/min
Prefered rotation direction	Clockwise (CW)
Main port size code	1G08
Pressure port size code	1G08
Port position	Side
Housing length	100 mm
Connection port to flange distance	48.5 mm
Pressure port bolts circle diameter	30 mm
Suction port bolts circle diameter	30 mm
Pump group code	2
Extra info	The suction and delivery ports have the same dimensions. For a pump with a larger suction port, use article 3539857M91N.
