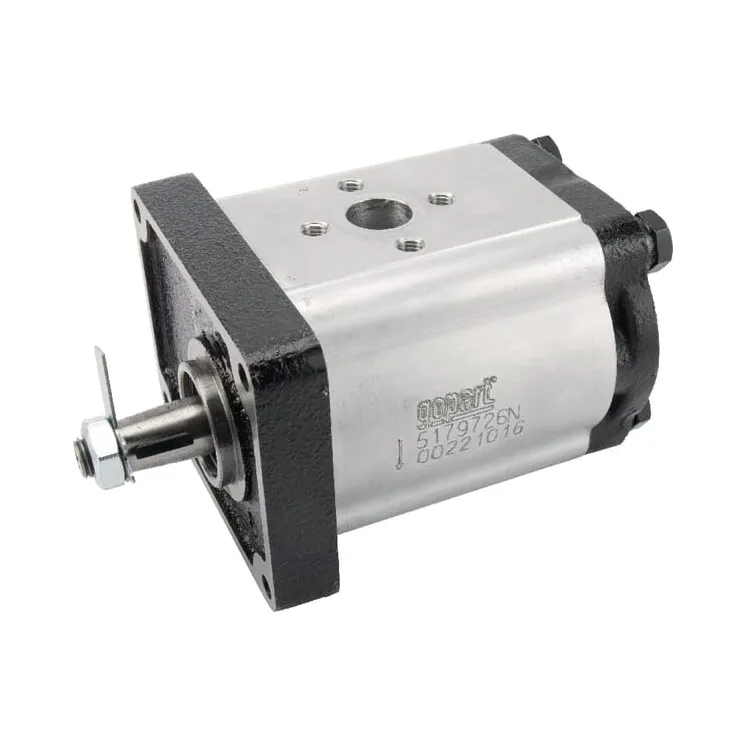

| Part number | 5179726N | |
|---|---|---|
| EAN | ||
| Unit | Each | |
| Flange type norm | European | |
| Number of mounting holes | 4 | |
| Shaft type | Tapered | |
| Shaft thread diameter | M12 | |
| Shaft thread pitch | 1.50 mm | |
| Shaft cone size code | 1:8 | |
| Displacement | 19 cm³/rev | |
| Sealing type | Standard | |
| Max. continous working pressure | 170 BAR | |
| Max intermittend working pressure | 210 BAR | |
| Max pressure peak | 230 BAR | |
| Max rotation speed | 2750 r/min | |
| Min rotation speed | 650 r/min | |
| Prefered rotation direction | Clockwise (CW) | |
| Main port size code | 2G12 | |
| Pressure port size code | 1GB12 | |
| Port position | Side | |
| Housing length | 134.5 mm | |
| Connection port to flange distance | 59 mm | |
| Pressure port bolts circle diameter | 30 mm | |
| Suction port bolts circle diameter | 40 mm |
