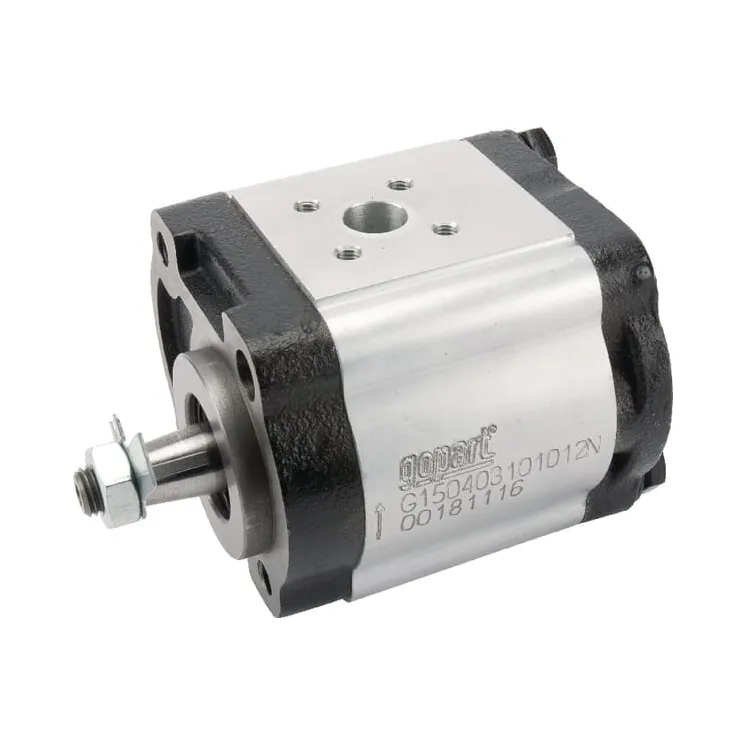

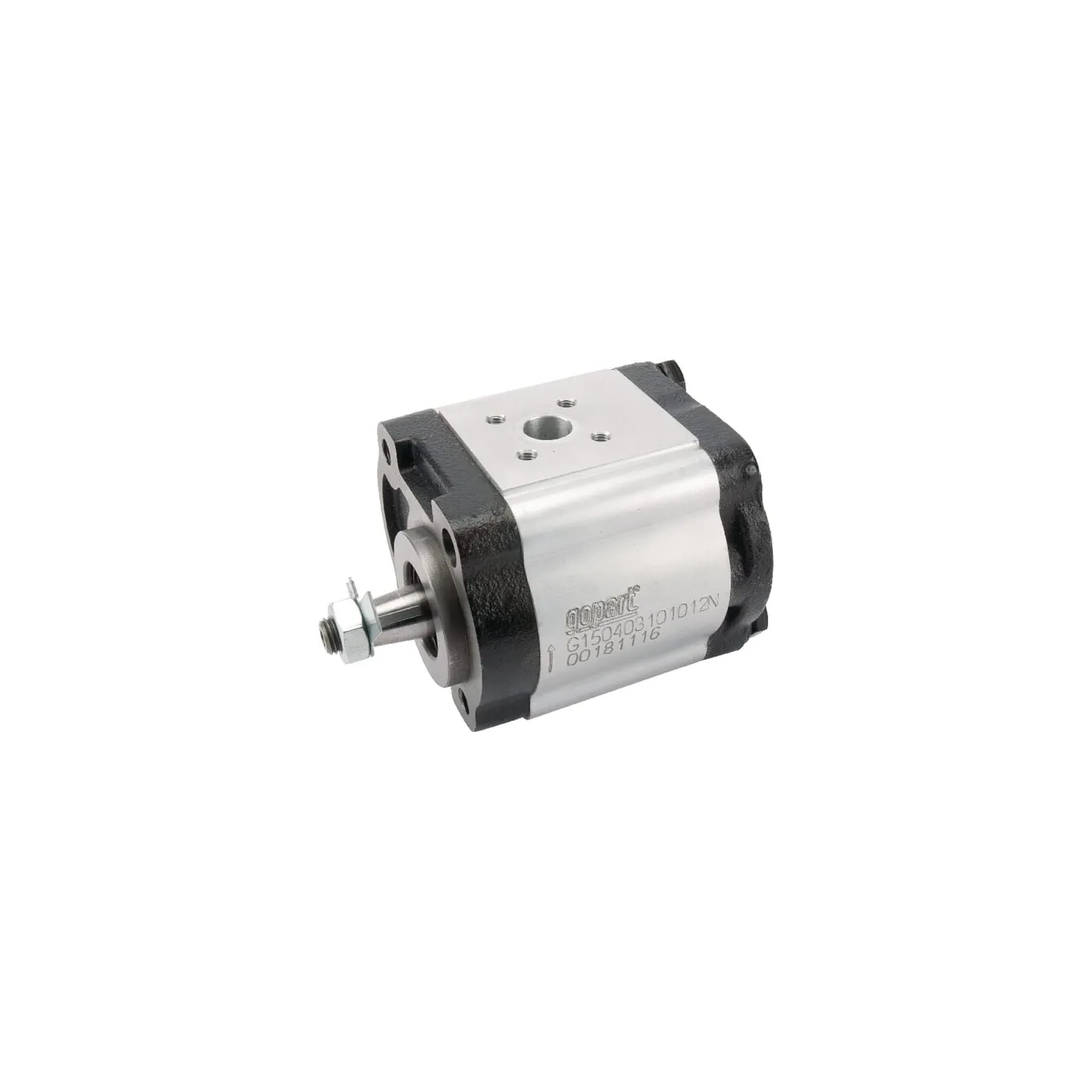

Hidrauliskais sūknis 11,3 ccm G150403101012N

Name: Hidrauliskais sūknis 11,3 ccm G150403101012N
Brand: GoPart
SKU: G150403101012N
Price: 102.2 EUR
Availability: InStock

Apmaksas iespējas

102,20 €

AR PVN

4-5 Darba dienas

Hidrauliskais sūknis 11,3 ccm G150403101012N gopart

IR NOLIKTAVĀ

ID: 30658

Apraksts

Part number	G150403101012N
EAN	8716106853113
Unit	Each
Flange type norm	German
Number of mounting holes	4
Shaft type	Tapered
Shaft thread diameter	M12
Shaft thread pitch	1.50 mm
Shaft cone size code	1:5
Displacement	11.3 cmÂ³/rev
Sealing type	Standard
Max. continous working pressure	250 BAR
Max intermittend working pressure	280 BAR
Max pressure peak	300 BAR
Max rotation speed	3000 r/min
Min rotation speed	650 r/min
Prefered rotation direction	Counter-clockwise (CCW)
Main port size code	2GB12
Pressure port size code	1GB08
Port position	Side
AHousing length	106.4 mm
BConnection port to flange distance	44.5 mm
EPressure port bolts circle diameter	35 mm
DSuction port bolts circle diameter	40 mm
