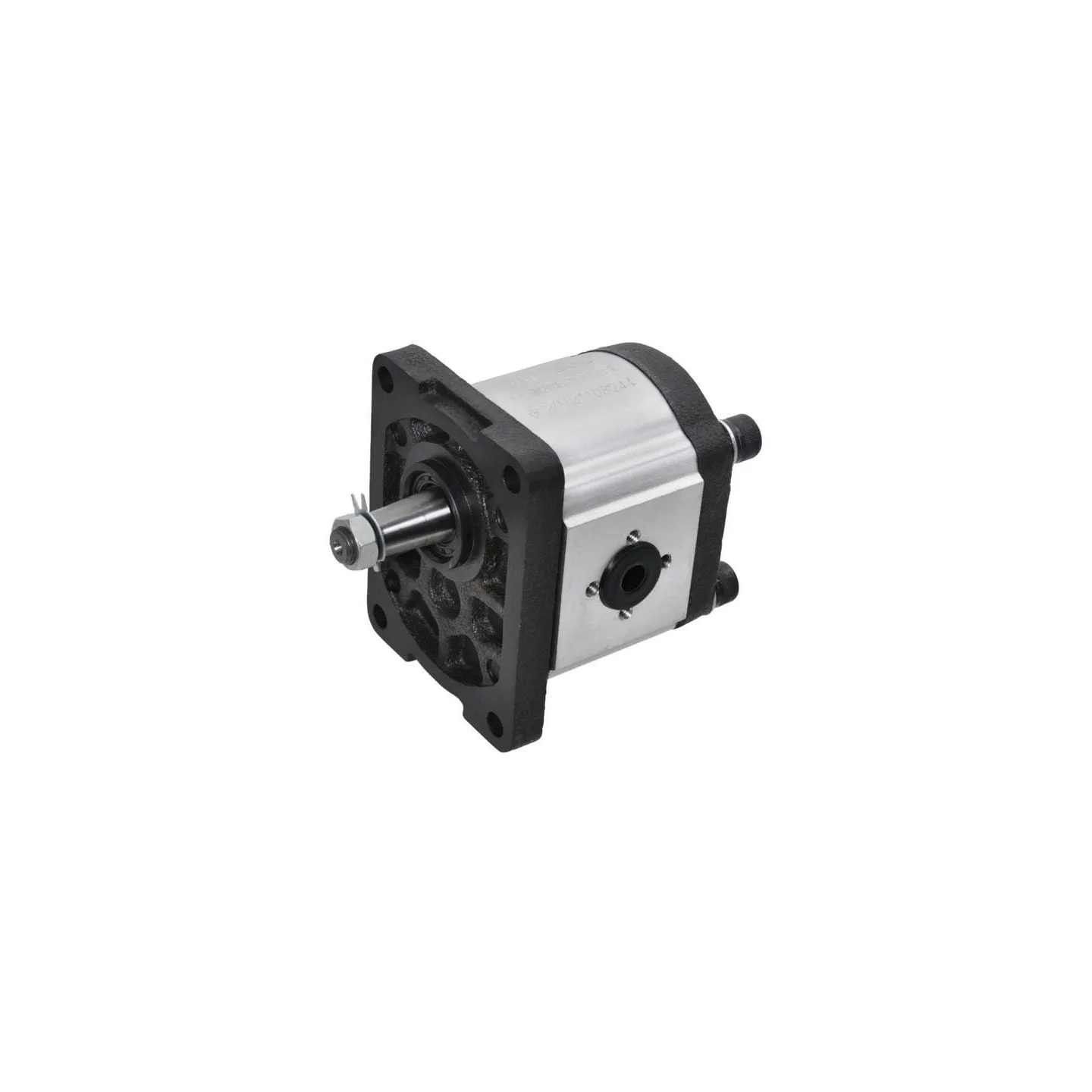

Reduktoru motors Gr2 14cc R C18E GM2014R4040C18EGP

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
152,27 €
AR PVN
Pēc pieprasījuma
Reduktoru motors Gr2 14cc R C18E GM2014R4040C18EGP gopart
Uz pasūtījumu

30722

Part number
GM2014R4040C18EGP
EAN8716106140039
Unit
Each
Technical info
  • Gear motors from gopart can be used in many areas, especially for mobile and industrial applications.
  • Maximum pressure on the leakage oil line: 5 bar
  • The gear motors have two directions of rotation and must have an external leakage oil connection.
ECenter to center pressure side
40 mm
DCenter to center suction side
40 mm
Connection
European 4-hole flange
ALength body
111 mm
BLength flange to center bore
51 mm
Material
Pump housing: Aluminium- Flange and back cover: Steel
Rotation max.
3500 r/min
Rotational speed min.
500 r/min
P1 (bar)
200 BAR
Pressure flange
2G08
Shaft type
Tapered shaft 1 : 8
Stroke volume
14 cm³/rev
Suction flange
2G08
  • Zīmols
  • Norāde
    GM2014R4040C18EGP
  • Stāvoklis
    Jauns
  • EAN
    8716106140039
