Zobratu sūknis Gr1 6cc S C18E GP106S3030C18EGP

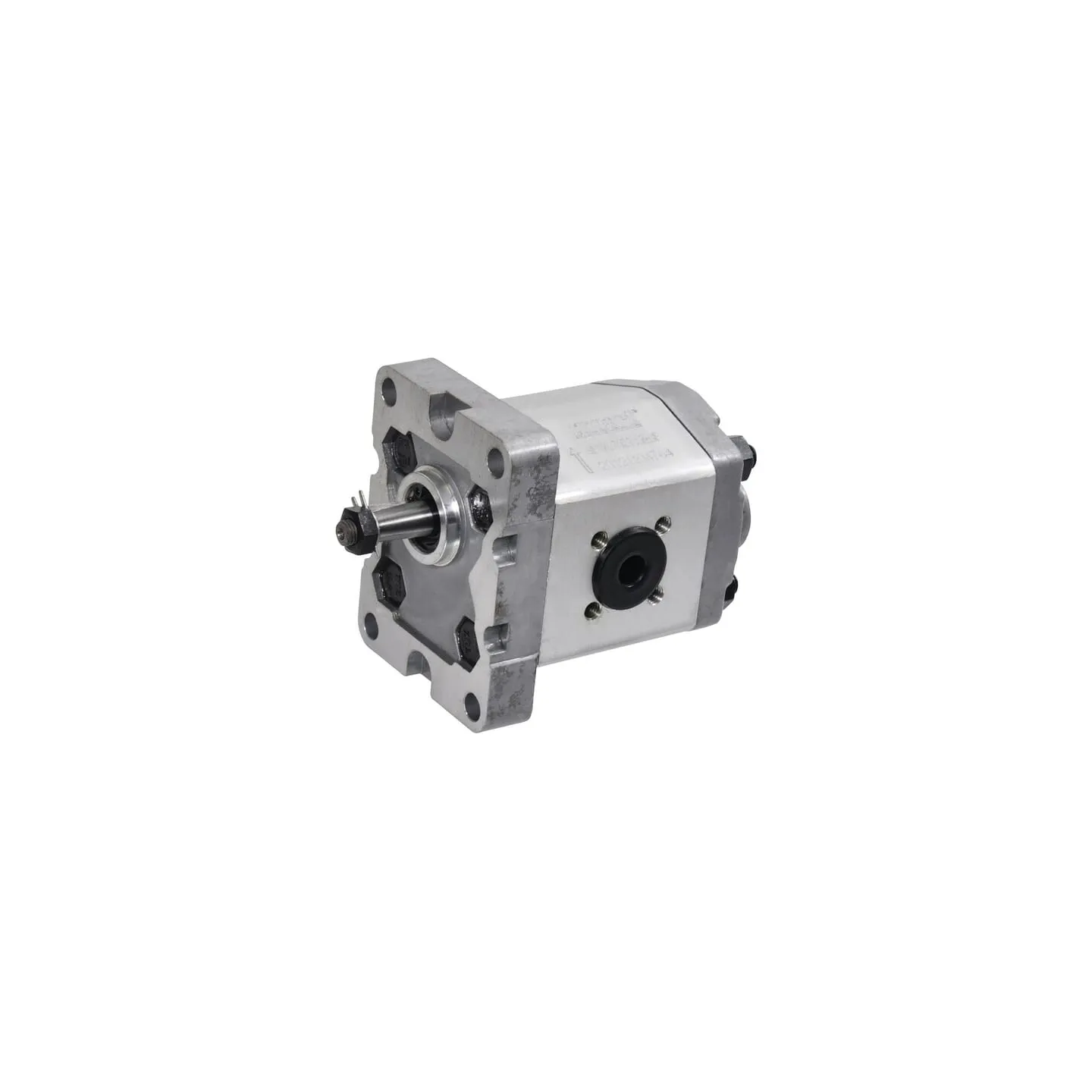

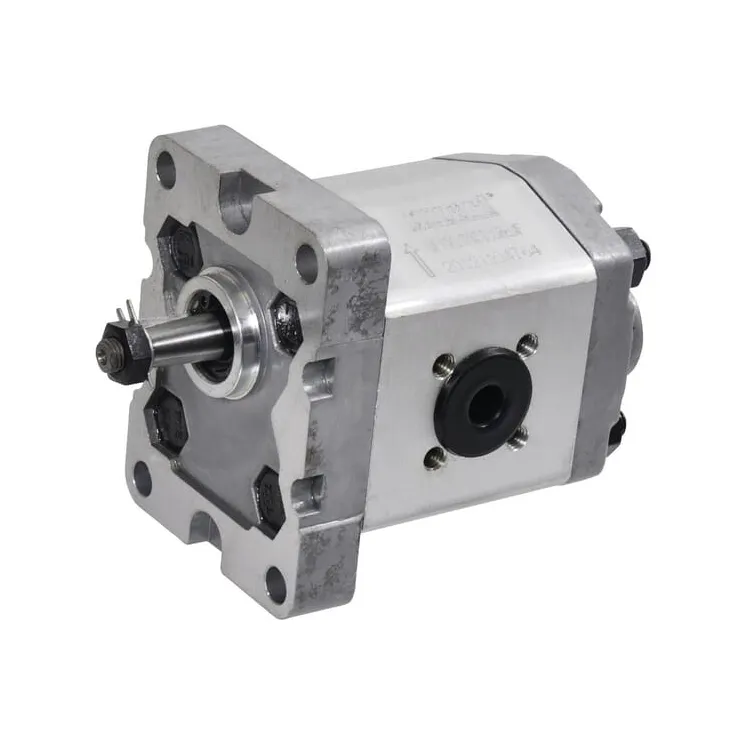

Name: Zobratu sūknis Gr1 6cc S C18E GP106S3030C18EGP
Brand: GoPart
SKU: GP106S3030C18EGP
Price: 59.6 EUR
Availability: InStock

Apmaksas iespējas

59,60 €

AR PVN

4-5 Darba dienas

Zobratu sūknis Gr1 6cc S C18E GP106S3030C18EGP gopart

IR NOLIKTAVĀ

ID: 30729

Apraksts

Part number	GP106S3030C18EGP
EAN	8716106140237
Unit	Each
Application range	Wide range of applications, especially in mobile and industrial applications
Technical info	Gear pumps from gopart can be used in many areas, especially for mobile and industrial applications. The letter D or S in the item description stands for the direction of rotation when looking at the pump shaft: D = clockwise S = anti-clockwise It is not possible to connect gear pumps from group 1 to a multiple-head pump or change them over to a different direction of rotation.
Benefits	Good price/performance ratio
Flange type norm	European
Flange code	E1
Number of mounting holes	4
Shaft type	Tapered
Shaft cone size code	1:8
Displacement	5.8 cmÂ³/rev
Sealing type	Standard
Max. continous working pressure	160 BAR
Max pressure peak	180 BAR
Max rotation speed	3200 r/min
Prefered rotation direction	Counter-clockwise (CCW)
Main port size code	1GQ08
Pressure port size code	1GQ06
Port position	Side
Housing length	93 mm
Housing material	Aluminium
Flange and back cover material	Aluminium
BConnection port to flange distance	43 mm
Pressure port bolts circle diameter	30 mm
Suction port bolts circle diameter	30 mm
Mounting diameter	25.4 mm
