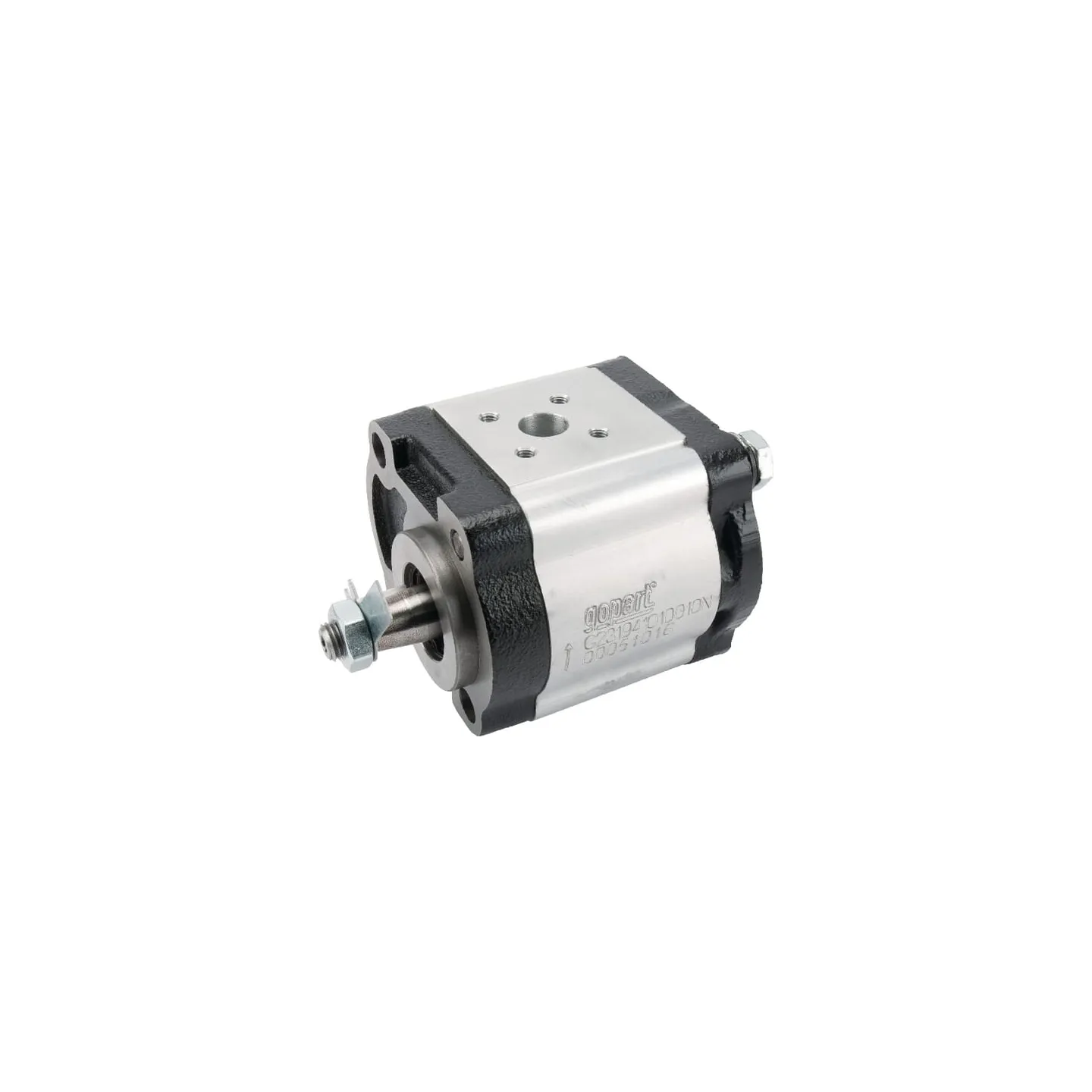

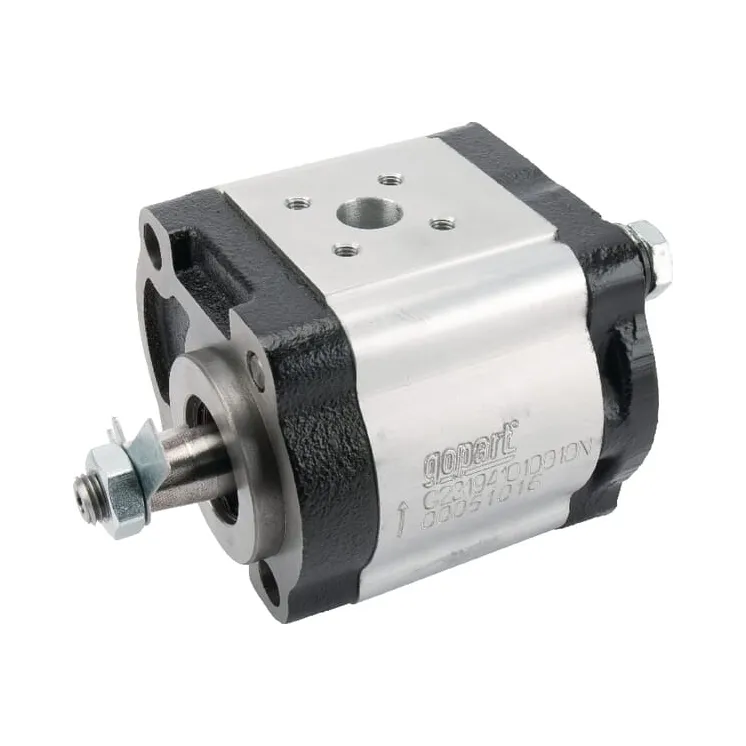

Hidrauliskais sūknis 8,2 ccm G231941010010N

Name: Hidrauliskais sūknis 8,2 ccm G231941010010N
Brand: GoPart
SKU: G231941010010N
Price: 99.73 EUR
Availability: InStock

Apmaksas iespējas

99,73 €

AR PVN

4-5 Darba dienas

Hidrauliskais sūknis 8,2 ccm G231941010010N gopart

IR NOLIKTAVĀ

ID: 30732

Apraksts

Part number	G231941010010N
EAN	8716106853151
Unit	Each
Flange type norm	German
Number of mounting holes	4
Shaft type	Tapered
Shaft thread diameter	M12
Shaft thread pitch	1.50 mm
Shaft cone size code	1:5
Displacement	8.2 cmÂ³/rev
Sealing type	Standard
Max. continous working pressure	250 BAR
Max intermittend working pressure	280 BAR
Max pressure peak	300 BAR
Max rotation speed	3000 r/min
Min rotation speed	650 r/min
Prefered rotation direction	Counter-clockwise (CCW)
Main port size code	2GB12
Pressure port size code	1GB12
Port position	Side
AHousing length	100.7 mm
BConnection port to flange distance	43 mm
EPressure port bolts circle diameter	35 mm
DSuction port bolts circle diameter	40 mm
