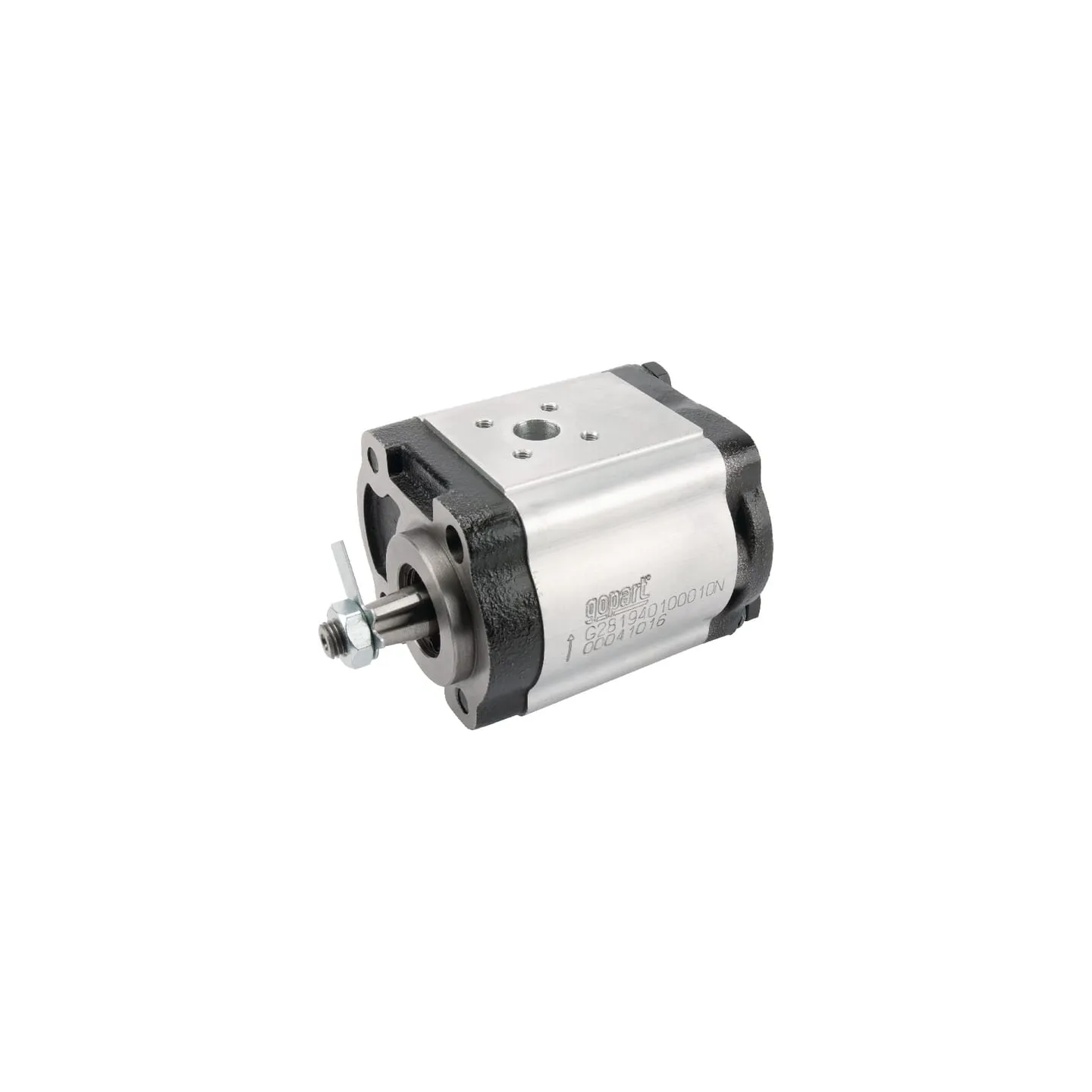

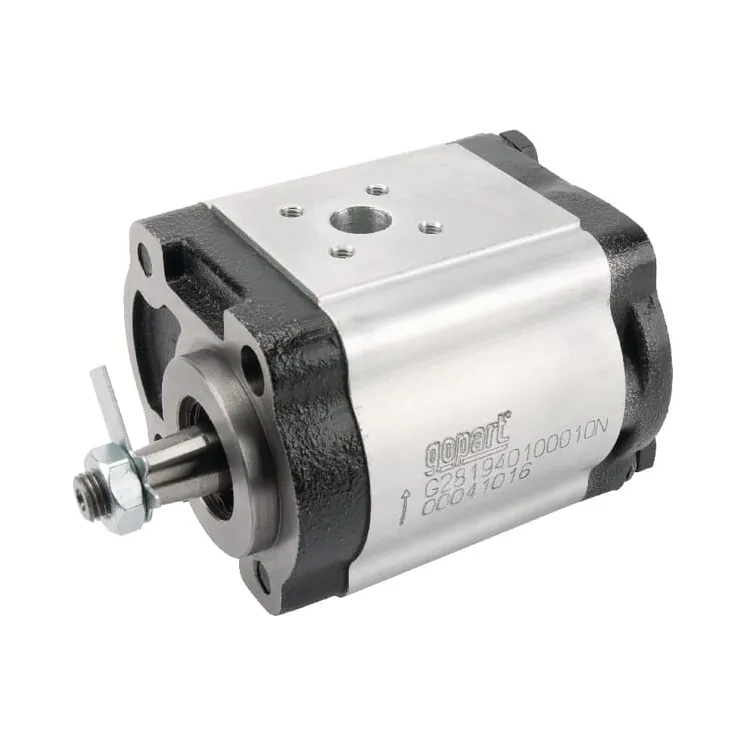

| Part number | G281940100010N | |
|---|---|---|
| EAN | 8716106853168 | |
| Unit | Each | |
| Flange type norm | German | |
| Number of mounting holes | 4 | |
| Shaft type | Tapered | |
| Shaft thread diameter | M12 | |
| Shaft thread pitch | 1.50 mm | |
| Shaft cone size code | 1:5 | |
| Displacement | 16 cm³/rev | |
| Sealing type | Standard | |
| Max. continous working pressure | 250 BAR | |
| Max intermittend working pressure | 280 BAR | |
| Max pressure peak | 300 BAR | |
| Max rotation speed | 3000 r/min | |
| Min rotation speed | 650 r/min | |
| Prefered rotation direction | Counter-clockwise (CCW) | |
| Main port size code | 2GB12 | |
| Pressure port size code | 1GB12 | |
| Port position | Side | |
| AHousing length | 115.9 mm | |
| BConnection port to flange distance | 54.9 mm | |
| EPressure port bolts circle diameter | 35 mm | |
| DSuction port bolts circle diameter | 40 mm |
