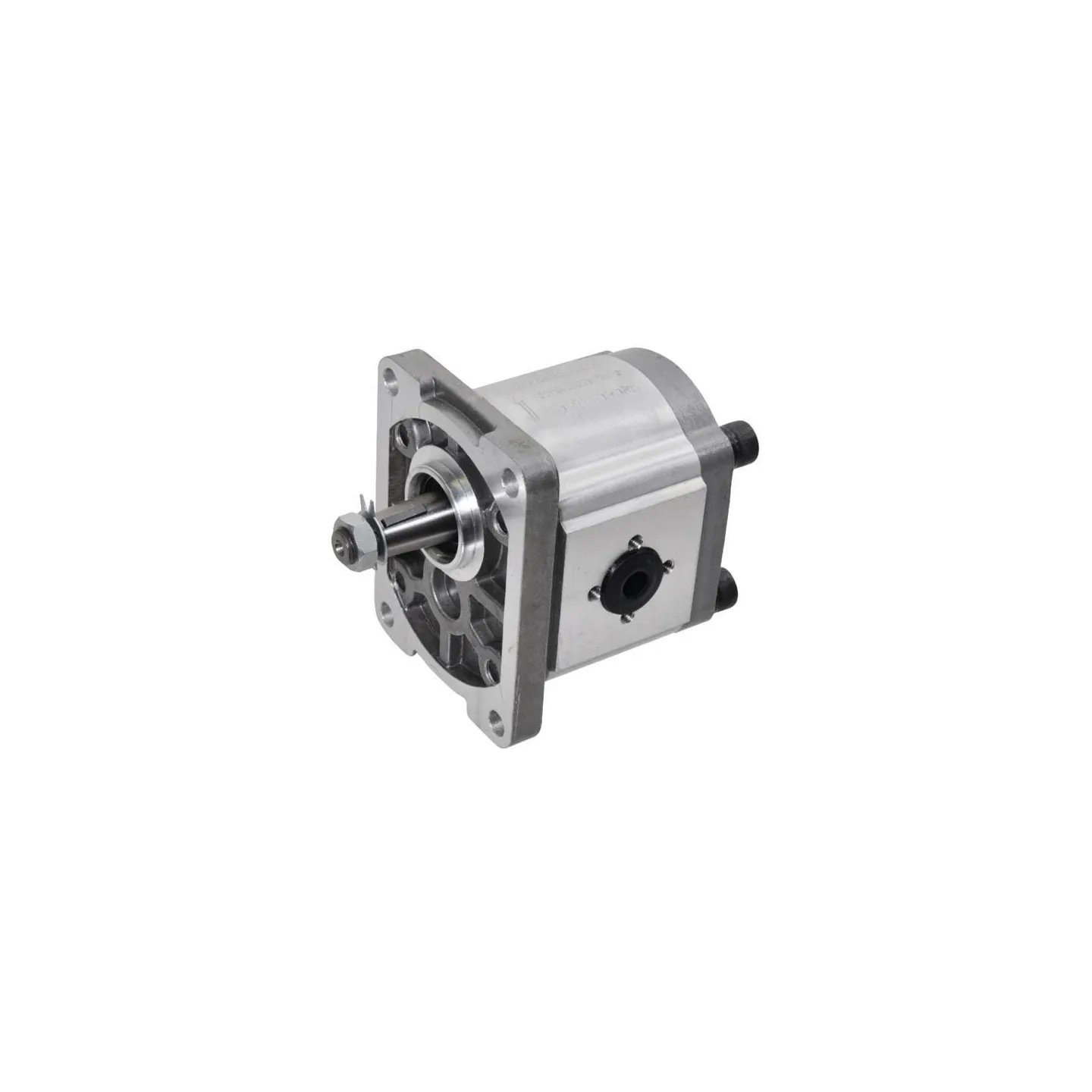

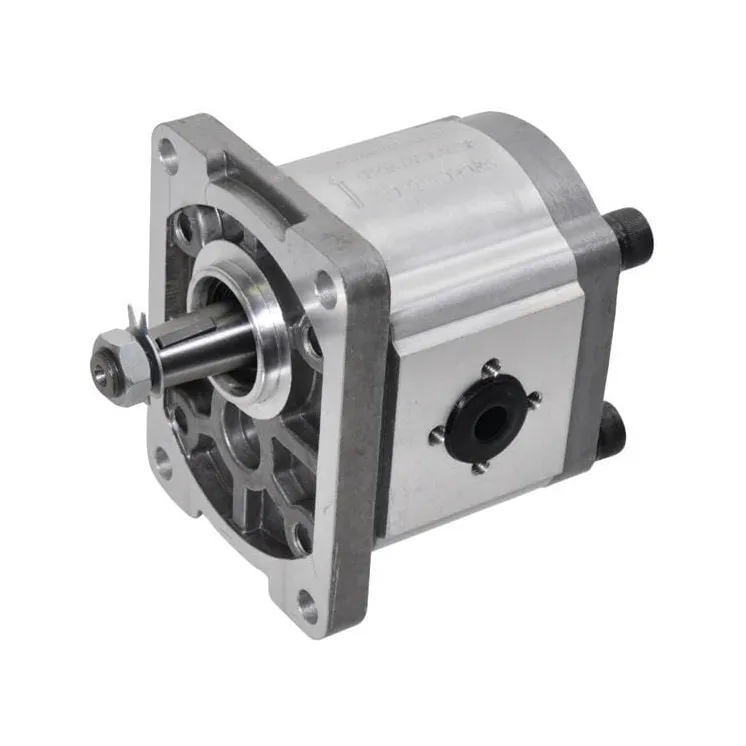

Zobratu sūknis Gr2 8cc D C18E GP208D3030C18EGP

Name: Zobratu sūknis Gr2 8cc D C18E GP208D3030C18EGP
Brand: GoPart
SKU: GP208D3030C18EGP
Price: 92.07 EUR
Availability: InStock

Apmaksas iespējas

92,07 €

AR PVN

4-5 Darba dienas

Zobratu sūknis Gr2 8cc D C18E GP208D3030C18EGP gopart

IR NOLIKTAVĀ

ID: 30756

Apraksts

Part number	GP208D3030C18EGP
EAN	8716106140183
Unit	Each
Pros	Suitable for heavy-duty conditions Wide range of applications Various connection options
Product details	The letter D or S in the item description indicates the direction of rotation when looking at the pump shaft: D = Clockwise S = Anti-clockwise It is not possible to assemble gopart group 2 gear pumps into multiple pumps.
Flange type norm	European
Flange code	E2
Number of mounting holes	4
Shaft type	Tapered
Shaft cone size code	1:8
Displacement	8 cmÂ³/rev
Sealing type	Standard
Max. continous working pressure	180 BAR
Max pressure peak	230 BAR
Max rotation speed	3300 r/min
Prefered rotation direction	Clockwise (CW)
Main port size code	1G08
Pressure port size code	1G08
Port position	Side
Housing length	102 mm
Housing material	Aluminium
Flange and back cover material	Steel
BConnection port to flange distance	46.5 mm
Pressure port bolts circle diameter	30 mm
DSuction port bolts circle diameter	30 mm
Mounting diameter	36.5 mm
