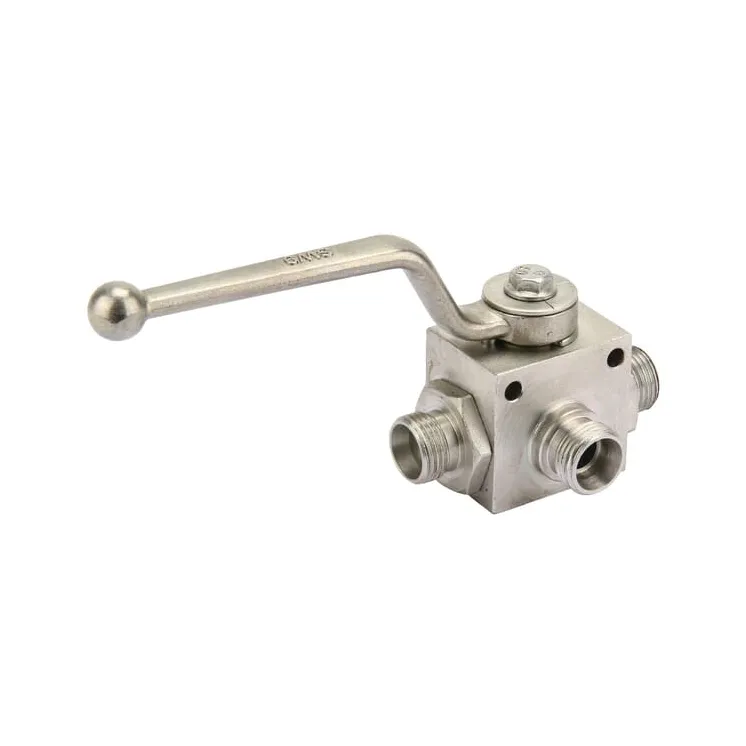

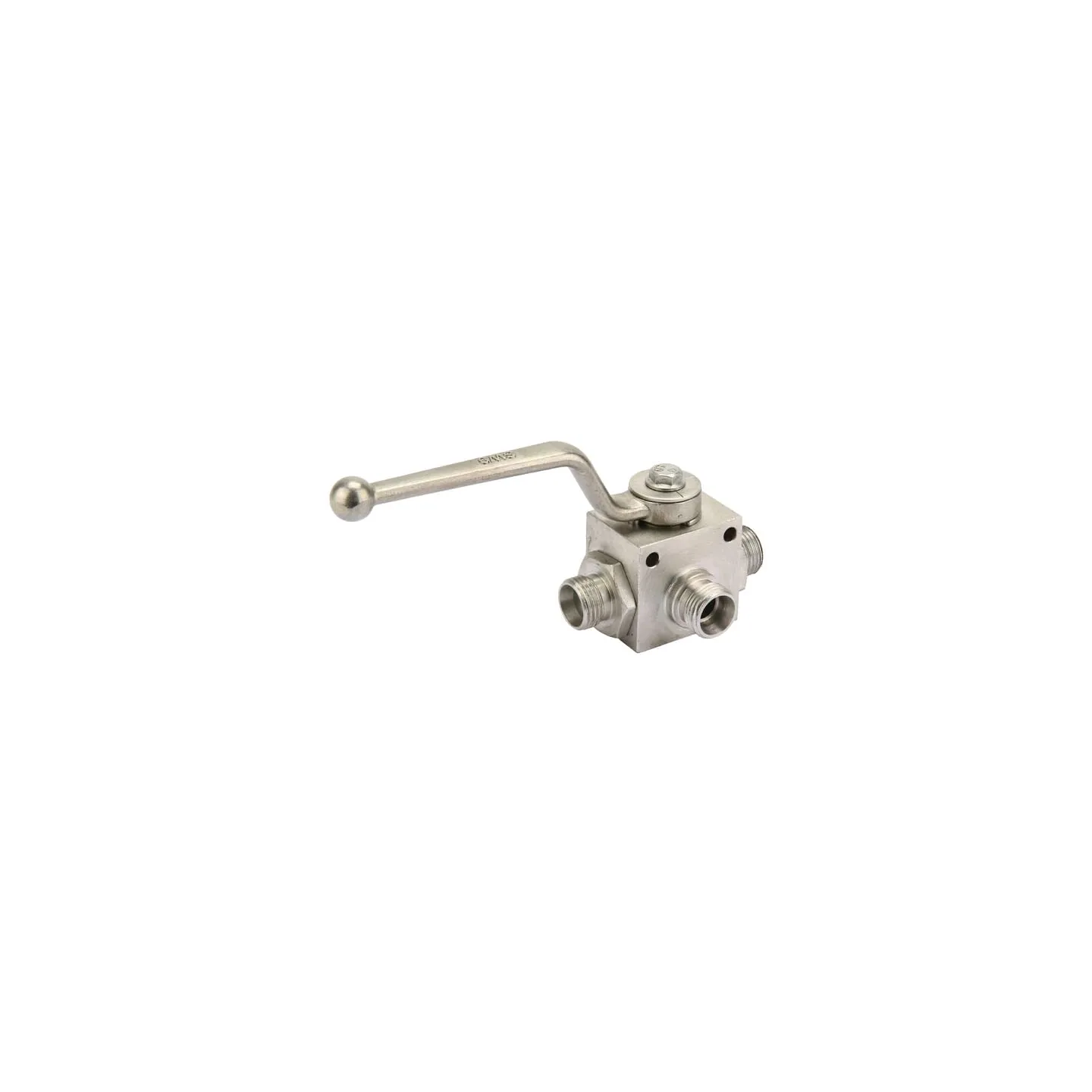

Lodveida vārsts L-Form 3 Way KH3KS10LN

Name: Lodveida vārsts L-Form 3 Way KH3KS10LN
Brand: GoPart
SKU: KH3KS10LN
Price: 12.16 EUR
Availability: InStock

Apmaksas iespējas

12,16 €

AR PVN

4-5 Darba dienas

Lodveida vārsts L-Form 3 Way KH3KS10LN gopart C000K3S10LN

IR NOLIKTAVĀ

ID: 30865

Apraksts

Part number	KH3KS10LN
EAN
Unit	Each
Details	The ball is clamped between 2 pre-tensioned seal rings
Application range	Depends on selected material Hydraulic systems
Properties	L bore
Technical info	Available in stainless steel on request Never close middle connection Only use the middle connection as the 'P' connection
Benefits	Absolute seal at high pressures
Long description	Application range: Depends on selected material Hydraulic systems Benefits: Absolute seal at high pressures Consists of: Ball valve Lever Details: The ball is cla
Number of positions	2
Number of ports	3
Type	Manual valve
Consists of	Ball valve Lever
Max working pressure	500 BAR
Connection type	Thread
Connection thread diameter	M16
LConnection wrench/spanner size	22.0 mm
MConnection 2, wrench/spanner size	9.0 mm
Nominal inner diameter	8 mm
ATotal length	62 mm
EHousing length	42 mm
Housing width	32 mm
CHousing height	40 mm
Dedicated pipe diameter	10 mm
