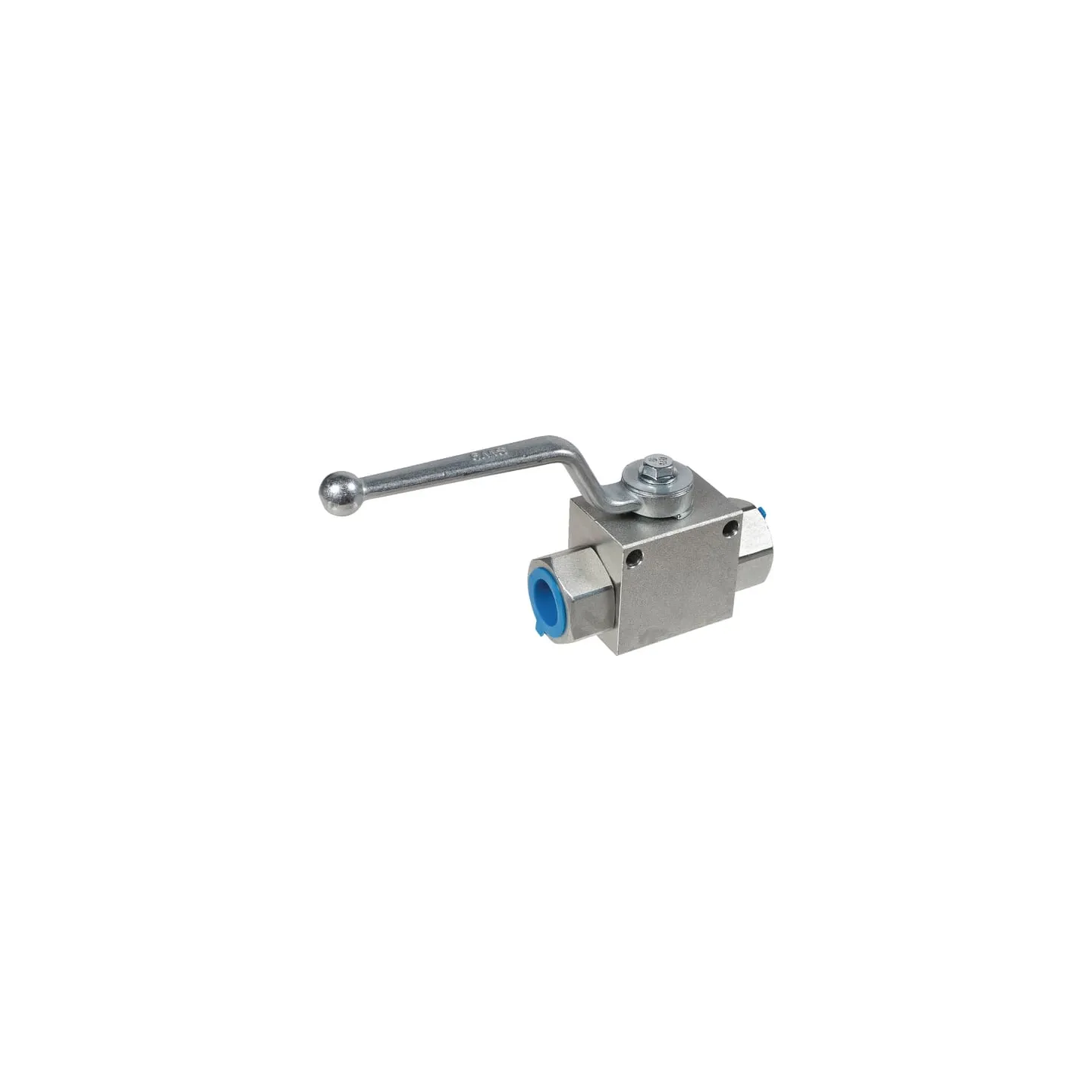

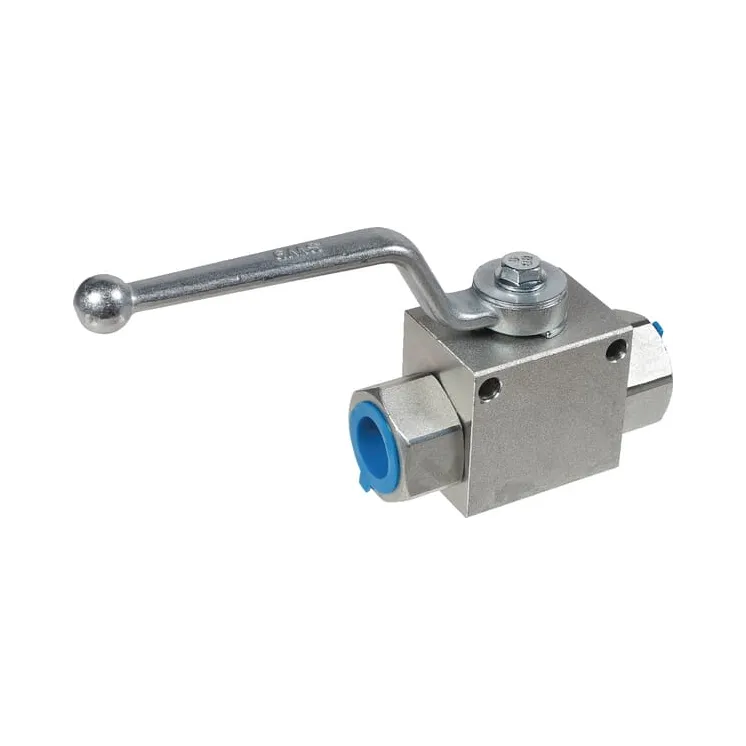

Lodveida vārsts 2-way 3/4 BSP KHR12N

Name: Lodveida vārsts 2-way 3/4 BSP KHR12N
Brand: GoPart
SKU: KHR12N
Price: 39.78 EUR
Availability: InStock

Apmaksas iespējas

39,78 €

AR PVN

4-5 Darba dienas

Lodveida vārsts 2-way 3/4 BSP KHR12N gopart C000KHS34

IR NOLIKTAVĀ

ID: 30866

Apraksts

Part number	KHR12N
EAN
Unit	Each
Product details	Absolute density at high pressures Ball is clamped between 2 pre-tensioned seal rings
Number of positions	2
Number of ports	2
Type	Manual valve
Housing material	Steel
Housing surface treatment	Yellow passivated
Max working pressure	500 BAR
Connection type	Thread
Connection thread type	G
Connection thread diameter	3/4 Inch
Connection wrench/spanner size	12.0 mm
Connection 2, wrench/spanner size	41.0 mm
Nominal inner diameter	20 mm
Min medium temperature	-25 Â°C
Max medium temperature	100 Â°C
Safety factor code	3.0
