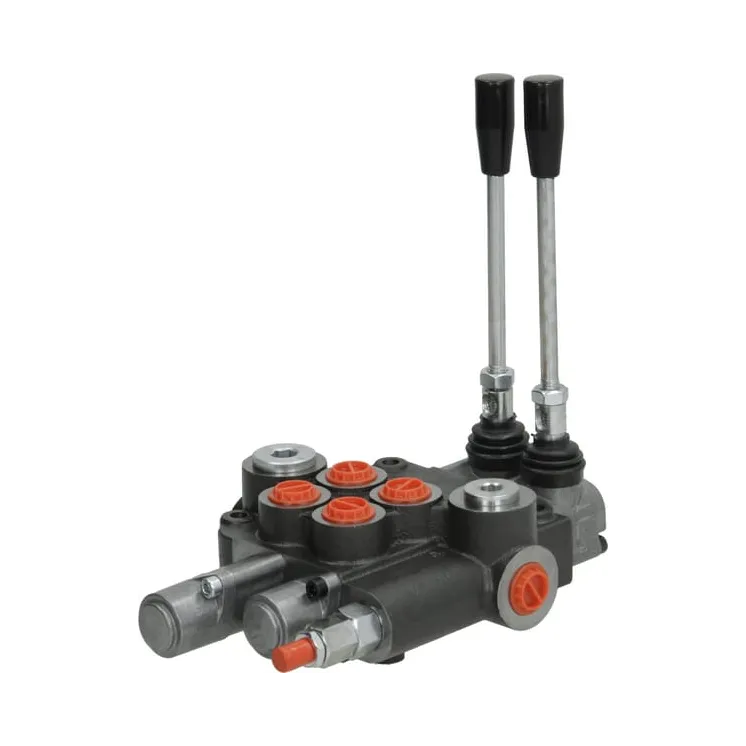

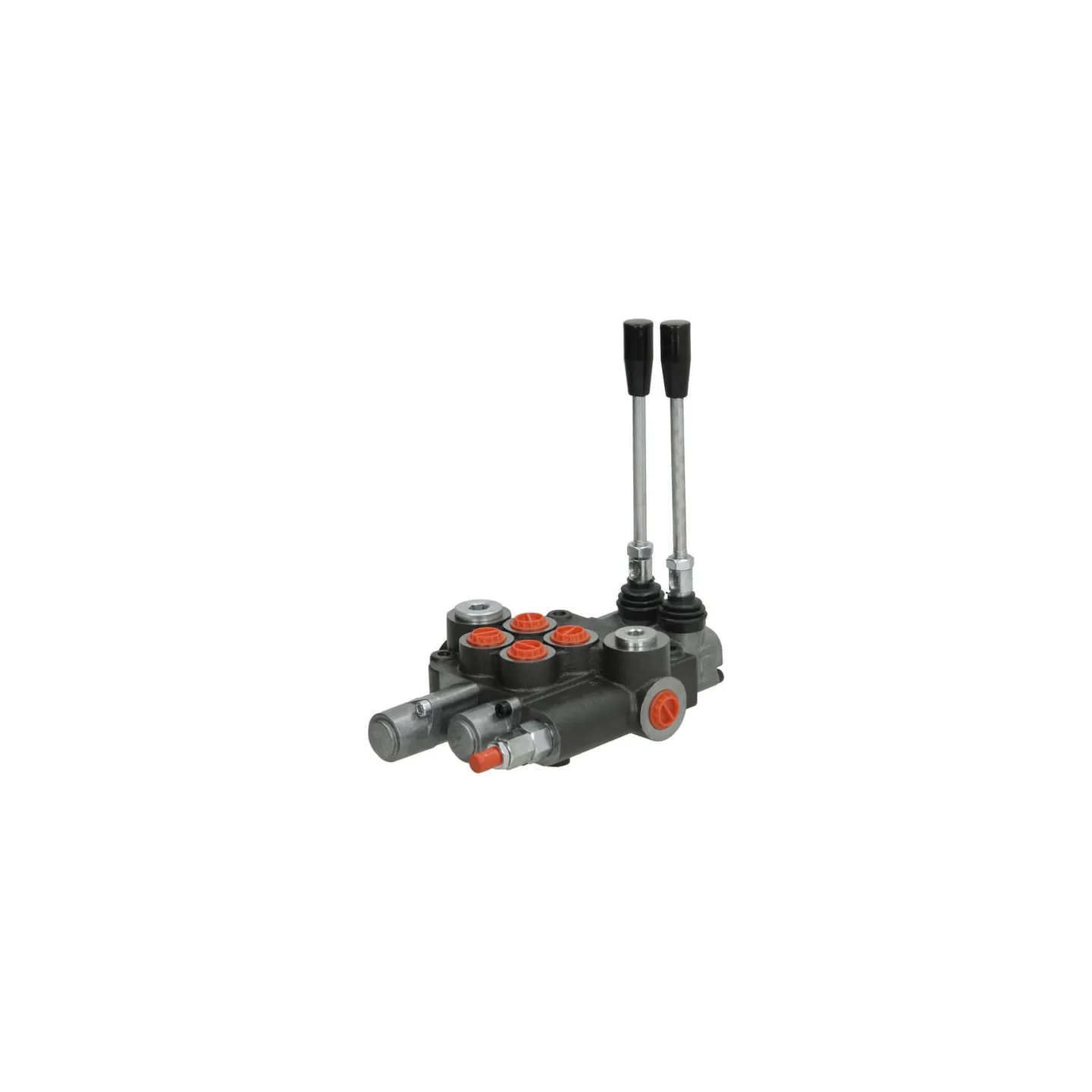

Vadības vārsts MBV11 A1L12G KZ1 MBV112002GP

Name: Vadības vārsts MBV11 A1L12G KZ1 MBV112002GP
Brand: GoPart
SKU: MBV112002GP
Price: 163.19 EUR
Availability: InStock

Apmaksas iespējas

163,19 €

AR PVN

4-5 Darba dienas

Vadības vārsts MBV11 A1L12G KZ1 MBV112002GP gopart

IR NOLIKTAVĀ

ID: 31147

Apraksts

Part number	MBV112002GP
EAN	8716106307296
Unit	Each
Application range	Hydraulic applications with large oil quantities Wood splitters Tipping trailers Vehicle construction
Properties	Robust monoblock construction Main pressure relief valve and check valve in P-channel Suitable for open systems (can be converted for closed systems) Can be customised for many application areas
Technical info	Working pressure setting at 180 bar
Number of sections	4
Plunger type code	A1
Max. flow rate	80 l/min
Consists of	Control valve Control lever
Max working pressure	300 BAR
Outlet port option	Open circuit
Sealing material	Nitrile rubber [NBR]
Mounting holes distance	103 mm
Adjustment type	Socket screw
Workport A - Thread diamter	1/2 Inch
Workport A - Thread type	BSP
Workport B - Thread diamter	3/4 Inch
Workport B - Thread type	BSP
Total height	67 mm
Total width	160 mm
Handle length	80 mm
Max. leakage	6 cmÂ³/min
Extra info	1 x double acting, spring return - 1 x double acting with 4th pos floating
