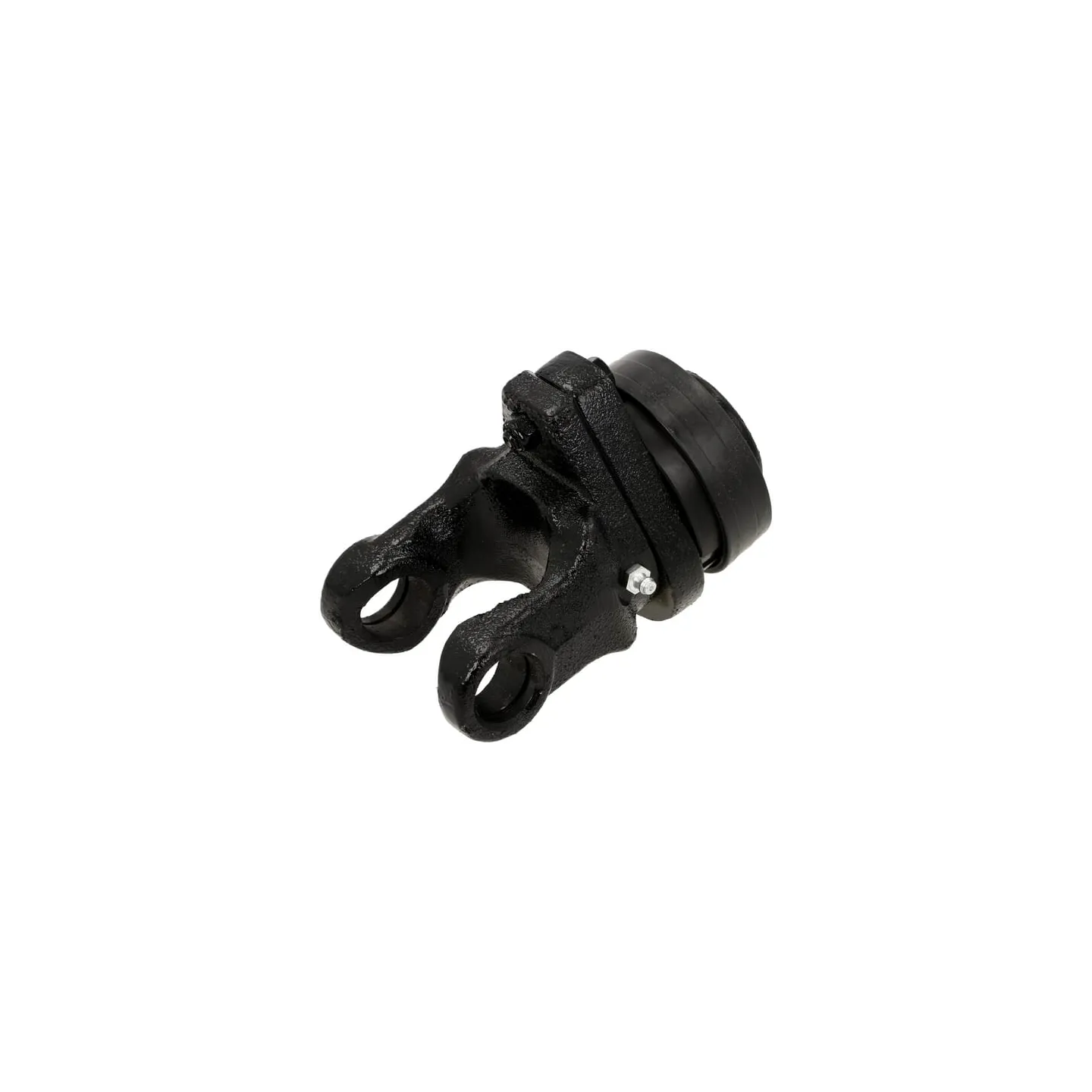

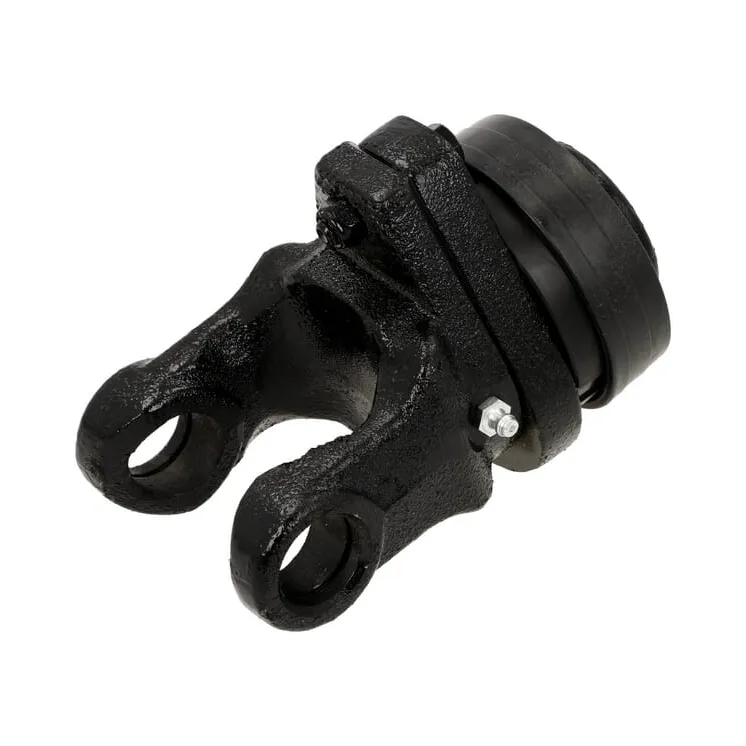

PTO20 Šķērsskrūves sajūgs PTO920Y21SBCGP

Name: PTO20 Šķērsskrūves sajūgs PTO920Y21SBCGP
Brand: GoPart
SKU: PTO920Y21SBCGP
Price: 57.31 EUR
Availability: InStock

Apmaksas iespējas

57,31 €

AR PVN

4-5 Darba dienas

PTO20 Šķērsskrūves sajūgs PTO920Y21SBCGP gopart PTO920SBCGP

IR NOLIKTAVĀ

ID: 31178

Apraksts

Part number	PTO920Y21SBCGP
EAN	8719493073973
Unit	Each
Long description	Shear bolt clutches complete for manure pumps, shredders and light balers, among others.
Details	Drive fully disconnected Repairable by replacing a shear bolt
Pros	Prevents against subsequent damage Easy to repair
Product details	Protects against blockages and overload Power transmission via shear bolt Drive fully disconnected Repairable by replacing a shear bolt Independent rotation direction
Application range	Fertiliser pump Shredder Light balers
Properties	Regardless of direction of rotation Power transmission via shear bolts
Technical info	Protects against blockages and overload
Benefits	Prevents against subsequent damage Easy to start up
Max static torque	900 NÂ·m
Share bolts thread diameter	M8
Shear bolts thread pitch	1.25 mm
Share bolts thread length	50
Shear bolts quality	8.8
Shaft size code	PTO 20
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
