Kardānvārpsta jūgvārpsta 10 L: 560 mm, PTO10Y21T560GP gopart 4600T10510AC12112 4600T10525AC12112 PTO10T560GP
search
  • Kardānvārpsta jūgvārpsta 10 L: 560 mm, PTO10Y21T560GP gopart 4600T10510AC12112 4600T10525AC12112 PTO10T560GP

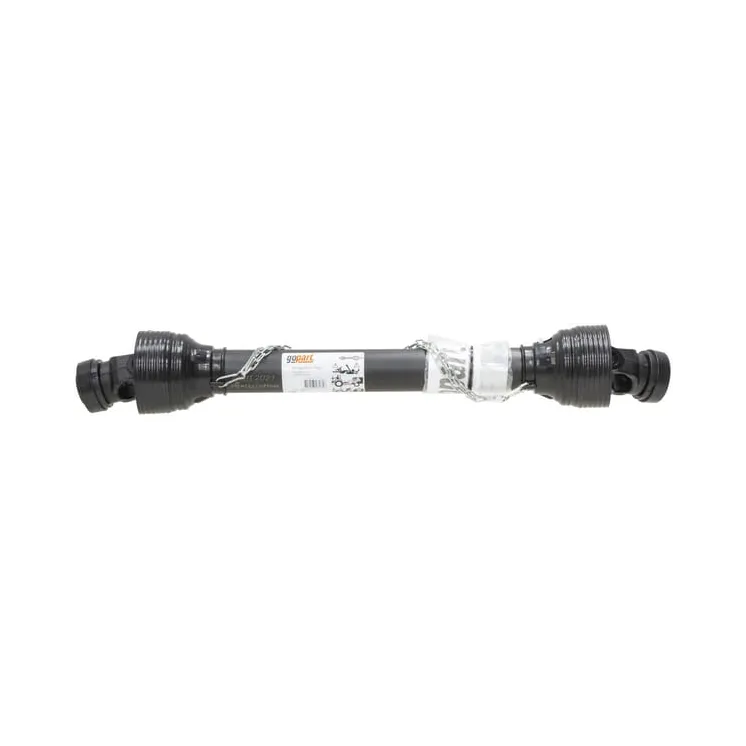

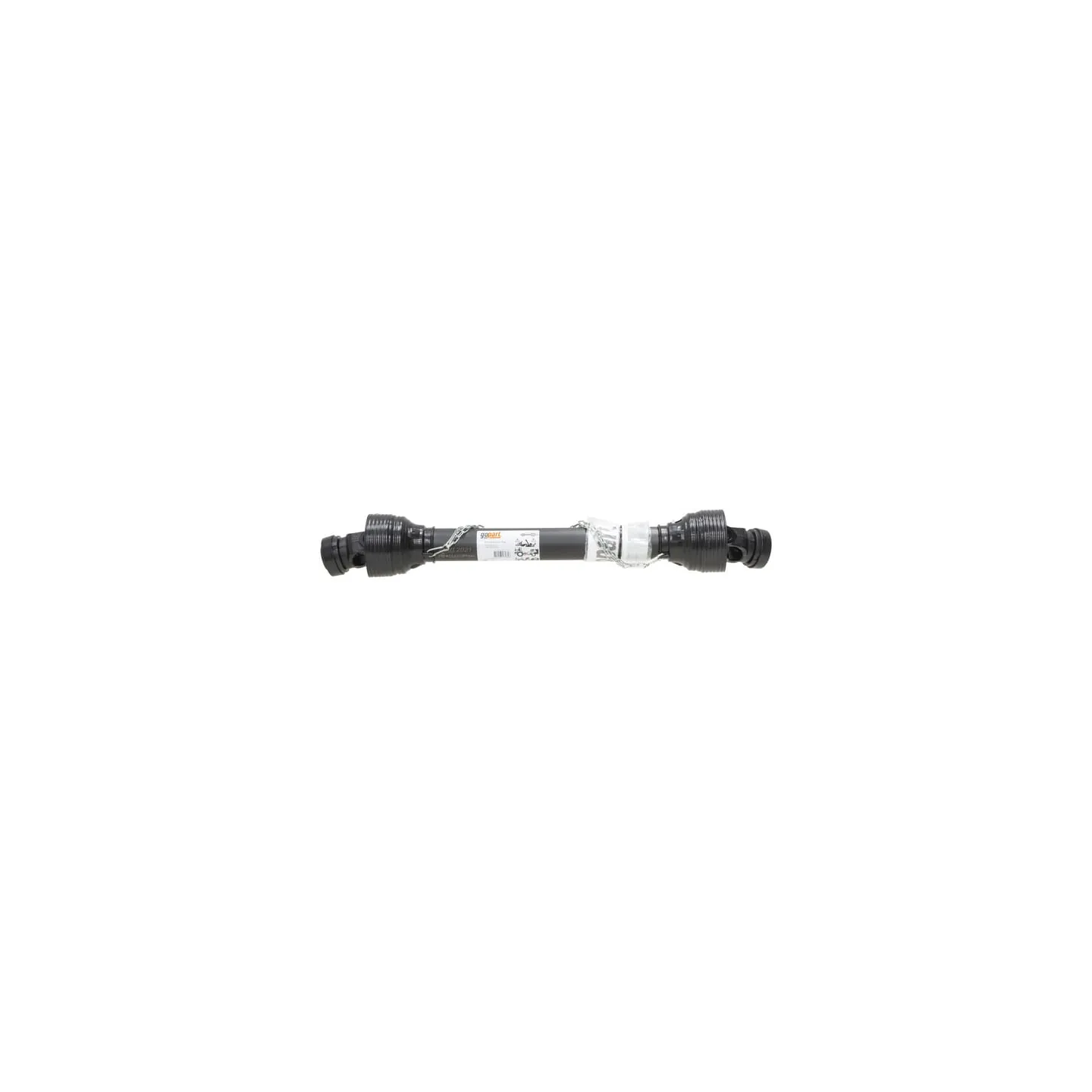

Kardānvārpsta jūgvārpsta 10 L: 560 mm, PTO10Y21T560GP

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
75,88 €
AR PVN
4-5 Darba dienas
Kardānvārpsta jūgvārpsta 10 L: 560 mm, PTO10Y21T560GP gopart 4600T10510AC12112 4600T10525AC12112 PTO10T560GP
IR NOLIKTAVĀ

31184

  • Zīmols
  • Norāde
    PTO10Y21T560GP
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    4600T10510AC12112 4600T10525AC12112 PTO10T560GP
  • EAN
    8719493074703
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
PTO10Y21T560GP
EAN8719493074703
Unit
Each
Long description
  • PTO shafts standard series 10 for log splitters, crop sprayers and fertiliser spreaders etc.
  • A cost-effective alternative in the lower power range
Details
Good price/performance ratio
Pros
Good value for money
Product details
  • Meets all international safety requirements
  • Provided with "CE" marking
  • Max. dyn. power 540 rpm: 12kW - 210Nm
  • Max. dyn. Power 1000 rpm: 18kW - 170Nm
Application range
  • Wood splitter
  • Crop sprayer
  • Chemical fertiliser spreaders
Properties
  • Fulfils all international safety requirements
  • CE marking available
Technical info
  • Max. dynamic capacity 540 rpm: 12 kW, 210 Nm
  • Max. dynamic capacity 1000 rpm: 18 kW, 170 Nm
Benefits
Cost-effective alternative in lower capacity range
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
PTO 10
Length
560 mm
Power 540 rpm
12 kW
Power 1000 rpm
18 kW
Cross joint bush diameter by tractor side
22 mm
Cross joint length by tractor side
54 mm
Cross joint bush diameter by machine side
22 mm
Cross joint length by machine side
54 mm
Clutch type
n/a
Outer tube wall thickness
3.2 mm
Outer tube large outside diameter
36 mm
Inner tube wall thickness
4 mm
Inner tube large outside diameter
29 mm
Profile tube shape
Triangular
Max dynamic torque
320 N·m
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
