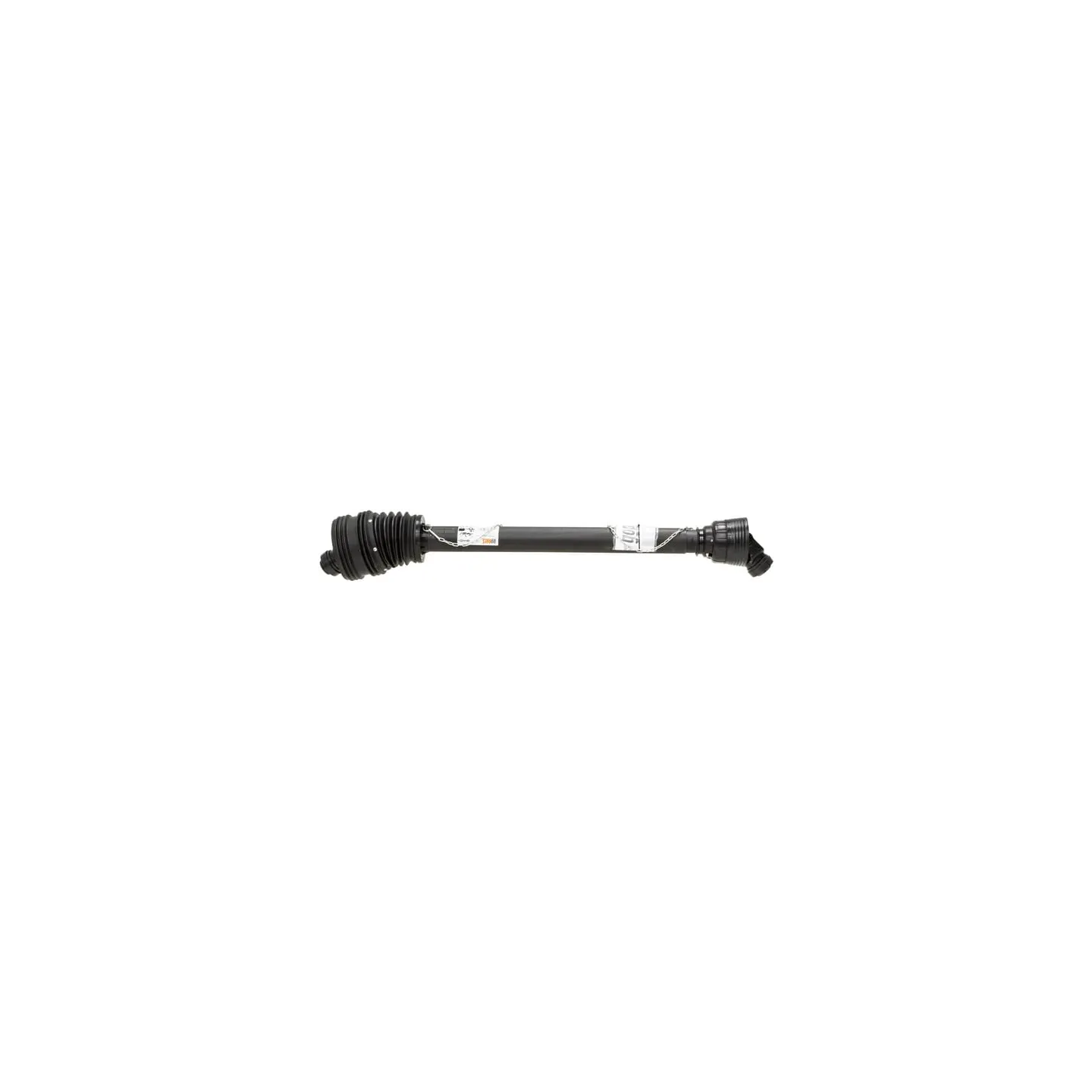

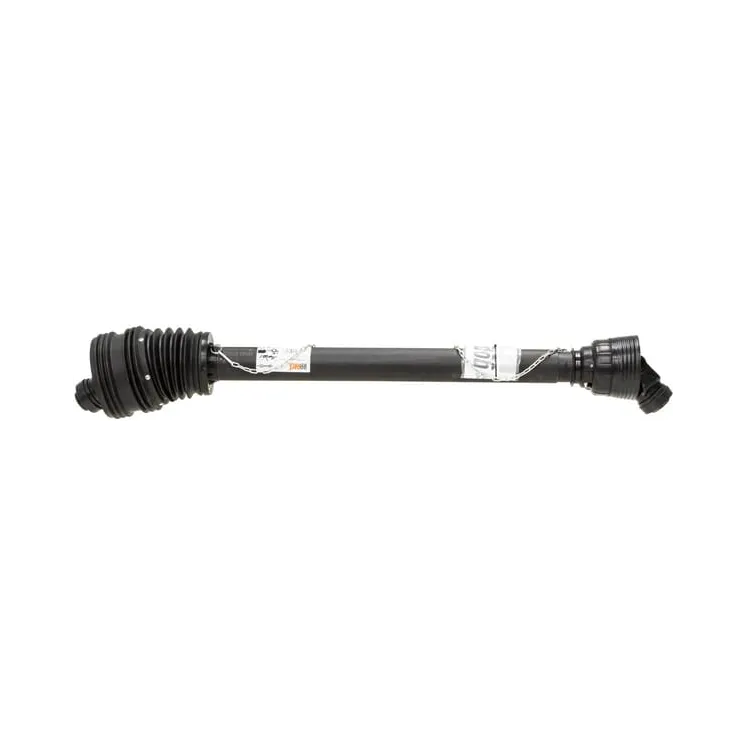

Platleņķa kardānvārpsta jūgvārpsta 50 L: 860mm, PTO50Y22TWS860GP

Name: Platleņķa kardānvārpsta jūgvārpsta 50 L: 860mm, PTO50Y22TWS860GP
Brand: GoPart
SKU: PTO50Y22TWS860GP
Price: 350.19 EUR
Availability: InStock

Apmaksas iespējas

350,19 €

AR PVN

4-5 Darba dienas

Platleņķa kardānvārpsta jūgvārpsta 50 L: 860mm, PTO50Y22TWS860GP gopart PTO50TWS860GP PTO50Y21TWS860GP

IR NOLIKTAVĀ

ID: 31211

Apraksts

Part number	PTO50Y22TWS860GP
EAN	8719493114256
Unit	Each
Long description	Wide-angle PTO shaft series 50 cost-effective alternative for machines in the lower power range
Pros	Good value for money
Product details	Meets all international safety requirements Max. dynamic capacity 540 rpm: 47kW Max. dynamic capacity 1000 rpm: 74kW
Properties	Fulfils all international safety requirements CE marking available
Technical info	- Max. dynamic capacity 540 rpm: 47kW Max. dynamic capacity 1000 rpm: 74kW
Benefits	Cost-effective alternative in lower power range
Connection outside diameter by tractor side	1-3/8 Inch
Connection number of splines/grooves by tractor side	6
Locking type by tractor side	Collar lock
Connection outside diameter by machine side	1-3/8 Inch
Connection number of splines/grooves by machine side	6
Locking type by machine side	Collar lock
Size code	PTO 50
Length	860 mm
Power 540 rpm	47 kW
Power 1000 rpm	74 kW
Cross joint bush diameter by tractor side	30 mm
Cross joint length by tractor side	100 mm
Cross joint bush diameter by machine side	30.2 mm
Cross joint length by machine side	91.4 mm
Additional info	*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
