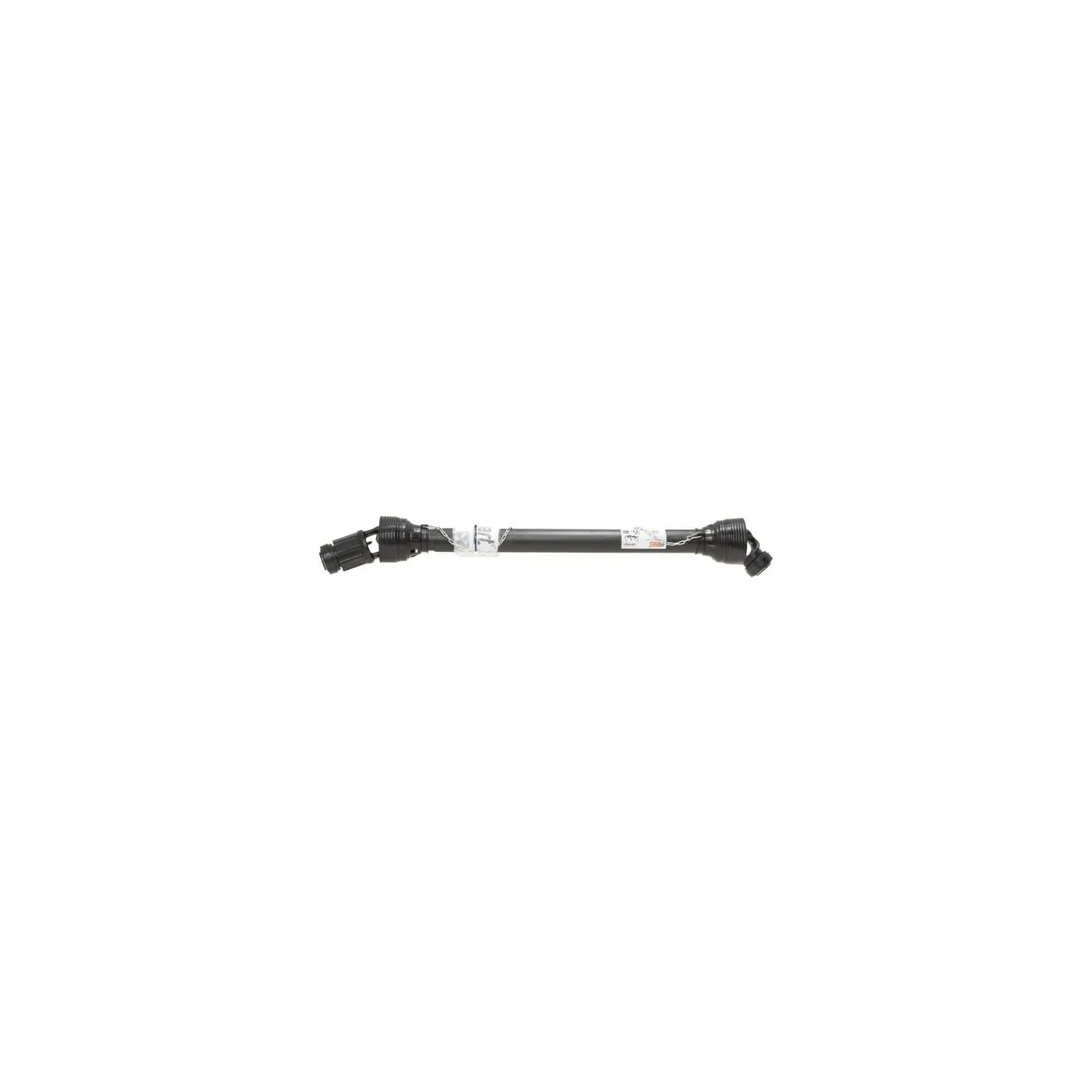

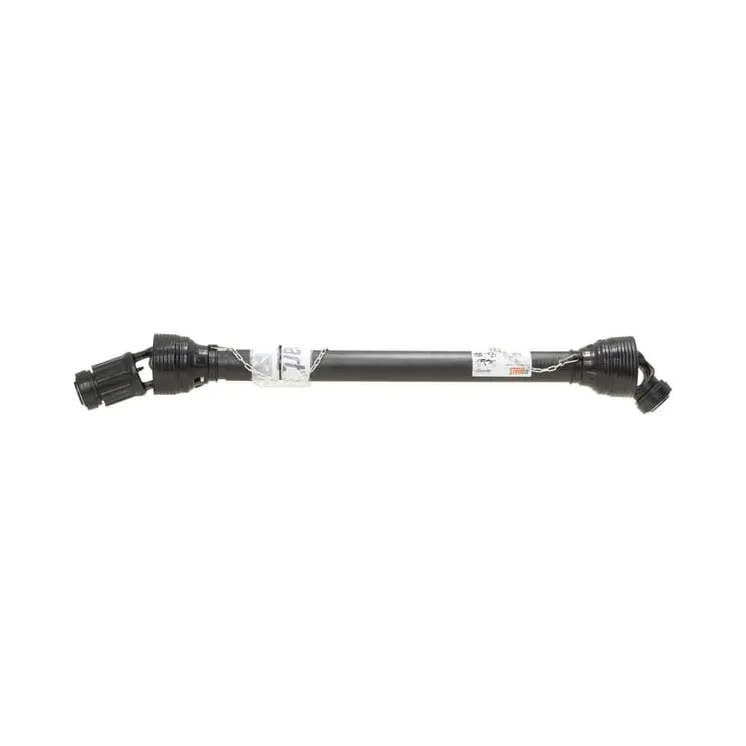

Kardānvārpsta jūgvārpsta 60 L: 1010 mm, PTO60Y21T1010RTGP gopart PTO60T1010RTGP
search
  • Kardānvārpsta jūgvārpsta 60 L: 1010 mm, PTO60Y21T1010RTGP gopart PTO60T1010RTGP

Kardānvārpsta jūgvārpsta 60 L: 1010 mm, PTO60Y21T1010RTGP

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
271,39 €
AR PVN
4-5 Darba dienas
Kardānvārpsta jūgvārpsta 60 L: 1010 mm, PTO60Y21T1010RTGP gopart PTO60T1010RTGP
IR NOLIKTAVĀ

31243

  • Zīmols
  • Norāde
    PTO60Y21T1010RTGP
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    PTO60T1010RTGP
  • EAN
    8719493070194
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
PTO60Y21T1010RTGP
EAN8719493070194
Unit
Each
Long description
PTO shafts with attached radial pin clutches suitable for various agricultural machines
Pros
  • Cost-effective alternative in lower power range
  • Meets all international safety requirements
Product details
  • PTO20
  • Max. dynamic capacity 540 rpm: 15kW
  • Max. dynamic capacity 1000 rpm: 23kW
  • PTO40
  • Max. dynamic capacity 540 rpm: 26kW
  • Max. dynamic capacity 1000 rpm: 40kW
  • PTO50
  • Max. dynamic capacity 540 rpm: 35kW
  • Max. dynamic capacity 1000 rpm: 54kW
  • PTO60
  • Max. dynamic capacity 540 rpm: 47kW
  • Max. dynamic capacity 1000 rpm: 74kW
Properties
Fulfils all international safety requirements
Technical info
  • PTO20
  • Max. dynamic capacity 540 rpm: 15 kW
  • Max. dynamic capacity 1000 rpm: 23 kW
  • PTO40
  • Max. dynamic capacity 540 rpm: 26 kW
  • Max. dynamic capacity 1000 rpm: 40 kW
  • PTO50
  • Max. dynamic capacity 540 rpm: 35 kW
  • Max. dynamic capacity 1000 rpm: 54 kW
  • PTO60
  • Max. dynamic capacity 540 rpm: 47kW
  • Max. dynamic capacity 1000 rpm:74kW
Benefits
Cost-effective alternative in lower power range
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Radial pin clutch
Size code
PTO 60
Power 540 rpm
47 kW
Power 1000 rpm
74 kW
Cross joint bush diameter by tractor side
30.2 mm
Cross joint length by tractor side
91.4 mm
Cross joint bush diameter by machine side
30.2 mm
Cross joint length by machine side
91.4 mm
Clutch type
n/a
Max. clutch torque
1200 N·m
Outer tube wall thickness
4 mm
Outer tube large outside diameter
54 mm
Inner tube wall thickness
5.5 mm
Inner tube large outside diameter
45 mm
Profile tube shape
Triangular
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
