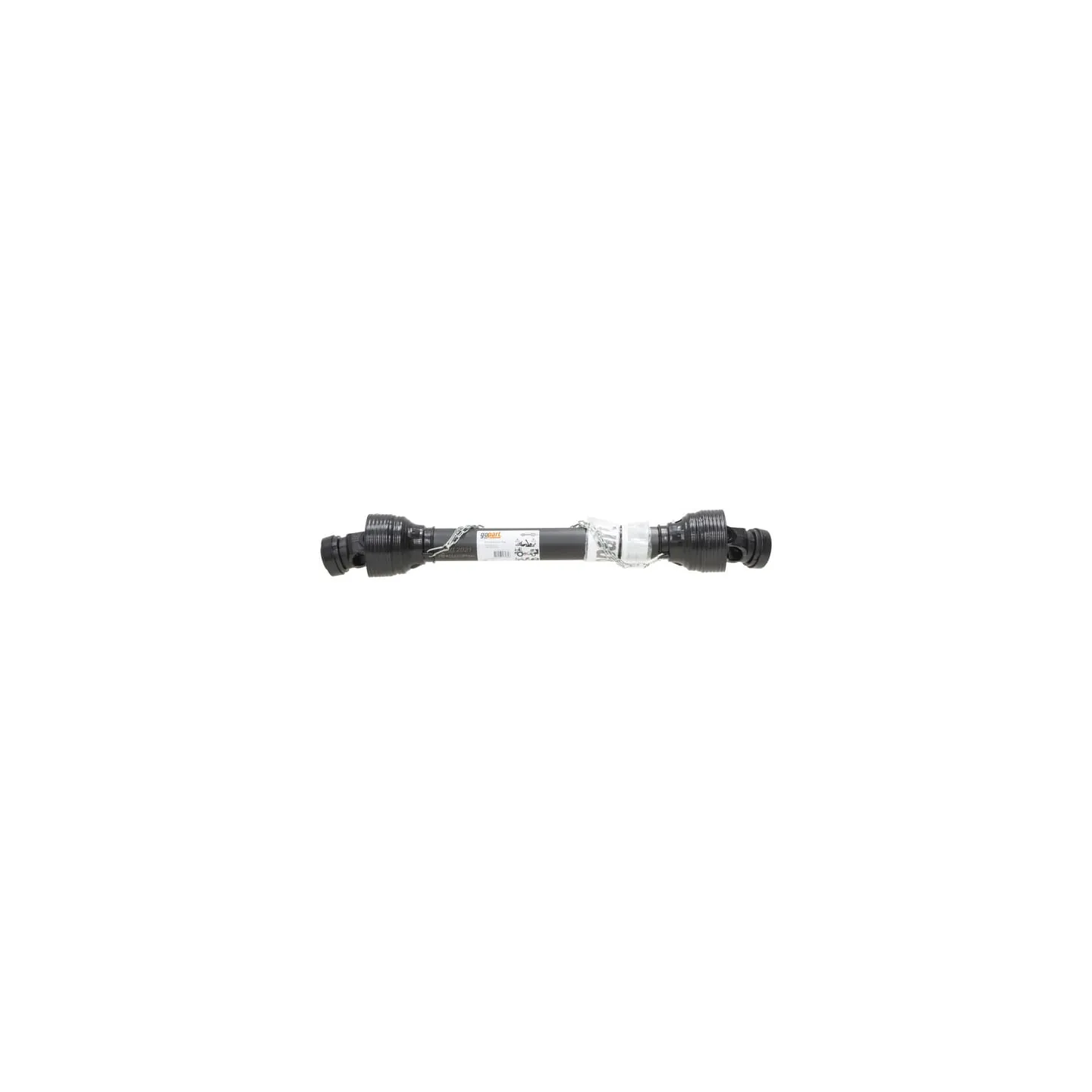

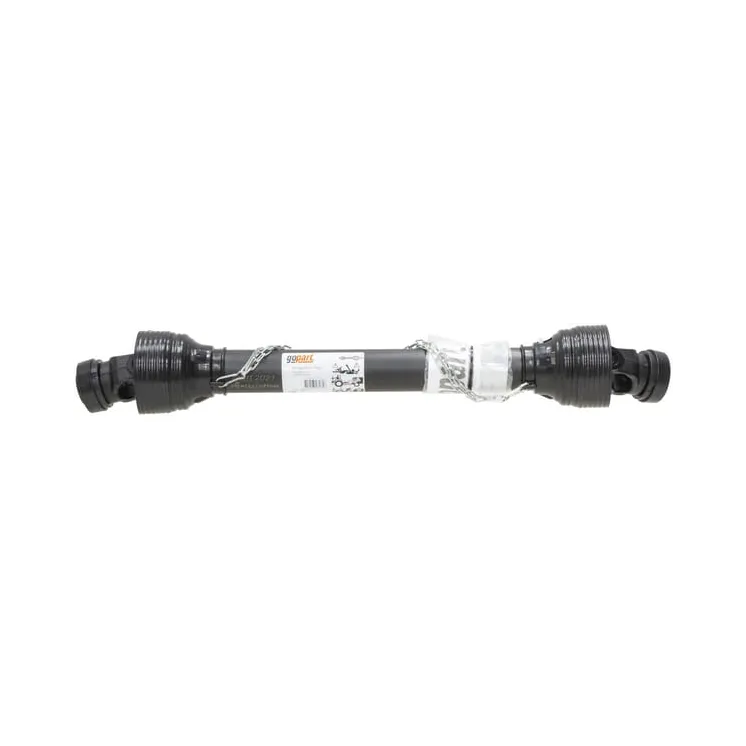

Kardānvārpsta jūgvārpsta 40 L: 1210 mm, PTO40Y21T1210GP gopart PTO40T1210GP
search
  • Kardānvārpsta jūgvārpsta 40 L: 1210 mm, PTO40Y21T1210GP gopart PTO40T1210GP

Kardānvārpsta jūgvārpsta 40 L: 1210 mm, PTO40Y21T1210GP

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
134,16 €
AR PVN
4-5 Darba dienas
Kardānvārpsta jūgvārpsta 40 L: 1210 mm, PTO40Y21T1210GP gopart PTO40T1210GP
IR NOLIKTAVĀ

31273

  • Zīmols
  • Norāde
    PTO40Y21T1210GP
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    PTO40T1210GP
  • EAN
    8719493075069
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
PTO40Y21T1210GP
EAN8719493075069
Unit
Each
Long description
PTO shafts standard series 40 cost-effective alternative in the lower power range and suitable for log splitters, crop sprayers, fertiliser spreaders, manure spreaders etc.
Details
Good price/performance ratio
Pros
Good value for money
Product details
  • Meets all international safety requirements
  • Provided with "CE" marking
  • Max. dyn. power 540 rpm: 26kW - 460Nm
  • Max. dyn. Power 1000 rpm: 40kW - 380Nm
Application range
  • Wood splitter
  • Crop sprayer
  • Chemical fertiliser spreaders
  • Fertiliser spreaders
Properties
  • Fulfils all international safety requirements
  • CE marking available
Technical info
  • Max. dynamic capacity 540 rpm: 26 kW, 460 Nm
  • Max. dynamic capacity 1000 rpm: 40 kW, 380 Nm
Benefits
Cost-effective alternative in lower capacity range
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Attachment machine side
Quick disconnect yoke
Size code
PTO 40
Power 540 rpm
26 kW
Power 1000 rpm
40 kW
Cross joint bush diameter by tractor side
27 mm
Cross joint length by tractor side
74.6 mm
Cross joint bush diameter by machine side
27 mm
Cross joint length by machine side
74.6 mm
Clutch type
n/a
Outer tube wall thickness
3.4 mm
Outer tube large outside diameter
43.5 mm
Inner tube wall thickness
4.5 mm
Inner tube large outside diameter
36 mm
Profile tube shape
Triangular
Max dynamic torque
780 N·m
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
