| Part number | PTO20Y21T1310ARTGP | |
|---|---|---|
| EAN | 8719493073942 | |
| Unit | Each | |

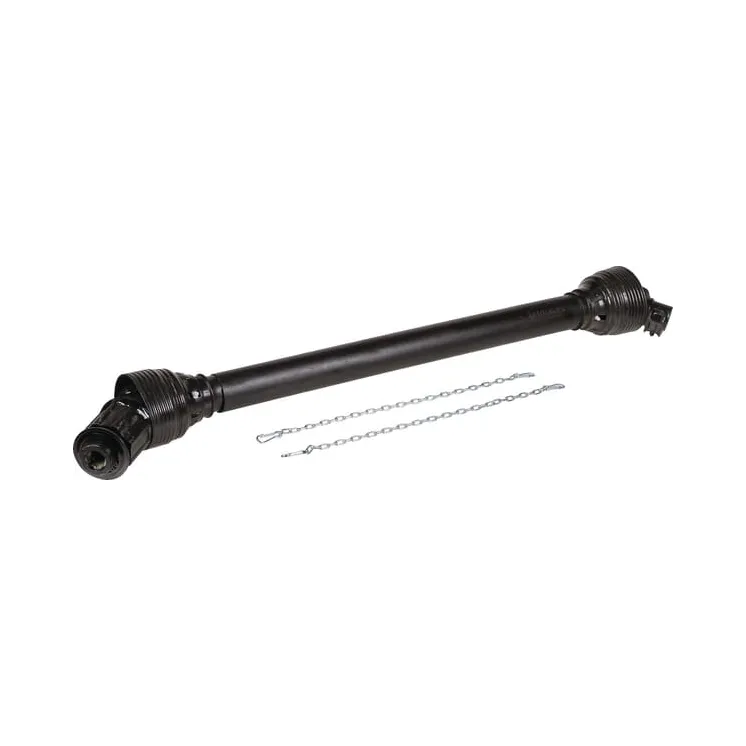

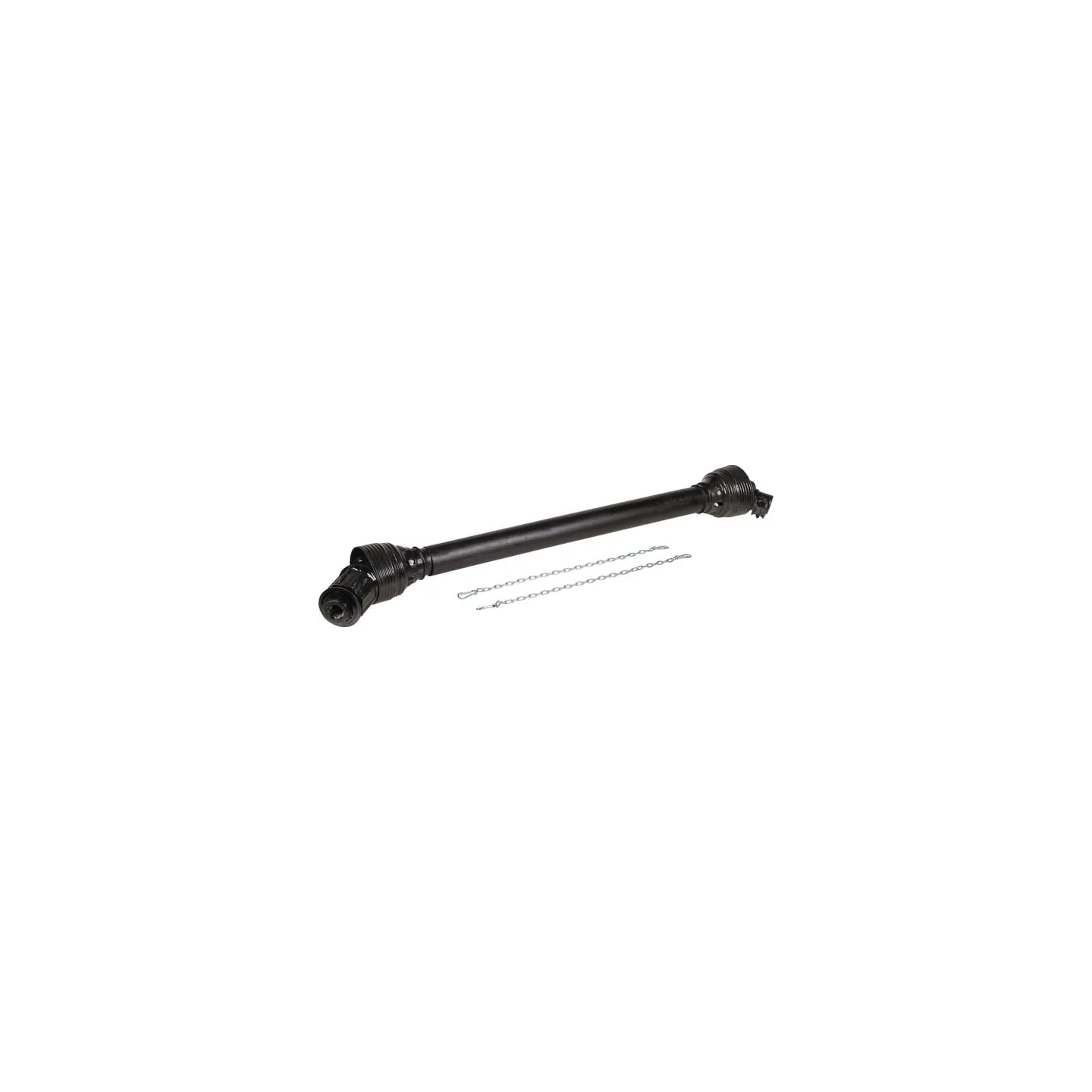

| Long description | PTO shafts with attached radial pin clutches suitable for various agricultural machines | |
| Pros |
| |
| Product details |
| |
| Properties | Fulfils all international safety requirements | |
| Technical info |
| |
| Benefits | Cost-effective alternative in lower power range | |
| Connection outside diameter by tractor side | 1-3/8 Inch | |
| Connection number of splines/grooves by tractor side | 6 | |
| Locking type by tractor side | Collar lock | |
| Attachment tractor side | Quick disconnect yoke | |
| Connection outside diameter by machine side | 1-3/8 Inch | |
| Connection number of splines/grooves by machine side | 6 | |
| Locking type by machine side | Collar lock | |
| Attachment machine side | Radial pin clutch | |
| Size code | PTO 20 | |
| Power 540 rpm | 15 kW | |
| Power 1000 rpm | 23 kW | |
| Cross joint bush diameter by tractor side | 23.8 mm | |
| Cross joint length by tractor side | 61.3 mm | |
| Cross joint bush diameter by machine side | 23.8 mm | |
| Cross joint length by machine side | 61.3 mm | |
| Clutch type | n/a | |
| Max. clutch torque | 900 N·m | |
| Outer tube wall thickness | 3.4 mm | |
| Outer tube large outside diameter | 43.5 mm | |
| Inner tube wall thickness | 3.2 mm | |
| Inner tube large outside diameter | 36 mm | |
| Profile tube shape | Triangular | |
| Max dynamic torque | 450 N·m |
