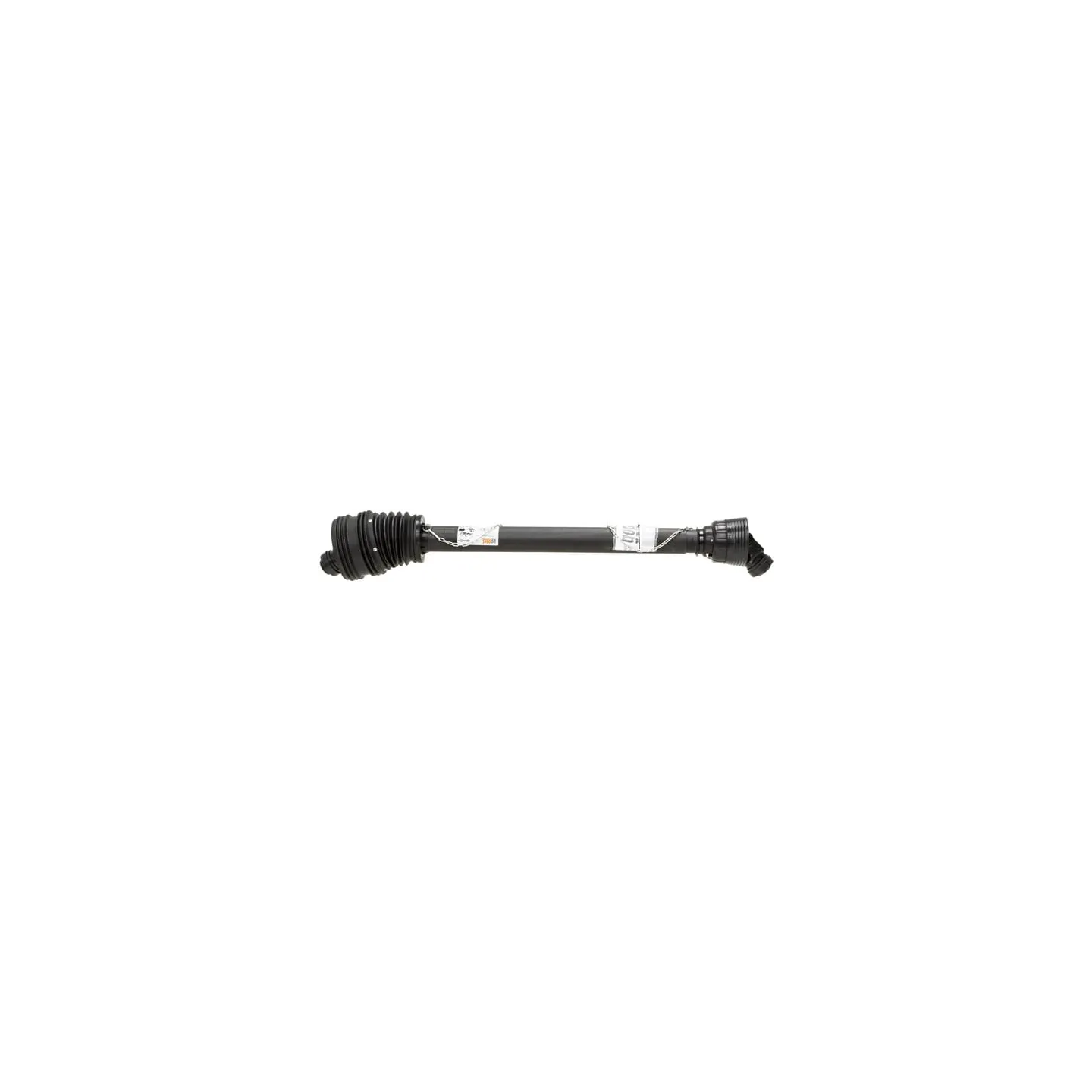

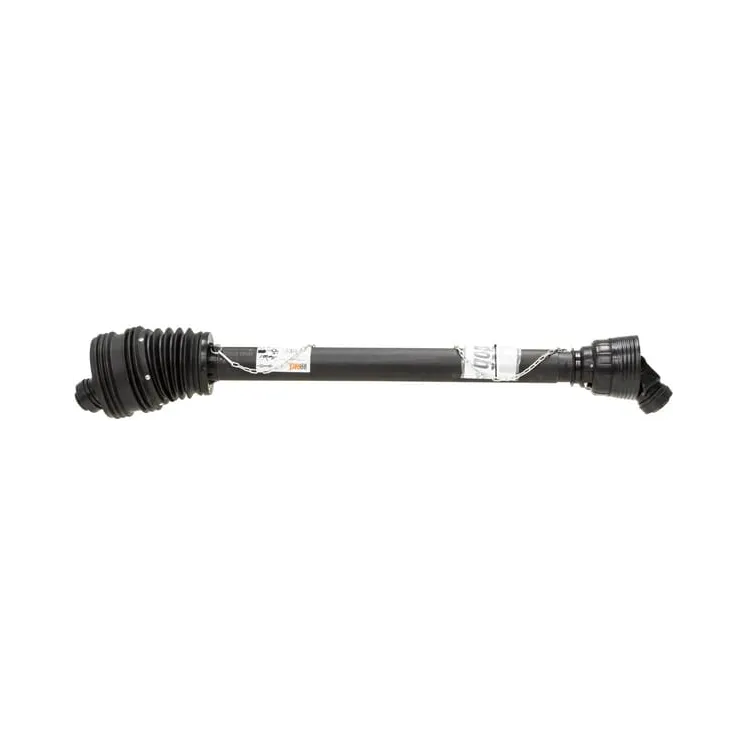

Platleņķa kardānvārpsta jūgvārpsta 20 L: 1010mm, PTO20Y22TWS1010GP gopart PTO20TWS1010GP PTO20Y21TWS1010GP
search
  • Platleņķa kardānvārpsta jūgvārpsta 20 L: 1010mm, PTO20Y22TWS1010GP gopart PTO20TWS1010GP PTO20Y21TWS1010GP

Platleņķa kardānvārpsta jūgvārpsta 20 L: 1010mm, PTO20Y22TWS1010GP

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
307,59 €
AR PVN
4-5 Darba dienas
Platleņķa kardānvārpsta jūgvārpsta 20 L: 1010mm, PTO20Y22TWS1010GP gopart PTO20TWS1010GP PTO20Y21TWS1010GP
IR NOLIKTAVĀ

31347

  • Zīmols
  • Norāde
    PTO20Y22TWS1010GP
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    PTO20TWS1010GP PTO20Y21TWS1010GP
  • EAN
    8719493114218
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
PTO20Y22TWS1010GP
EAN8719493114218
Unit
Each
Long description
Cost-effective alternative in the lower power range and suitable for log splitters, crop sprayers, fertiliser spreaders, manure spreaders etc.
Pros
Cost-effective alternative in lower power range
Product details
  • Max. dynamic capacity 540 rpm: 15kW
  • Max. dynamic capacity 1000 rpm: 23kW
  • The crossjoint side has a different build size
  • The right accessories can be found under spare parts and accessories
  • Meets all international safety requirements
  • Provided with "CE" marking
Application range
  • Slurry tanks
  • Crop sprayers
  • Fertiliser spreaders
  • Hay baler
Properties
  • Fulfils all international safety requirements
  • CE marking available
Technical info
  • Max. dynamic capacity at 540 rpm: 15 kW
  • Max. dynamic capacity at 1000 rpm: 23 kW
  • The cross coupling side varies in size
  • Matching accessories can be found under Spare parts and accessories
Benefits
Cost-effective alternative in lower power range
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Locking type by tractor side
Collar lock
Connection outside diameter by machine side
1-3/8 Inch
Connection number of splines/grooves by machine side
6
Locking type by machine side
Collar lock
Size code
PTO 20
Length
1010 mm
Power 540 rpm
15 kW
Power 1000 rpm
23 kW
Cross joint bush diameter by tractor side - longer part
22 mm
Cross joint bush diameter by tractor side
23.8 mm
Cross joint length by tractor side - longer part
75.7 mm
Cross joint length by tractor side
61.4 mm
Cross joint bush diameter by machine side
23.8 mm
Cross joint length by machine side
61.4 mm
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
