Kardānvārpsta jūgvārpsta 20 L: 1210 mm, PTO20Y21T1210Y30GP gopart PTO20T1210Y30GP
search
  • Kardānvārpsta jūgvārpsta 20 L: 1210 mm, PTO20Y21T1210Y30GP gopart PTO20T1210Y30GP

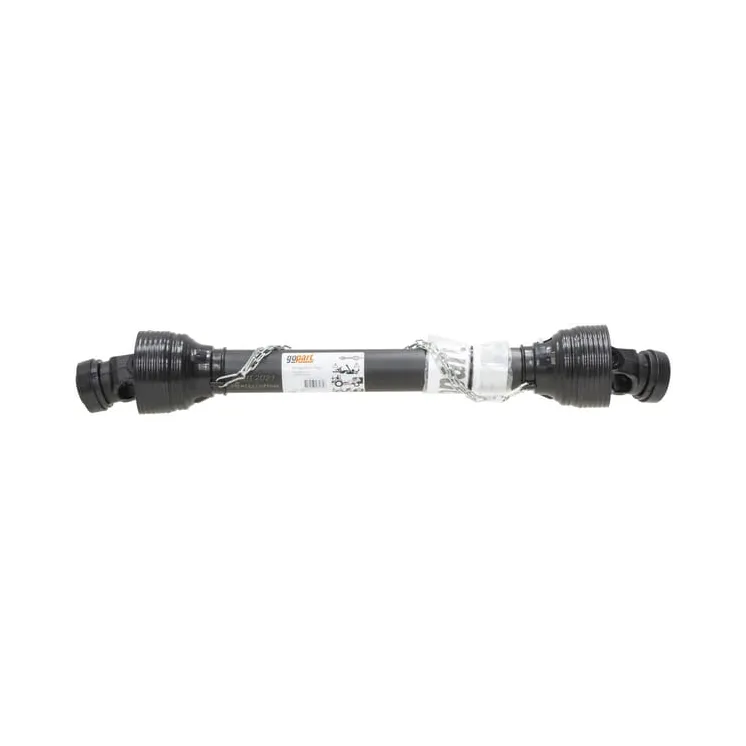

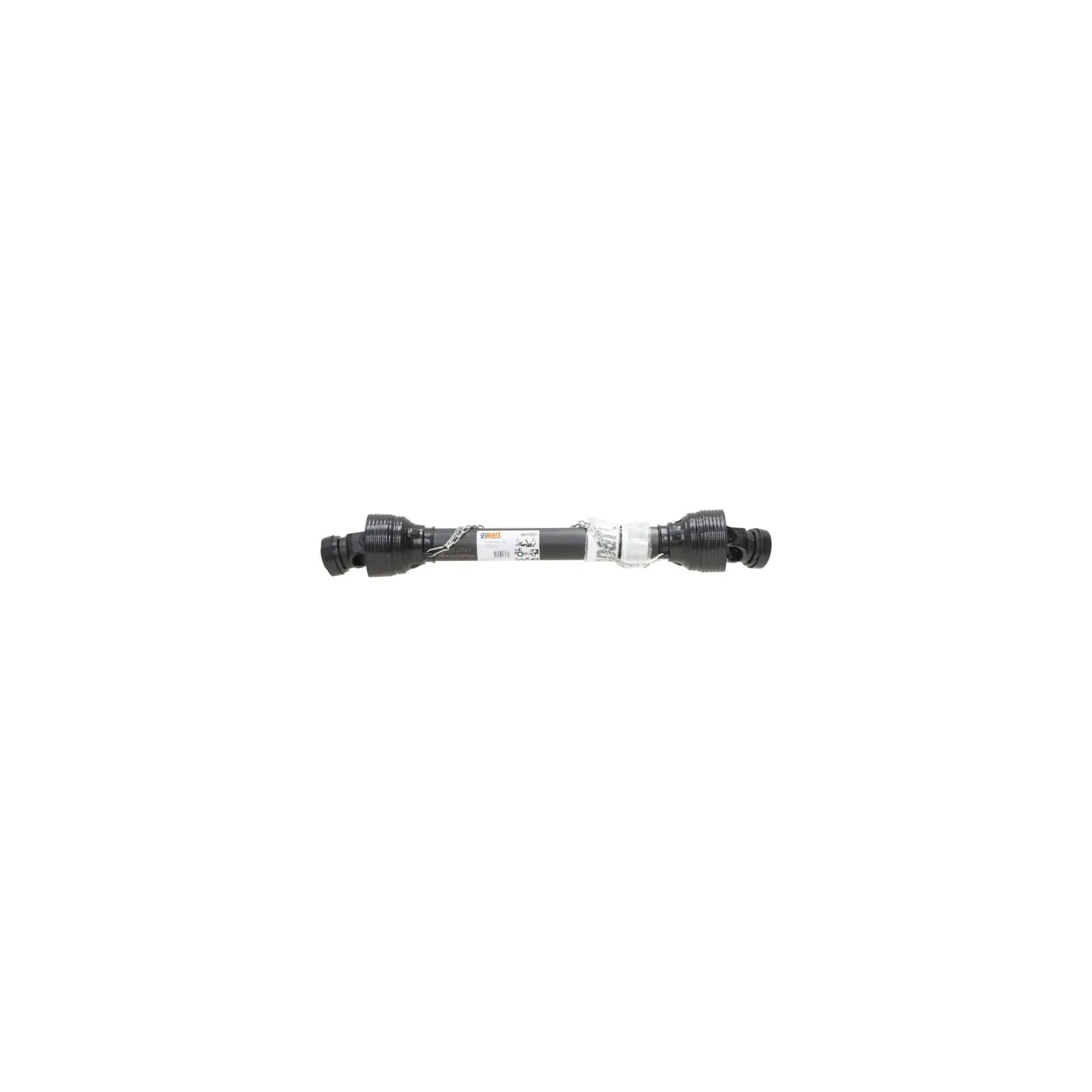

Kardānvārpsta jūgvārpsta 20 L: 1210 mm, PTO20Y21T1210Y30GP

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
125,97 €
AR PVN
4-5 Darba dienas
Kardānvārpsta jūgvārpsta 20 L: 1210 mm, PTO20Y21T1210Y30GP gopart PTO20T1210Y30GP
IR NOLIKTAVĀ

31373

  • Zīmols
  • Norāde
    PTO20Y21T1210Y30GP
  • Pieejamās vispirms
    5 vienības:
  • Stāvoklis
    Jauns
  • Citi kodi
    PTO20T1210Y30GP
  • EAN
    8719493067750
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
PTO20Y21T1210Y30GP
EAN8719493067750
Unit
Each
Long description
  • PTO shafts standard series 20 for log splitters, crop sprayers and fertiliser spreaders etc.
  • A cost-effective alternative in the lower power range
Details
Good price/performance ratio
Pros
Good value for money
Product details
  • Meets all international safety requirements
  • Provided with "CE" marking
  • Max. dyn. power 540 rpm: 15kW - 265Nm
  • Max. dyn. Power 1000 rpm: 23kW - 220Nm
Application range
  • Wood splitter
  • Crop sprayer
  • Chemical fertiliser spreaders
Properties
  • Fulfils all international safety requirements
  • CE marking available
Technical info
  • Max. dynamic capacity 540 rpm: 15 kW, 265 Nm
  • Max. dynamic capacity 1000 rpm: 23 kW, 220 Nm
Benefits
Cost-effective alternative in lower capacity range
Connection outside diameter by tractor side
1-3/8 Inch
Connection number of splines/grooves by tractor side
6
Locking type by tractor side
Collar lock
Attachment tractor side
Quick disconnect yoke
Connection outside diameter by machine side
30 mm
Connection inside diameter by machine side
30 mm
Connection number of splines/grooves by machine side
1
Connection diameter tolerance code by machine side
H8
Locking type by machine side
Clamp bolt (non interfering)
Attachment machine side
Clamp yoke
Size code
PTO 20
Power 540 rpm
15 kW
Power 1000 rpm
23 kW
Cross joint bush diameter by tractor side
23.8 mm
Cross joint length by tractor side
61.3 mm
Cross joint bush diameter by machine side
23.8 mm
Cross joint length by machine side
61.3 mm
Clutch type
n/a
Outer tube wall thickness
3.4 mm
Outer tube large outside diameter
43.5 mm
Inner tube wall thickness
3.2 mm
Inner tube large outside diameter
36 mm
Profile tube shape
Triangular
Max dynamic torque
450 N·m
