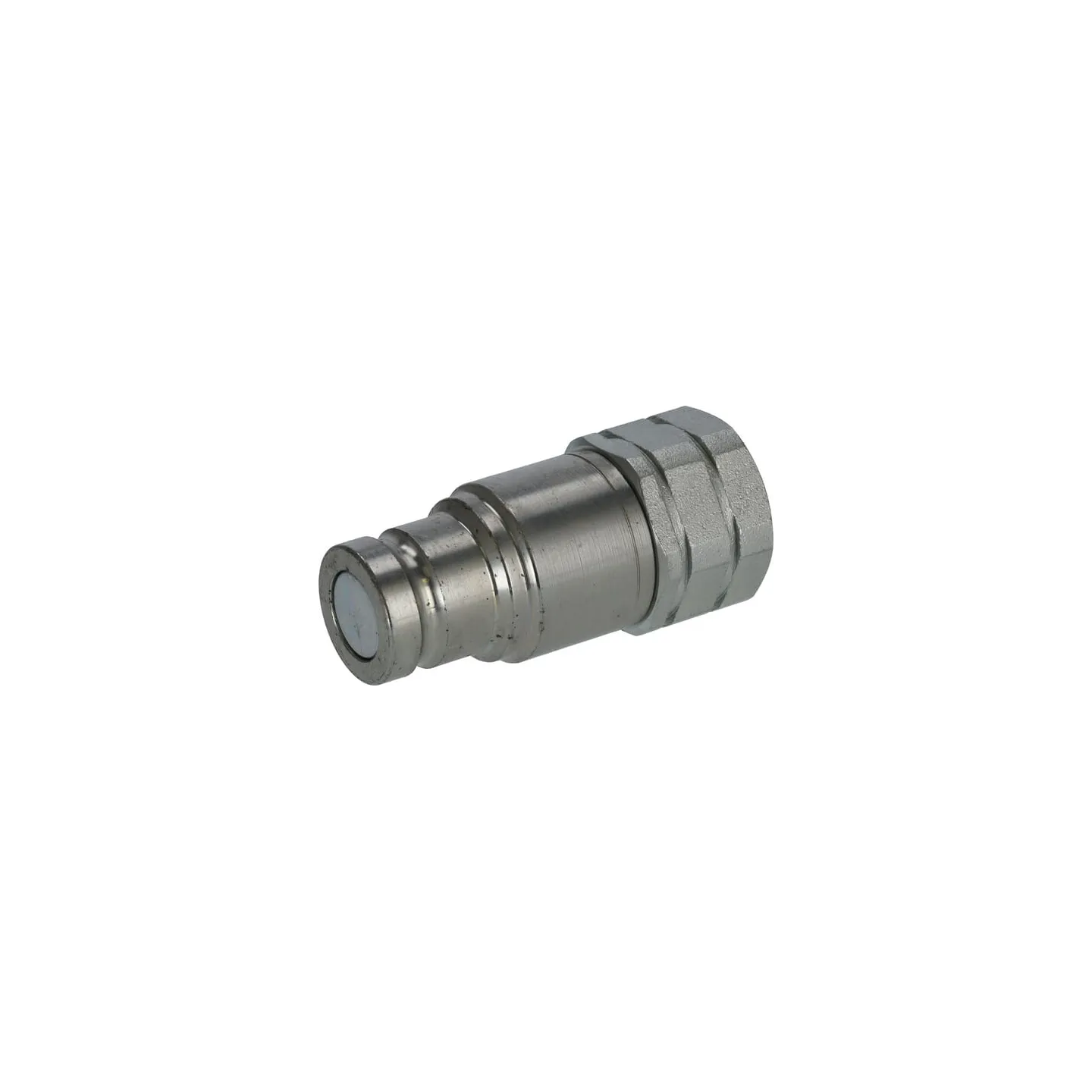

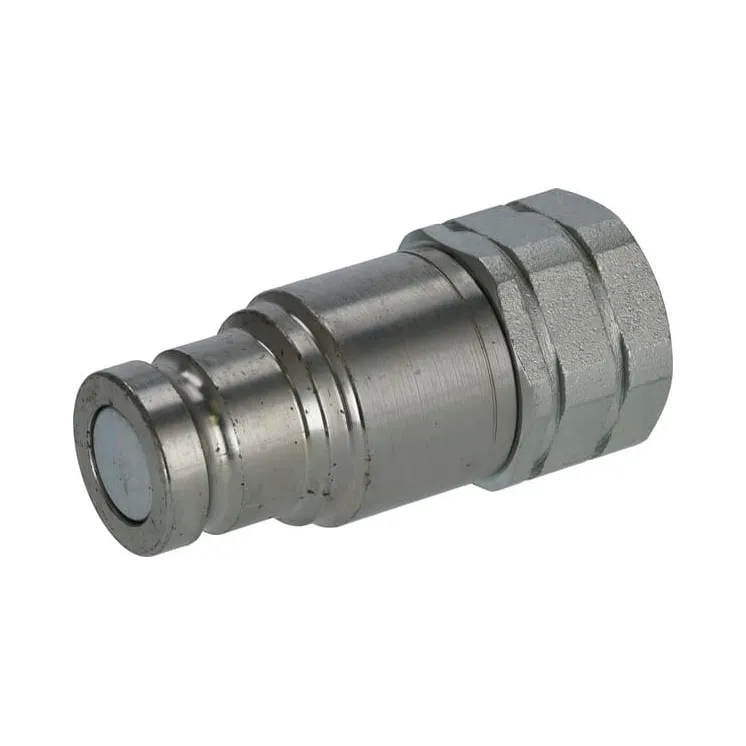

Ātrās atvienošanas sakabe Male 3/8 - 3/8 BSP SKVM10C06N

Name: Ātrās atvienošanas sakabe Male 3/8 - 3/8 BSP SKVM10C06N
Brand: GoPart
SKU: SKVM10C06N
Price: 13.67 EUR
Availability: InStock

Apmaksas iespējas

13,67 €

AR PVN

4-5 Darba dienas

Ātrās atvienošanas sakabe Male 3/8 - 3/8 BSP SKVM10C06N gopart

IR NOLIKTAVĀ

ID: 31468

Apraksts

Part number	SKVM10C06N
EAN	8719493094770
Unit	Each
Details	One-handed coupling With special flat valve
Application range	Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids
Properties	Locks on both sides
Benefits	User-friendly Low leakage No air pockets during coupling
Shape	Straight - 2 connection sides
Connection no 1 type	Quick coupling
Connection no 1 type - male/female	Male
Ã˜D1Connection no 1 diameter	12 mm
L2Connection no 1 length	40.6 mm
Size code	BG 2
Body size	3/8 Inch
Connection 2, type	Thread
Connection 2, type - male/female	Female
Connection 2, thread diameter	3/8 Inch
Connection 2, threads per inch	19
Connection 2, thread type	BSP
Connectable under pressure	No
Ã˜DOutside diameter	27 mm
L1Total length	59.5 mm
Material	Steel
Max working temperature	100 Â°C
Min. working temperature	-20 Â°C
Seal material	Nitrile rubber [NBR] Teflon (PTFE)
