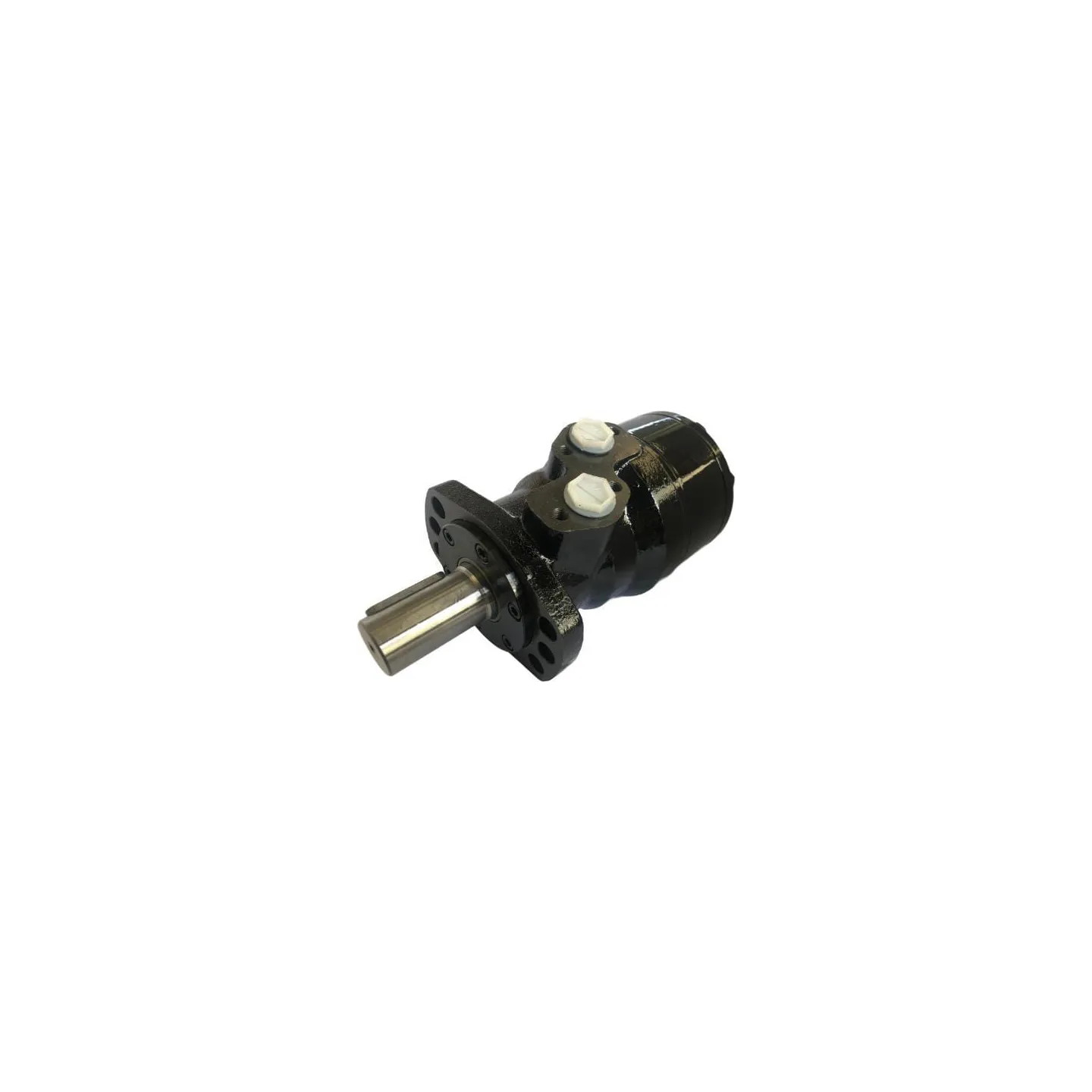

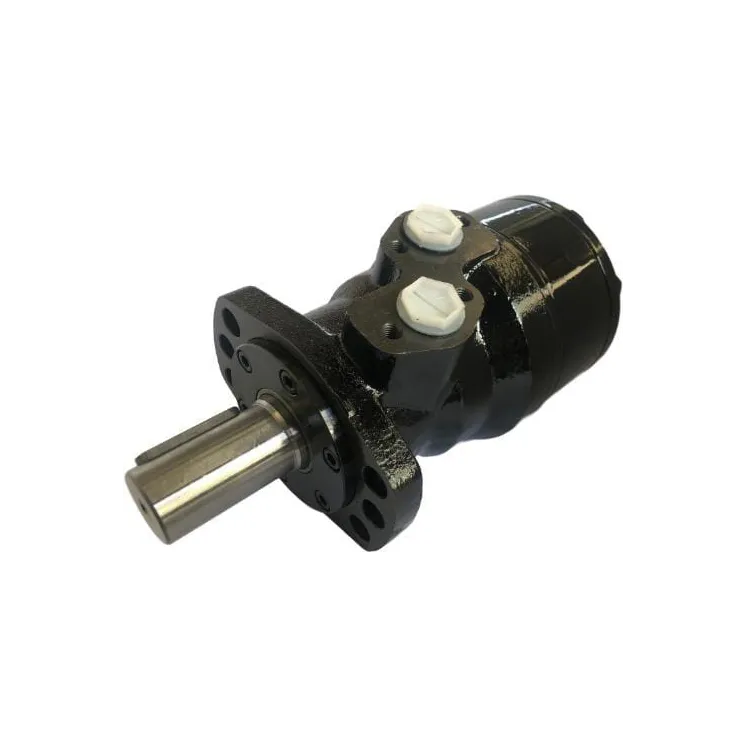

Orbit motors 500cc, SMH500A432YGP

Name: Orbit motors 500cc, SMH500A432YGP
Brand: GoPart
SKU: SMH500A432YGP
Price: 170.09 EUR
Availability: BackOrder

Apmaksas iespējas

170,09 €

AR PVN

Pēc pieprasījuma

Orbit motors 500cc, SMH500A432YGP gopart SMH5004BD SMH5004BDGP

Uz pasūtījumu

ID: 31509

Apraksts

Part number	SMH500A432YGP
EAN	8719493051872
Unit	Each
Long description	Orbital motor type SMH / gopart
Details	High axial, radial axle load and a high torque Low wear
Application range	Can be used wherever a high torque and low speeds are required Also suitable for continuous reversal of rotation Can be used continuously in high pressure conditions
Properties	Roller construction Wide shaft slip bearing From the medium-sized orbit motors series With leakage oil drain Compact and extremely robust construction
Benefits	Good price/performance ratio Long service life
Number of mounting holes	6
Shaft type	Straight parallel
Shaft diameter	32 mm
Displacement	500 cmÂ³/rev
Max continuous torque	508 NÂ·m
Max. continous working pressure	85 BAR
Max intermittend working pressure	100 BAR
Max pressure peak	130 BAR
Max. flow rate	75 l/min
Max rotation speed	155 r/min
Min rotation speed	10 r/min
Main port thread diameter	1/2 Inch
Main port thread type	G
Drain port thread diameter	1/4 Inch
Drain port thread type	G
L1Rotor length	65 mm
Max. power	8.5 kW
LHousing length	214 mm
