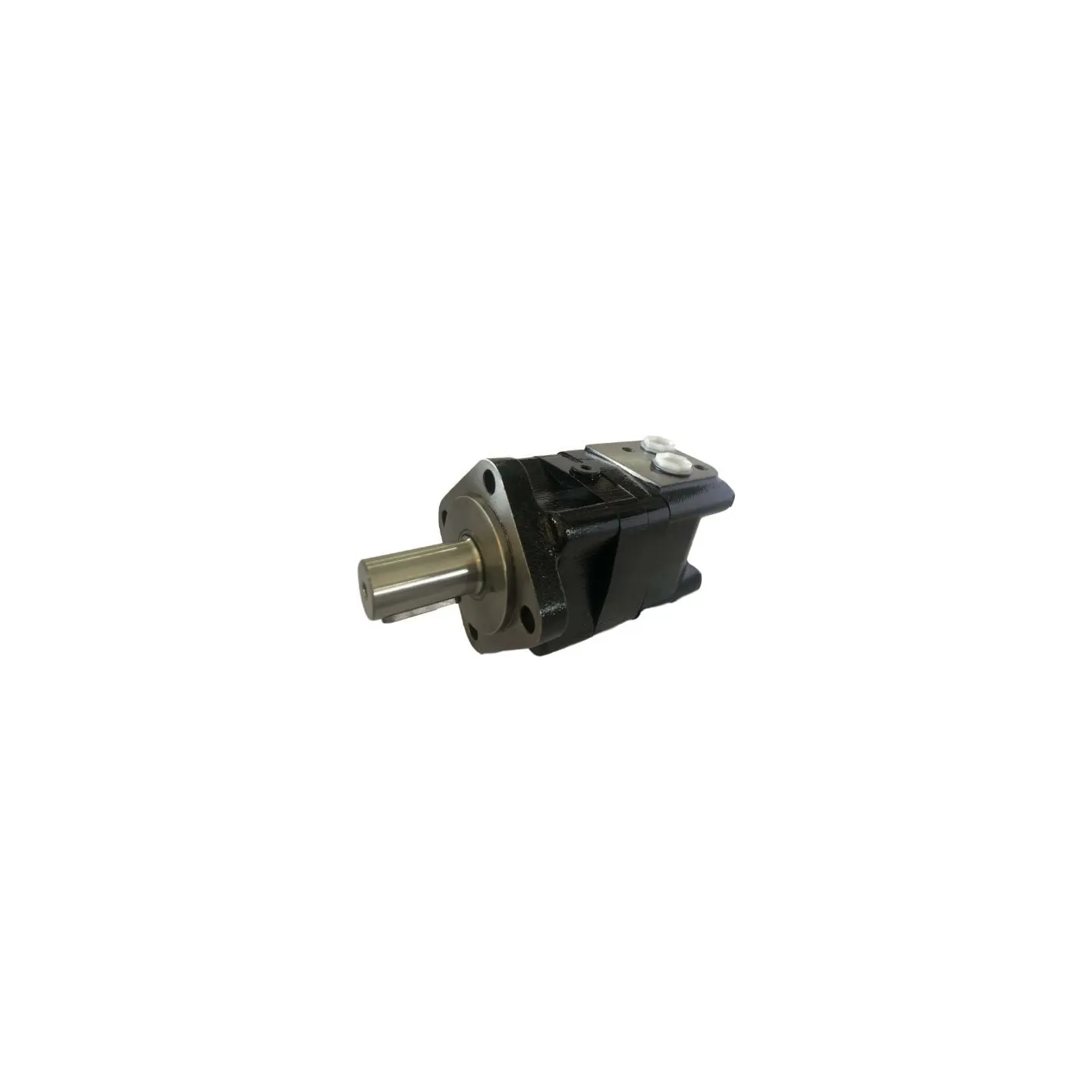

Orbit motors 315cc, SMS315A432YGP

Name: Orbit motors 315cc, SMS315A432YGP
Brand: GoPart
SKU: SMS315A432YGP
Price: 193.41 EUR
Availability: BackOrder

Apmaksas iespējas

193,41 €

AR PVN

Pēc pieprasījuma

Orbit motors 315cc, SMS315A432YGP gopart B480SMS315E4BDSP SMS315E432D00 SMS315E432D00GP

Uz pasūtījumu

ID: 31526

Apraksts

Produkta detaļas

Datu lapa

Apmaksa
100% Droši maksājumi

Piegāde
Ātri piegādes risinājumi

Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.

Part number	SMS315A432YGP
EAN	8719493060621
Unit	Each
Long description	Orbital motor type SMS / gopart
Details	High axial, radial axle load and a high torque Runs very quietly at low speeds
Application range	Can be used wherever a high torque and low speeds are required Also suitable for continuous reversal of rotation Can be used continuously in high pressure conditions
Properties	With leakage oil drain Roller construction Tapered roller bearing From the large orbit motors series Robust and compact construction Excellent starting characteristics
Benefits	Good price/performance ratio Minimal loss of power
Flange shape	Square
Flange code	SAE-A
Number of mounting holes	4
Shaft type	Straight parallel
Shaft diameter	32 mm
Displacement	315 cmÂ³/rev
Max continuous torque	551 NÂ·m
Max. continous working pressure	125 BAR
Max intermittend working pressure	160 BAR
Max pressure peak	200 BAR
Max. flow rate	75 l/min
Max rotation speed	240 r/min
Min rotation speed	5 r/min
Main port thread diameter	1/2 Inch
Main port thread type	G
Drain port thread diameter	1/4 Inch
Drain port thread type	G
Port position	Side
L1Rotor length	53 mm
Max. power	10 kW
L2Main port center to front flange distance	166 mm
LHousing length	209 mm
